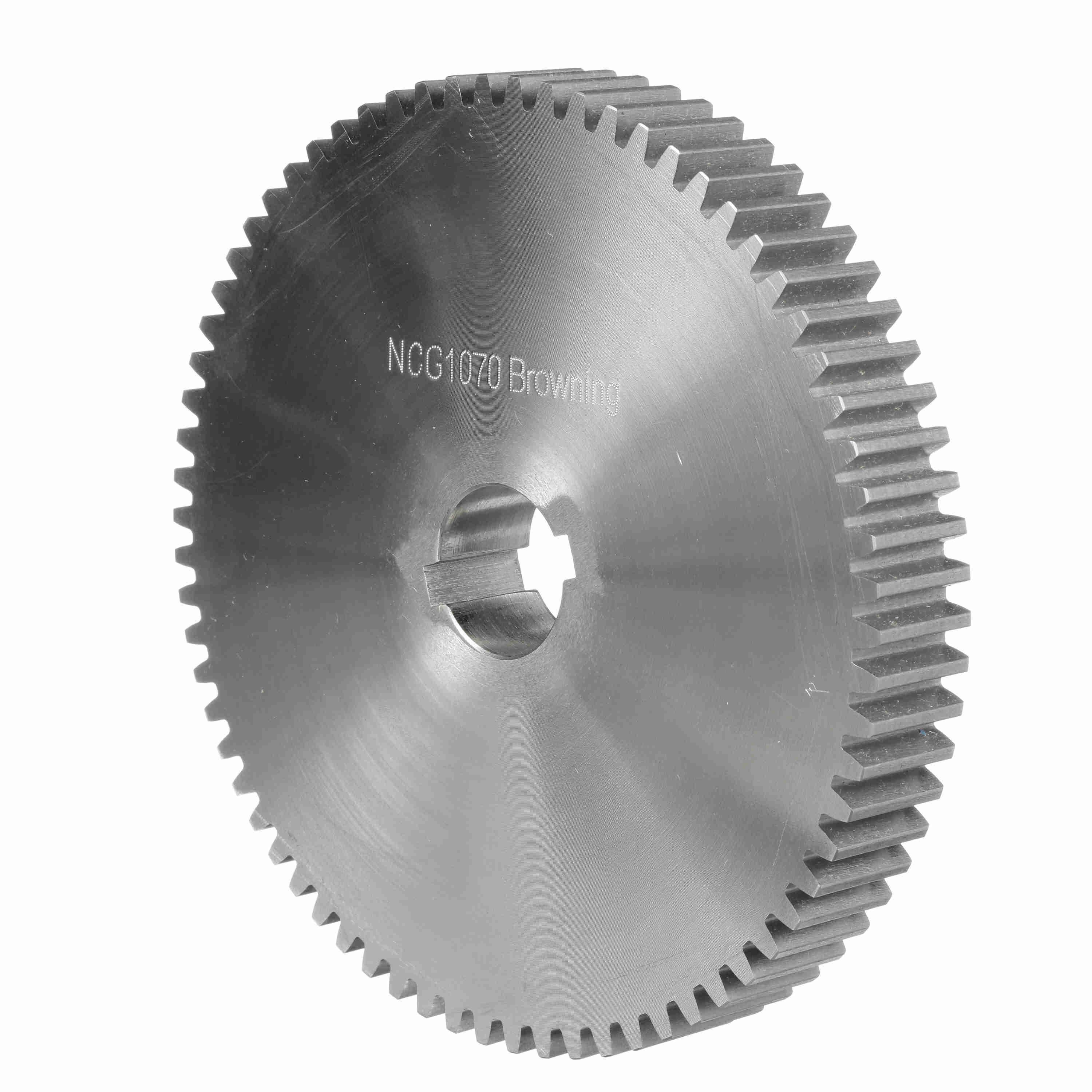

Browning® 1224781 Minimum Plain Bore Type C1 Change Gear, 10 Diametral Pitch, 14.5 deg Pressure Angle, 1 in W Face, 70 Teeth, 7 in Dia Pitch, 1-1/4 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289151332
-
Manufacturer Part Number1224781
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter7 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type C1
-
Diametral Pitch10
-
Number of Teeth70
-
Outside Diameter7.2 in
-
Bore Diameter1-1/4 in
-
Overall Length1 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCG1070
-
UNSPSC31171700
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
