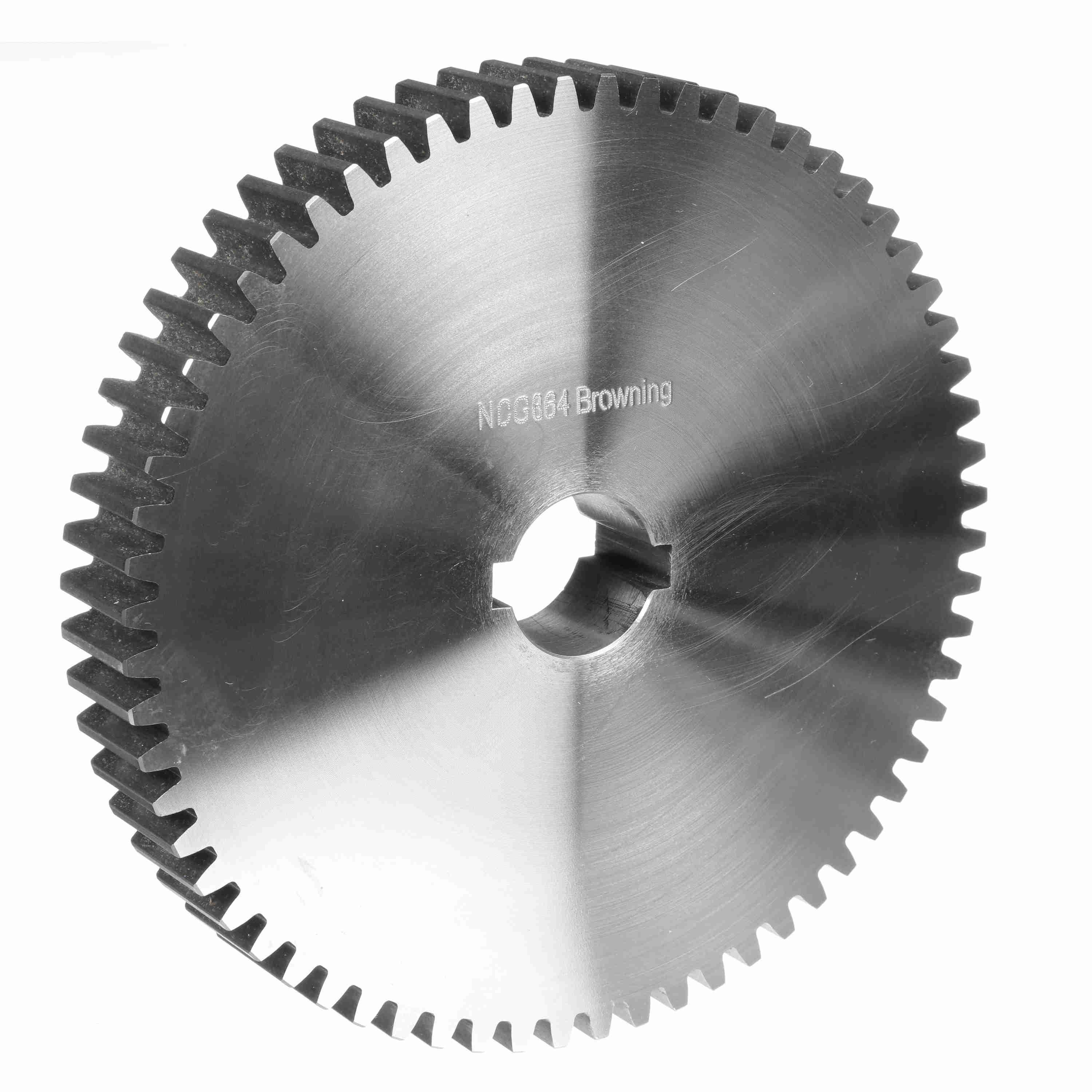

Browning® 1225499 Minimum Plain Bore Type C1 Change Gear, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 66 Teeth, 8-1/4 in Dia Pitch, 1-3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289252176
-
Manufacturer Part Number1225499
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter8-1/4 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type C1
-
Diametral Pitch8
-
Number of Teeth66
-
Outside Diameter8-1/2 in
-
Bore Diameter1-3/8 in
-
Overall Length1-1/4 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCG866
-
UNSPSC31171700
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
