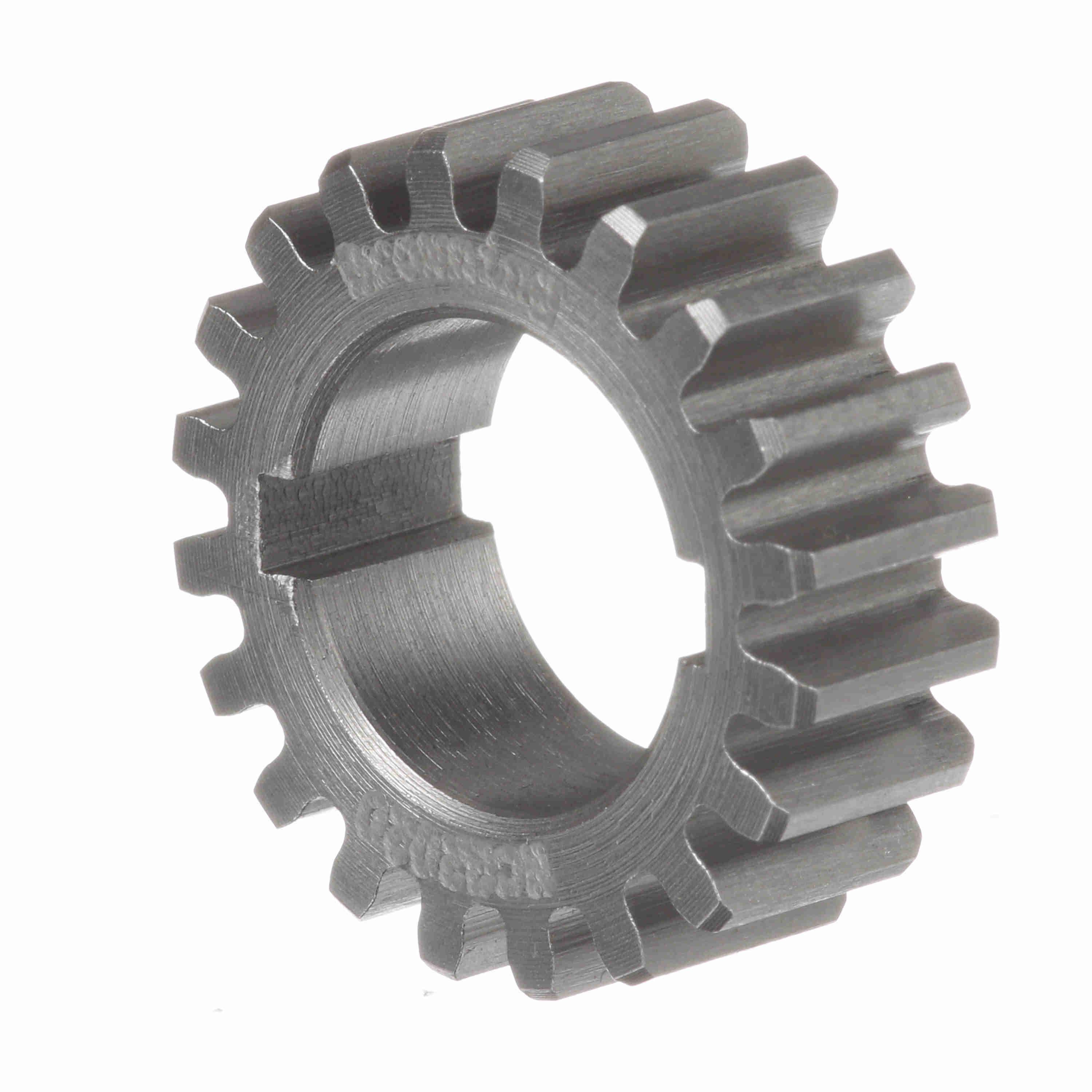

Browning® 1221704 Minimum Plain Bore Type C1 Change Gear, 20 Diametral Pitch, 14.5 deg Pressure Angle, 3/8 in W Face, 20 Teeth, 1 in Dia Pitch, 5/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289228010
-
Manufacturer Part Number1221704
-
CountryUSA
-
Face Width3/8 in
-
Pitch Diameter1 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type C1
-
Diametral Pitch20
-
Number of Teeth20
-
Outside Diameter1.1 in
-
Bore Diameter5/8 in
-
Overall Length3/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCG2020
-
UNSPSC31171700
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
