Browning® 1251370 Straight Type LR Bevel Gear Reducer, Shaft Input, Shaft Output, 1 hp, 1:1 Gear, 1750 rpm Maximum Output, 36.013 in-lb Input/28.82 in-lb Output Torque Rating

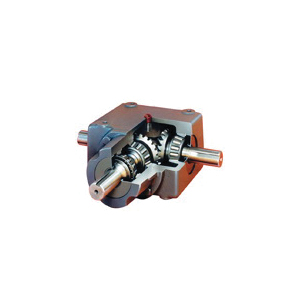

Browning® cast iron bevel and spiral bevel gear reducers are constructed of rugged cast iron housings. These housings are line bored for precise gear and bearing alignment. To offer maximum performance, these reducers are designed with tapered roller and ball bearings. Browning® cast iron bevel and spiral bevel gear reducers are available in six sizes and ratios. These range from 1:1 to 3:1, with speed-up ratios available. Torque capacity ranges from 99 to 5942 in-lb.
-
BrandBrowning®
-
UPC662289170272
-
Manufacturer Part Number1251370
-
CountryUSA
-
Centre Distance2-1/8 in
-
MaterialCast Iron
-
Torque Rating36.013 in-lb Input/28.82 in-lb Output
-
Gear Ratio1:1
-
TypeStraight Type LR
-
Mounting TypeHorizontal
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size1 in Dia x 1-3/4 in L
-
Input TypeShaft
-

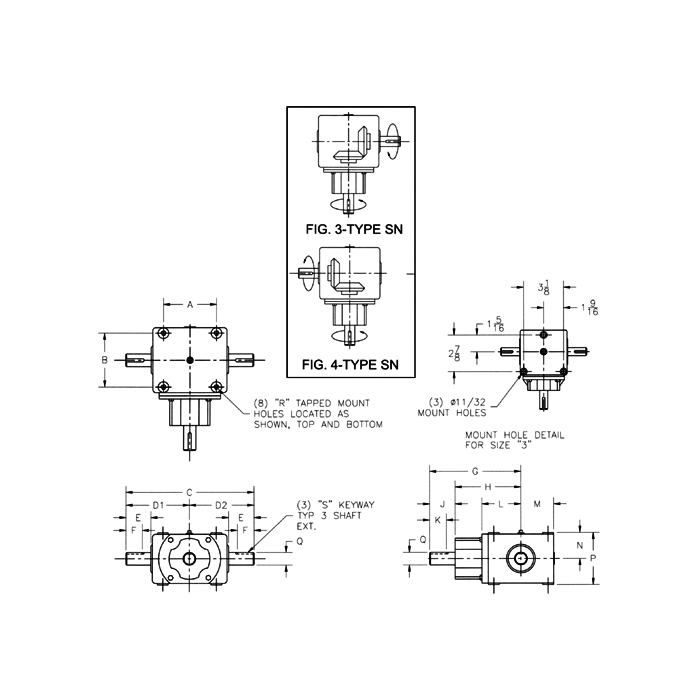

Dimensions9-3/32 in L x 4-1/4 in H
-
Keyway Size1/4 x 1/8 in
-
Output Maximum Speed1750 rpm
-
Output Size1 in Dia x 1-5/8 in L
-
Output TypeShaft
- Rugged cast iron housings, line bored for precise gear and bearing alignment
- Carburized alloy steel gears manufactured to AGMA standards for long life and quiet operation
- Double-lip contact oil seals ride on hardened plunge ground shafts for leak free operation
- Reducer size 6
-
Alternative Part Number6HB1-LR10
-
UNSPSC26111542
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
