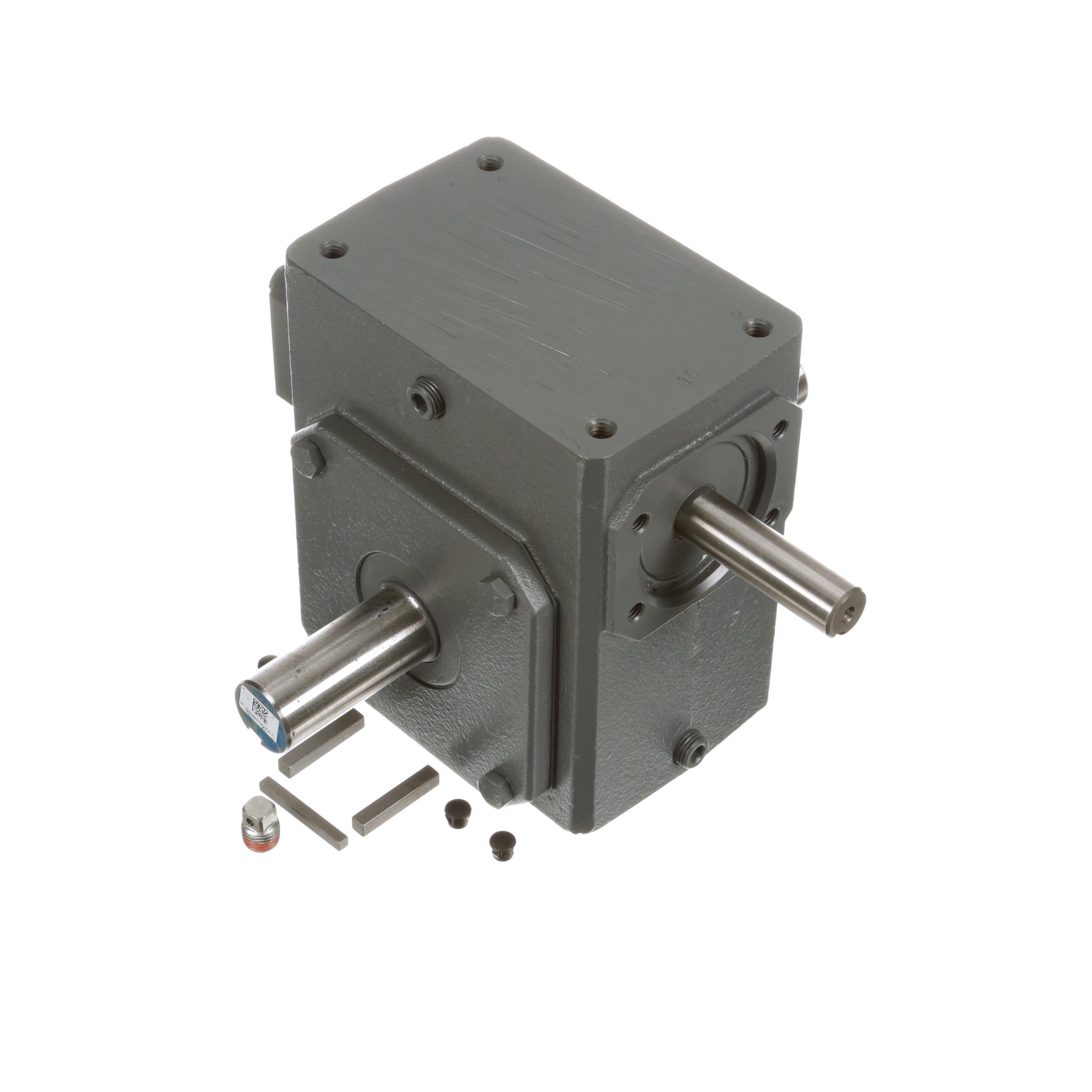

Morse® Raider® Plus XF1023 Single Reduction Standard Worm Gear Reducer, Universal Shaft-In Input, Double Solid Shaft Output, 1 hp, 10:1 Gear Ratio, 175 rpm Maximum Output, 128.21 in-lb Input/175 in-lb Output Torque Rating
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
-
BrandMorse®
-
UPC662288348818
-
Manufacturer Part NumberXF1023
-
CountryUSA
-
Lubrication TypePolyglycol Oil
-
Centre Distance2.37 in
-
MaterialCast Iron
-
Torque Rating128.21 in-lb Input/175 in-lb Output
-
Gear Ratio10:1
-
TypeSingle Reduction Standard
-
Mounting TypeDirect/Universal
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size0.75 in Dia x 2.38 in L
-
Input TypeUniversal Shaft-In
-
Dimensions9.28 in L x 7.84 in W x 6.94 in H
-
Output Maximum Speed175 rpm
-
Output Size1-1/8 in Dia x 2.66 in L
-
Efficiency80 %
-
Output TypeDouble Solid Shaft
- Rugged cast iron housing provides maximum strength and dependability
- High lead angle worm is case hardened, ground and polished
- Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
- Forged bronze worm gears provide optimum balance of strength and wear
- Heavy duty tapered roller bearings on all output shafts
-
Alternative Part Number237ULR10
-
UNSPSC25173800
-
Package DescriptionEACH
-
Standards/ApprovalsFDA Approved
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
