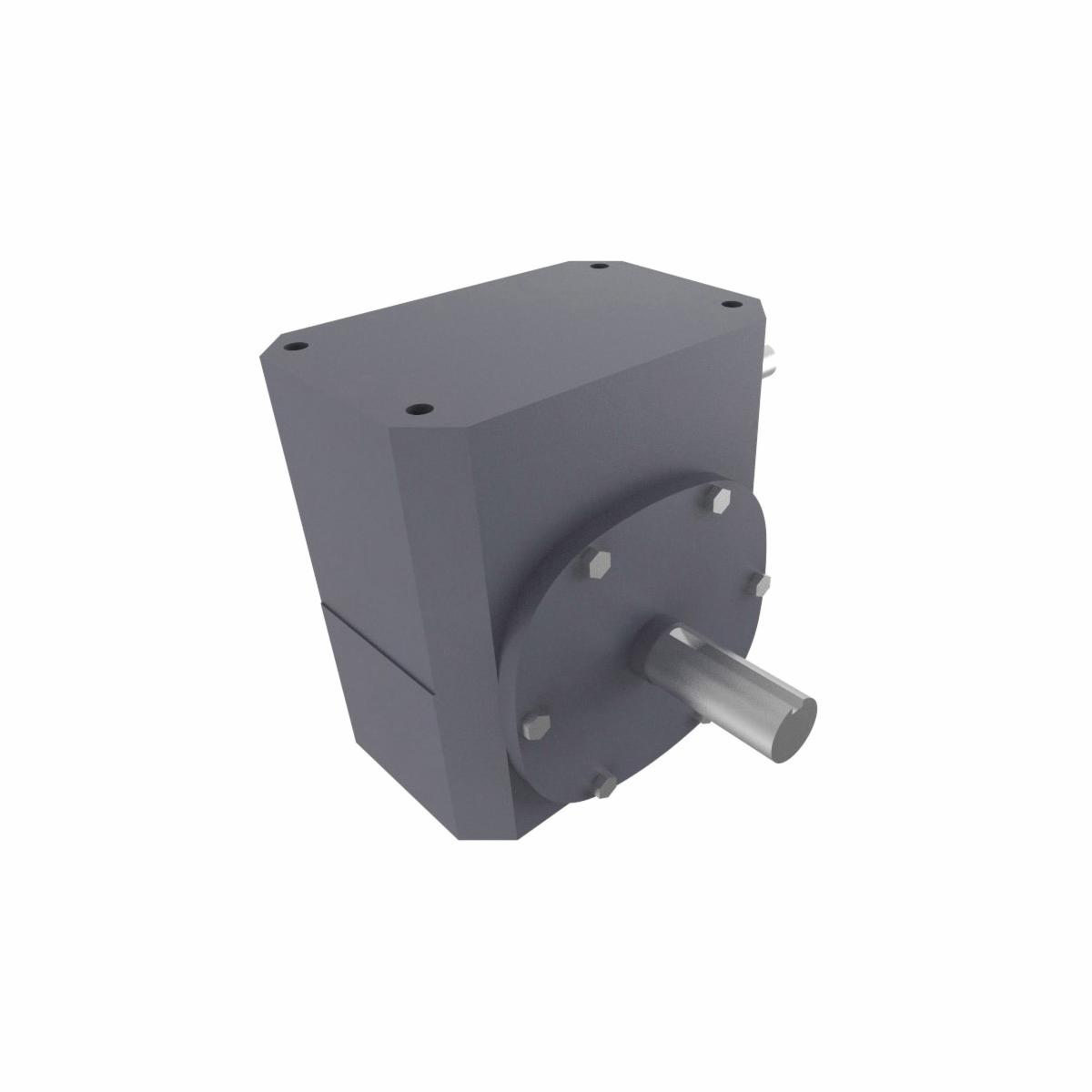

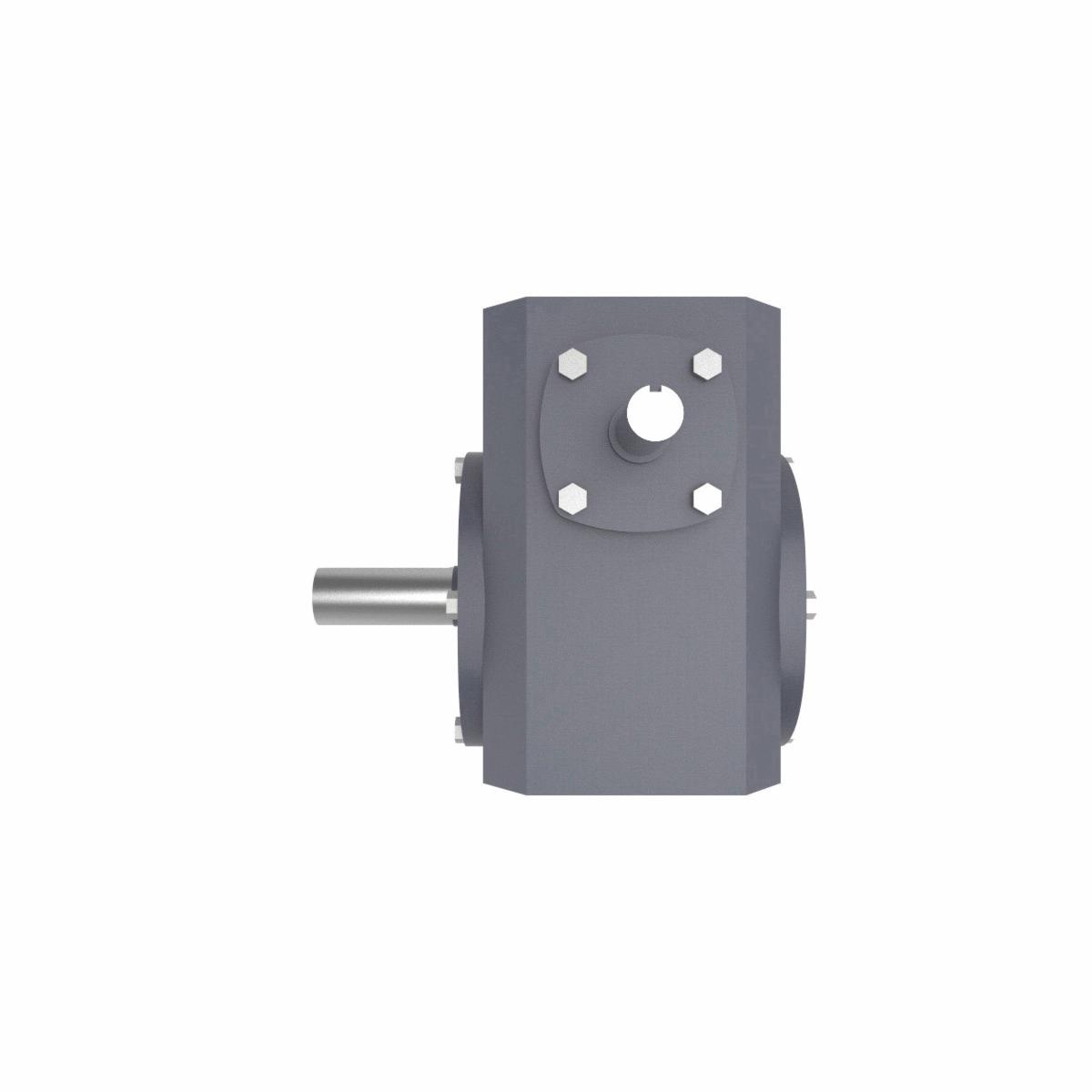

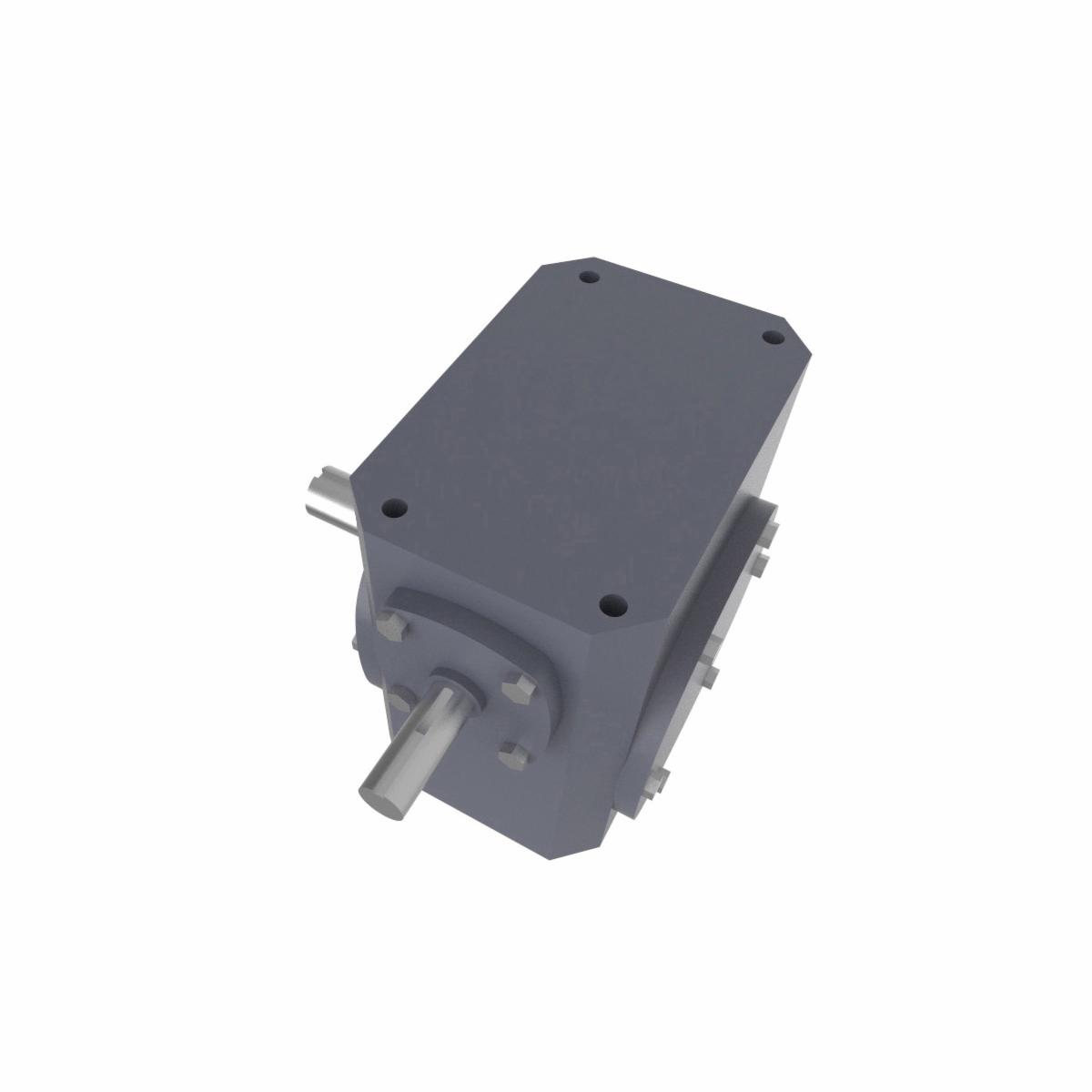

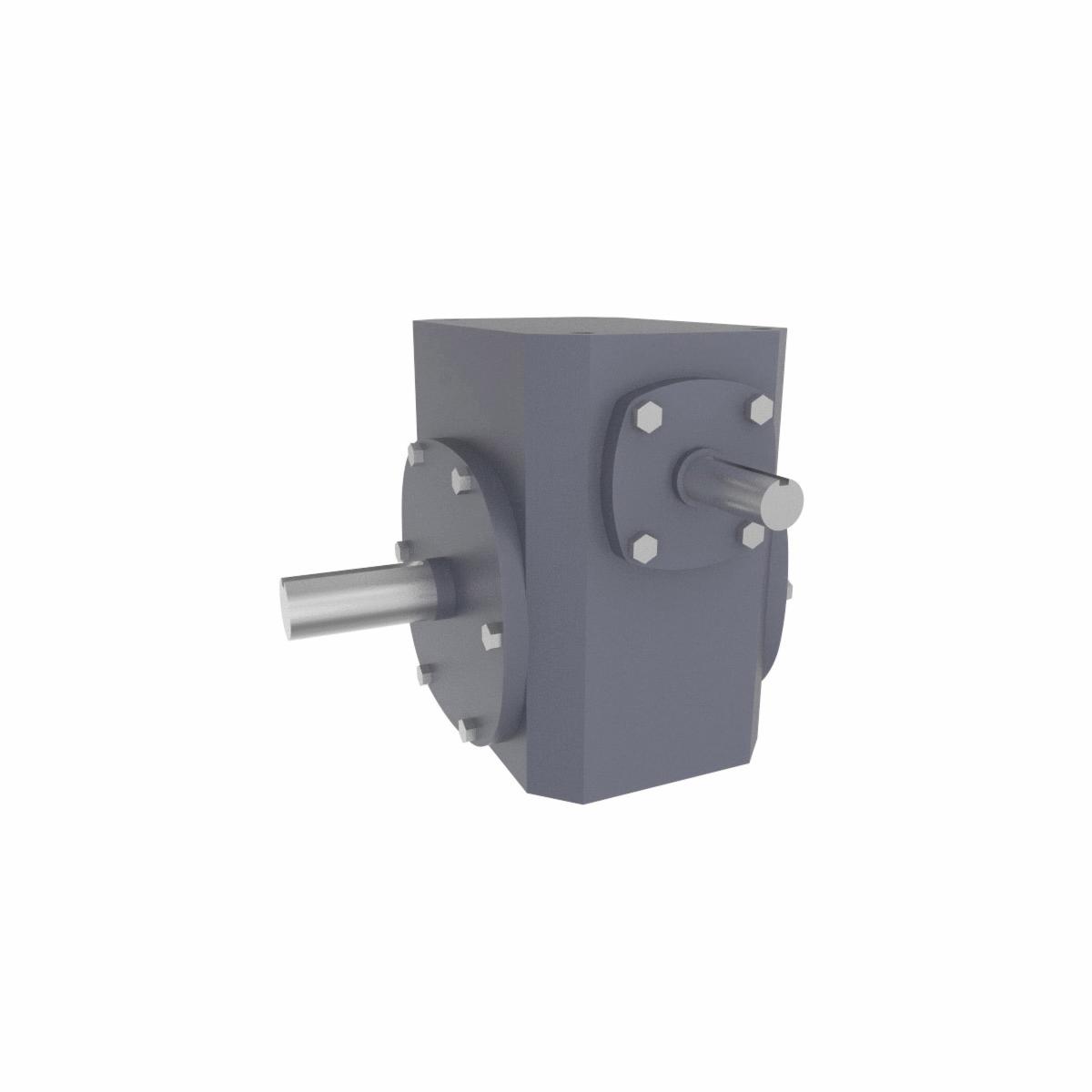

Boston Gear 40:1 56 FR.L/H OUTPUT GEAR REDUCER BOG 724-40-G
Our standard 700 series, the heart of Boston Gear®'s speed reducer product line, has been serving industry reliably for over 40 years. Its proven modular design has set the industry standard for performance and is the most imitated product in today's worm gear speed reducer market. Its multi position mounting flexibility allows for installation in virtually any position, while internal baffles assure positive, leak free venting.
-
BrandBoston Gear®
-
UPC781711517260
-
Manufacturer Part Number724-40-G
-
CountryUSA
-
Lubrication TypeKlubersynth UH1 6-460
-
FinishStandard Gray Painted
-
Centre Distance2.38 in
-
MaterialCast Iron
-
Torque Rating1206 in-lb
-
Gear Ratio40:1
-
TypeSingle Reduction
-
Mounting TypeNo Base
-
Series700
-
Horsepower1.08 hp Input/0.84 hp Output/1 hp Motor
-
Input Maximum Speed1750 rpm
-
Input Size0.7495 in
-
Input TypeNo Flange
-

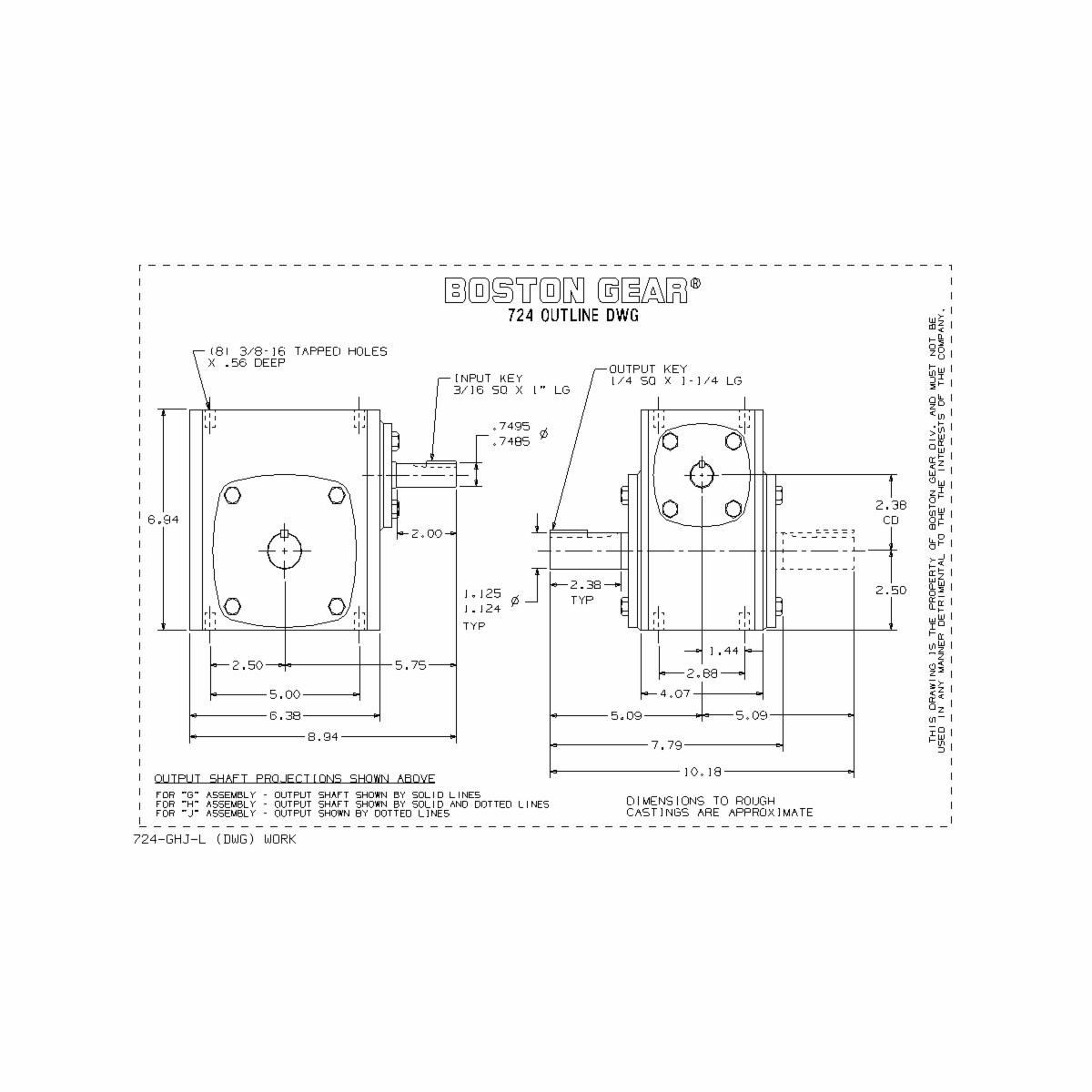

Dimensions8.94 in L x 7.81 in W x 6.94 in H
-
Output Maximum Speed43.8 rpm
-
Output Size1-1/8 in
-
Efficiency0.77 %
-
Output TypeSolid Projecting Shaft
- Precision ground worm threads maximize gearbox efficiency
- At low ratio efficiencies of 90 to 95% are common
- The 700 series large oil reservoir provides efficient heat dissipation and lubrication for longer operating life
- Its multi position mounting flexibility allows for installation in virtually any position
- Housings are straddle milled, top and bottom for precise alignment of horizontal and vertical bases
- Internal baffles assure positive and leak free venting
- The 700 series rugged housing, fabricated of fine grained, gear quality cast iron, provides maximum strength for maximum durability, as well as greater precision during worm and gear alignment
- Boston Gear®'s 700 series high strength bronze worm gear is straddle mounted between heavy duty tapered roller bearings to increase thrust and overhung load capacities
- Our 700 series high strength steel output shaft assures capacity for high torque and overhung loads
- Pipe plugs allow easy fill, level and drain in any mounting position
- The 700 series super finished oil seal diameters on both input and output shafts extend seal life
- Standard oil seal
-
Alternative Part Number30233564
-
UNSPSC26111537
-
Standards/ApprovalsAGMA Class I|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
