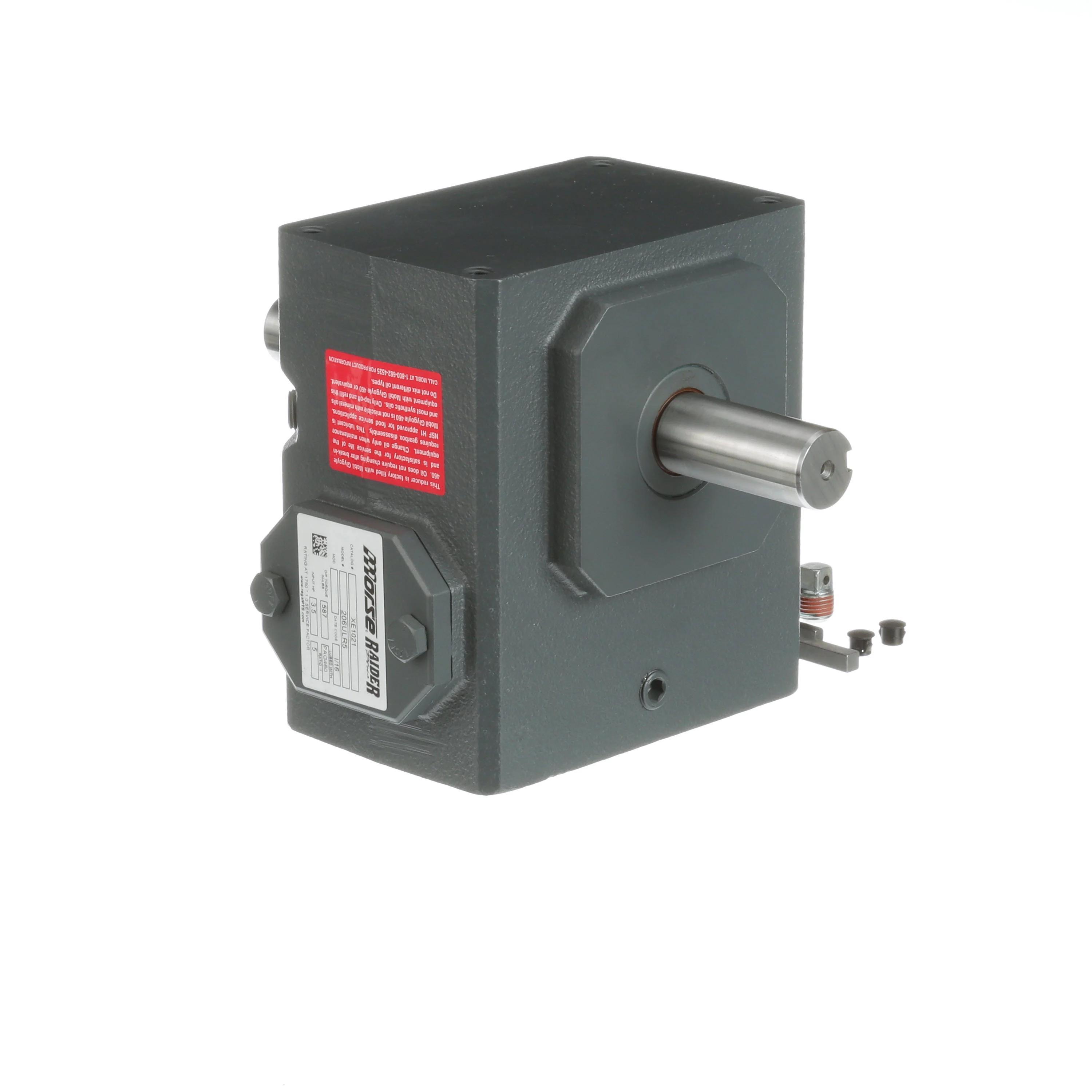

Morse® Raider® Plus XM0029 Standard Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 6.15 hp Input, 50:1 Gear, 35 rpm Maximum Output, 221.49 in-lb Input/35 in-lb Output Torque Rating
With a large variety of add on accessories, the Raider® Plus worm gear reducer is a problem solver. Four available styles make it the most flexible worm gear product in the drives and components portfolio. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors. The Raider Plus worm gear reducer product line features a center distance range from 1 to 6 in with ratios from 5:1 to 60:1. It also contains an output torque range from 200 to 10000 ft-lb. Additionally, the line is an industry leader due to its patented design technology and manufacturing techniques.
-
BrandMorse®
-
UPC662288369752
-
Manufacturer Part NumberXM0029
-
CountryUSA
-
Centre Distance6 in
-
MaterialCast Iron
-
Torque Rating221.49 in-lb Input/35 in-lb Output
-
Gear Ratio50:1
-
TypeStandard Single Reduction
-
Horsepower6.15 hp Input
-
Input Maximum Speed1750 rpm
-
Input Size2-1/4 in Dia
-
Input TypeShaft
-
Output Maximum Speed35 rpm
-
Output Size2-1/4 in Dia
-
Efficiency80 %
-
Output TypeShaft
- Rugged cast iron housing provides maximum strength and dependability
- Integral worm and shaft - carburized and hardened to 58RC for extra strength
- Tapered roller bearings on input and output shafts - absorb radial and thrust loads
- Cast bronze worm gears provide optimum balance of strength and wear resistance
-
Alternative Part Number600ULR50
-
UNSPSC26111537
-
Package Description1/PK
-
WarrantyLimited
-
Instruction/Installation Manual
-
Line Drawing
