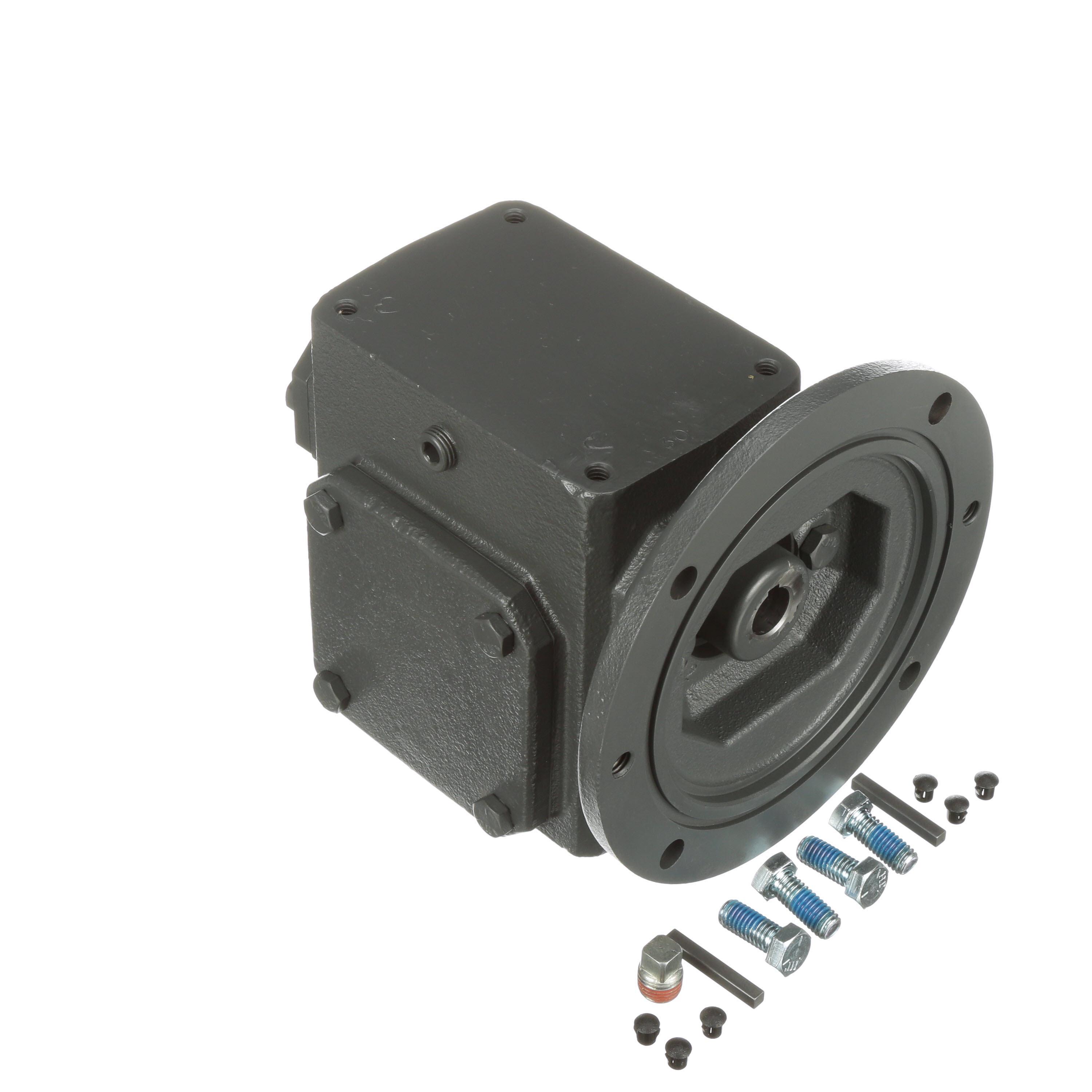

Morse® Raider® Plus XH1139 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Solid Shaft Output, 1 hp, 50:1 Gear Ratio, 35 rpm Maximum Output, 69.15 in-lb Input/35 in-lb Output Torque Rating
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
-
BrandMorse®
-
UPC662288357834
-
Manufacturer Part NumberXH1139
-
CountryUSA
-
Lubrication TypePolyglycol Oil
-
Centre Distance3 in
-
MaterialCast Iron
-
Torque Rating69.15 in-lb Input/35 in-lb Output
-
Gear Ratio50:1
-
TypeSingle Reduction Standard
-
Mounting TypeDirect/Floor
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size5/8 in Dia
-
Input TypeC-Face Quilled
-
Dimensions10.79 in L x 10.14 in W
-
Keyway Size0.1875 x 1.63 in Input
-
Output Maximum Speed35 rpm
-
Output Size1.25 in Dia x 3.6 in L
-
Output TypeSolid Shaft
- Rugged cast iron housing provides maximum strength and dependability
- High lead angle worm is case hardened, ground and polished
- Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
- Tapered roller bearings are used on output shaft
- Forged bronze worm gears provide optimum balance of strength and wear
- Modular worm gear design provides over 10 million configurations from stock components
- Double sealing capability on input and output shafts
- Dimensionally interchangeable with major industry competitors
- 56 NEMA frame
-
Alternative Part Number300Q56R50
-
UNSPSC25173800
-
Package DescriptionEACH
-
Standards/ApprovalsFDA Approved
-
Warranty1 year
-
Specification Sheet
-
Instruction/Installation Manual
