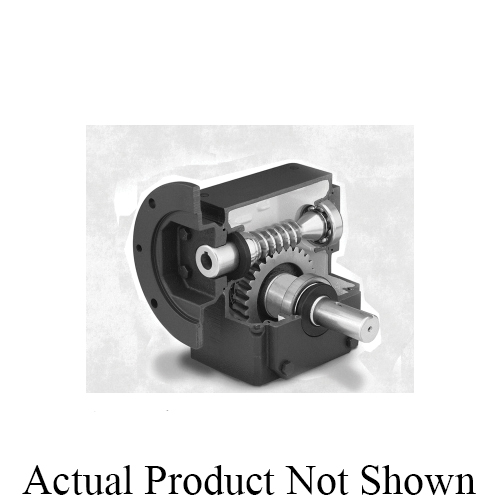

Browning 30:1 RAIDER WORM GEAR REDUCERS BRW 100-Q-56-LR-30
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
-
BrandMorse®
-
UPC662288696841
-
Manufacturer Part NumberXA0066
-
CountryUSA
-
Lubrication TypePolyglycol Oil
-
Centre Distance1 in
-
MaterialCast Iron
-
Torque Rating138 in-lb Output
-
Gear Ratio30:1
-
TypeSingle Reduction Standard
-
Mounting TypeDirect/Floor
-
Horsepower0.16 hp
-
Input Maximum Speed1750 rpm
-
Input Size5/8 in Dia
-
Input TypeC-Face Quilled
-
Dimensions5.24 in L x 6.5 in W x 6.5 in H
-
Output Maximum Speed58.3 rpm
-
Output Size1/2 in Dia x 1-1/4 in L
-
Output TypeSolid Shaft
- Rugged cast iron housing provides maximum strength and dependability
- High lead angle worm is case hardened, ground and polished
- Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
- Tapered roller bearings are used on output shaft
- Forged bronze worm gears provide optimum balance of strength and wear
- Modular worm gear design provides over 10 million configurations from stock components
- Double sealing capability on input and output shafts
- Dimensionally interchangeable with major industry competitors
- 56 NEMA frame
-
Alternative Part Number100Q56L30
-
UNSPSC25173800
-
Standards/ApprovalsFDA Approved
-
Catalog
-
Instruction/Installation Manual
