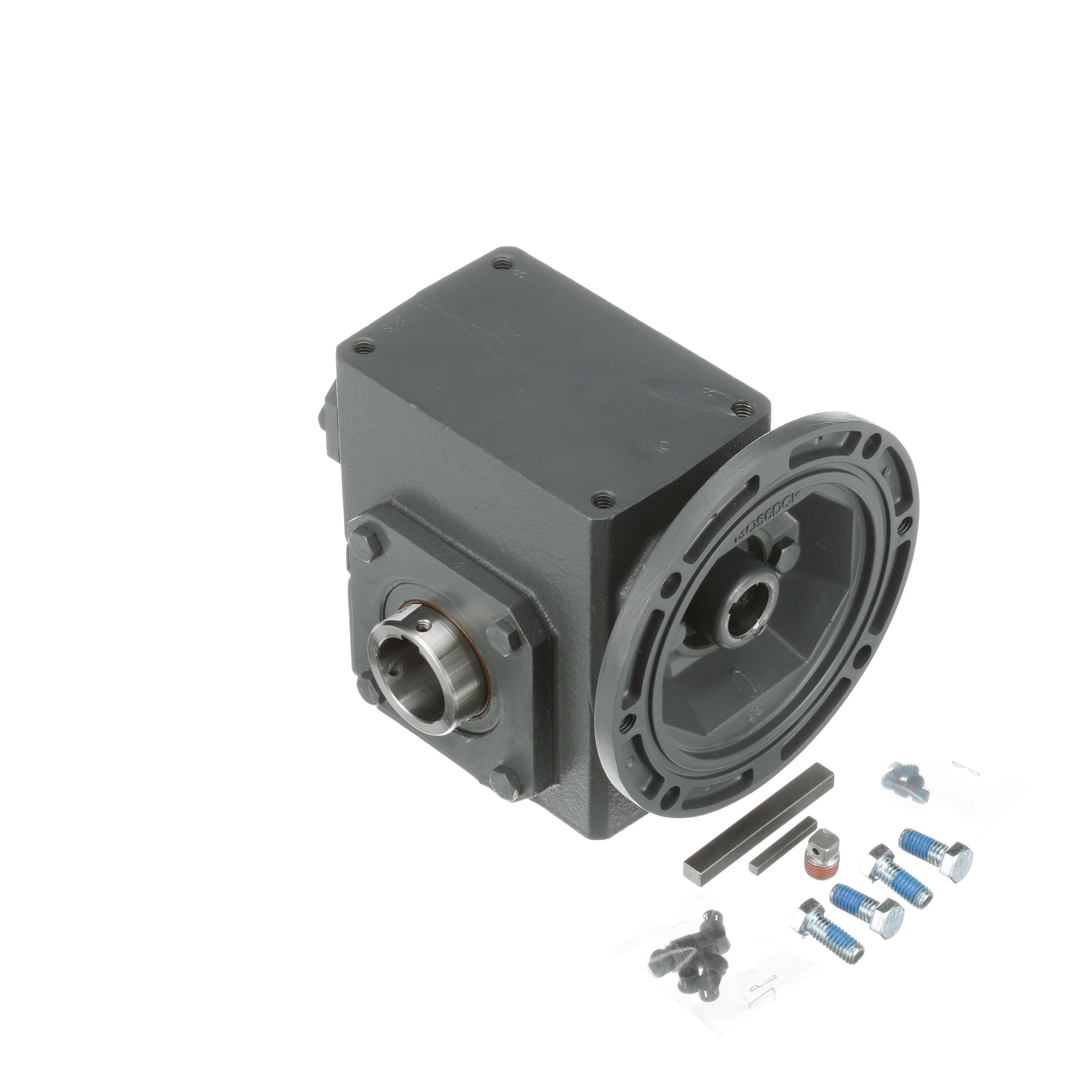

Morse® Raider® Plus XJ0348 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Hollow Output, 1 hp, 40:1 Gear Ratio, 43.7 rpm Maximum Output, 104.8 in-lb Input/43.7 in-lb Output Torque Rating
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
-
BrandMorse®
-
UPC662288365785
-
Manufacturer Part NumberXJ0348
-
CountryUSA
-
Lubrication TypePolyglycol Oil
-
Centre Distance3-3/4 in
-
MaterialCast Iron
-
Torque Rating104.8 in-lb Input/43.7 in-lb Output
-
Gear Ratio40:1
-
TypeSingle Reduction Standard
-
Mounting TypeDirect/Floor
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size1-1/8 in Dia
-
Input TypeC-Face Quilled
-
Dimensions12.22 in L x 9.63 in W
-
Keyway Size1/4 x 1/8 in Input/5/8 x 3/16 in Output
-
Output Maximum Speed43.7 rpm
-
Output Size2.438 in Dia
-
Output TypeHollow
- Rugged cast iron housing provides maximum strength and dependability
- Integral worm and shaft are hardened to 58RC for extra strength
- Tapered roller bearings on input and output shafts absorbs radial and thrust loads
- Forged or cast bronze worm gears provides optimum balance of strength and wear resistance
- Heavy duty tapered roller bearings on all output shafts
- Modular worm gear design provides over 10 million configurations from stock components
- Double sealing capability on input and output shafts
- Dimensionally interchangeable with major industry competitors
-
Alternative Part Number375Q180H40
-
UNSPSC25173800
-
Package Description1/PK
-
Standards/ApprovalsFDA Approved
-
Warranty1 year
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
