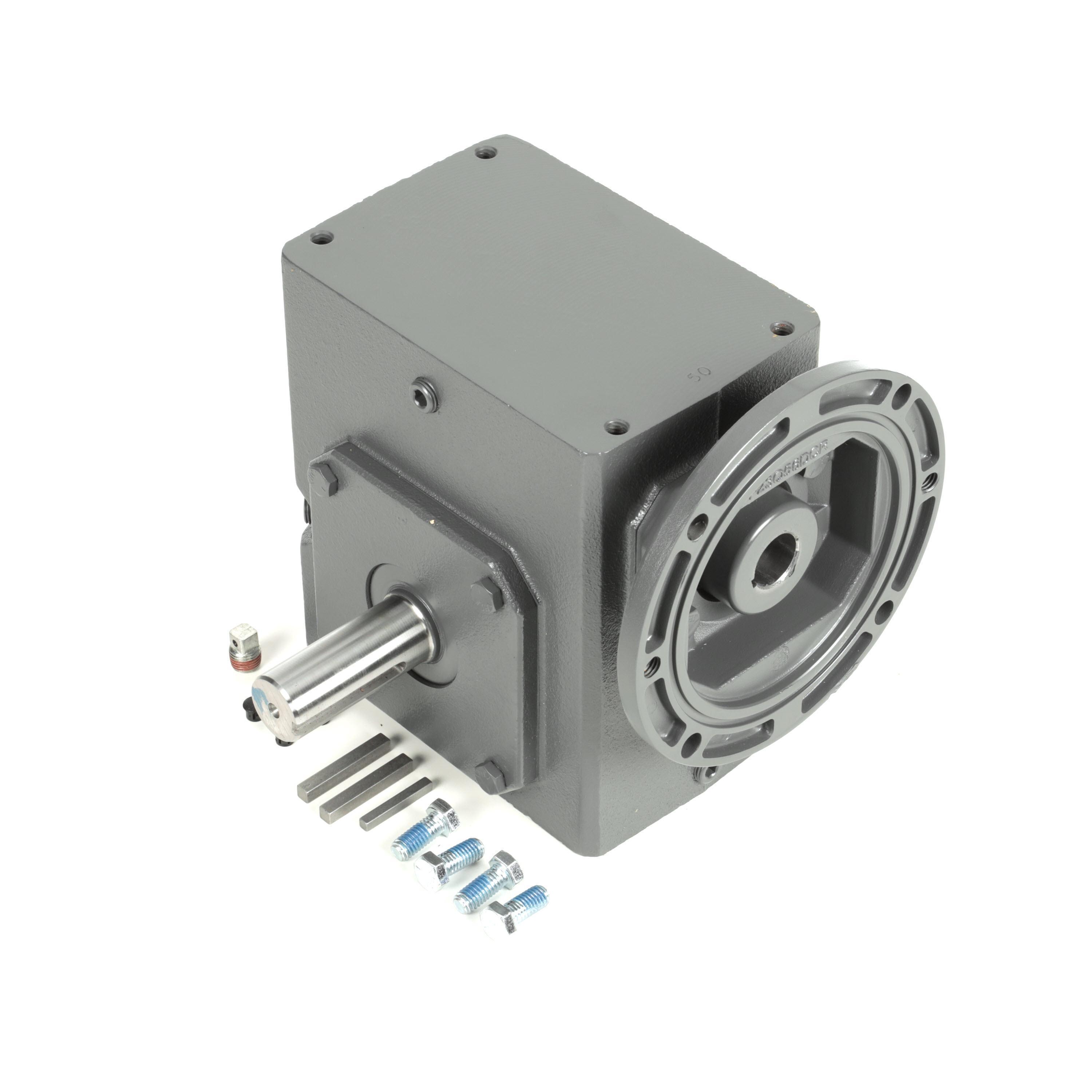

Morse® Raider® Plus XG1179 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Double Solid Shaft Output, 1 hp, 50:1 Gear Ratio, 35 rpm Maximum Output, 51.14 in-lb Input/35 in-lb Output Torque Rating
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
-
BrandMorse®
-
UPC662288353676
-
Manufacturer Part NumberXG1179
-
CountryUSA
-
Lubrication TypePolyglycol Oil
-
Centre Distance2.62 in
-
MaterialCast Iron
-
Torque Rating51.14 in-lb Input/35 in-lb Output
-
Gear Ratio50:1
-
TypeSingle Reduction Standard
-
Mounting TypeDirect/Floor
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size0.88 in Dia
-
Input TypeC-Face Quilled
-
Dimensions9.53 in L x 8.74 in W x 8 in H
-
Keyway Size0.1875 x 1.63 in Input
-
Output Maximum Speed35 rpm
-
Output Size1.13 in Dia x 2.73 in L
-
Efficiency80 %
-
Output TypeDouble Solid Shaft
- Rugged cast iron housing provides maximum strength and dependability
- High lead angle worm is case hardened, ground and polished
- Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
- Forged bronze worm gears provide optimum balance of strength and wear
- Heavy duty tapered roller bearings on all output shafts
- 143/145TC motor frame size
-
Alternative Part Number262Q140LR50
-
UNSPSC25173800
-
Package DescriptionEACH
-
Standards/ApprovalsFDA Compliant
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
