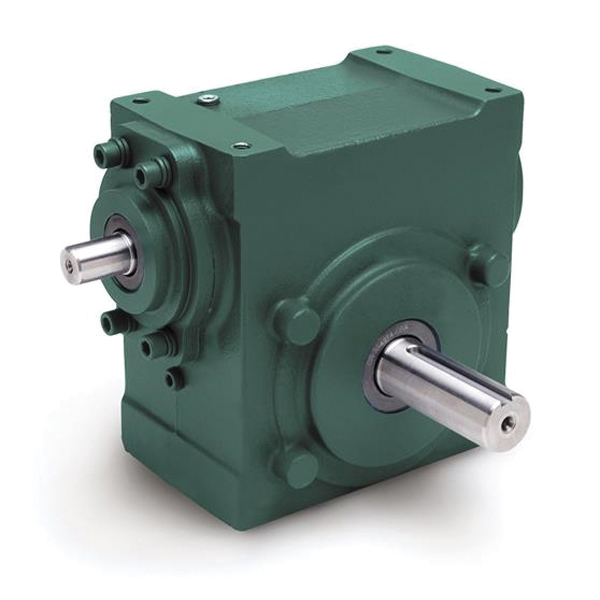

Dodge® Tigear-2® 26S15R Standard Right Angle Worm Gear Speed Reducer, Separate Input, Solid B Shaft Output, 3.62 hp, 15:1 Gear, 117 rpm Maximum Output, 1708 in-lb Torque Rating
The speed reducer shall be a single reduction worm gear reducer incorporating three input configurations - a quill style for direct attachment of electric motors, a separate keyed input shaft suitable for flexible coupling to a footed motor or belt and pulley input configuration and a motor adapter style input that employs a three piece coupling to connect electric motors to the reducer. These input configurations shall be available in both solid and hollow output shaft designs. The reducer shall be manufactured in the United States of America.
-
BrandDodge®
-
UPC782475751105
-
Manufacturer Part Number26S15R
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance2.63 in
-
MaterialGray Iron
-
Torque Rating1708 in-lb
-
Gear Ratio15:1
-
TypeStandard
-
Rotation TypeRight Hand
-
Horsepower3.62 hp
-
Input Maximum Speed1750 rpm
-
Input Size7/8 in
-
Input TypeSeparate
-
Dimensions10 in L x 5.77 in W x 8.36 in H
-
Output Maximum Speed117 rpm
-
Output Size1-1/8 in
-
Efficiency60 to 95 %
-
Output TypeSolid B Shaft
- New worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101926310 |
| Applied Industrial Technologies | 101926310 |
-
UNSPSC26111537
-
Package DescriptionEACH
-
Specification Sheet
