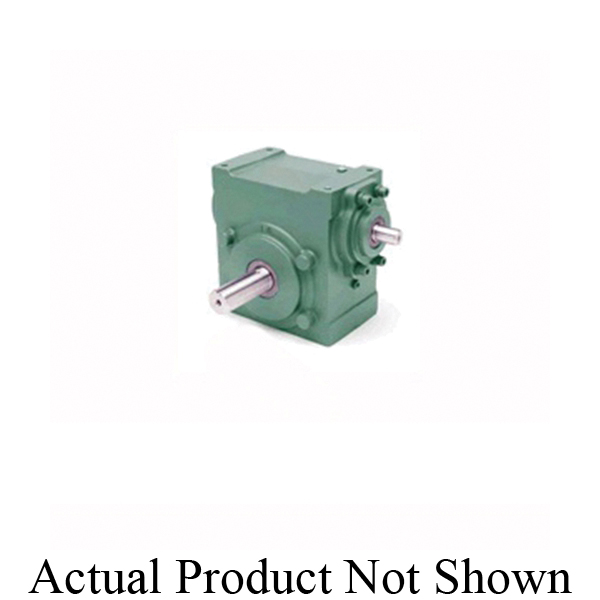

Dodge® Tigear-2® 13S05L Size 13 Standard Right Angle Worm Gear Speed Reducer, Separate Input, Solid A Shaft Output, 1.32 hp, 5:1 Gear, 350 rpm Maximum Output, 219 in-lb Torque Rating
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
-
BrandDodge®
-
UPC782475742011
-
Manufacturer Part Number13S05L
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance1.33 in
-
MaterialGray Iron
-
Torque Rating219 in-lb
-
Gear Ratio5:1
-
TypeSize 13 Standard
-
Mounting TypeNo Base
-
Rotation TypeLeft Hand
-
Horsepower1.32 hp
-
Input Maximum Speed1750 rpm
-
Input Size1/2 in
-
Input TypeSeparate
-
Dimensions7.25 in L x 8 in W x 4.88 in H
-
Keyway Size3/16 in L x 3/16 in W x 1-1/2 in H
-
Output Maximum Speed350 rpm
-
Output Size5/8 in
-
Efficiency60 to 95 %
-
Output TypeSolid A Shaft
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
-
UNSPSC26111537
-
Specification Sheet
