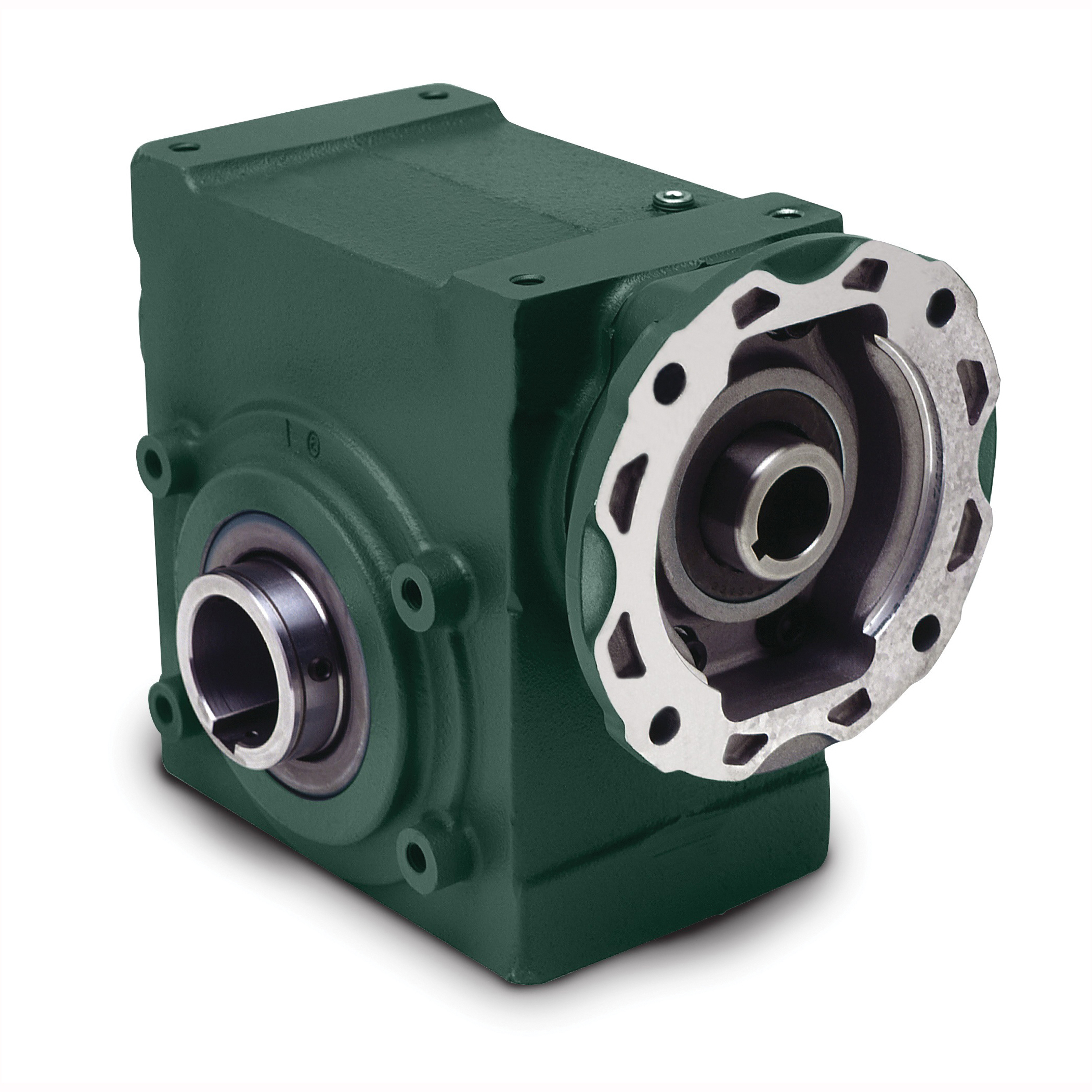

Dodge® Tigear-2® 13Q40H56 Size 13 Standard Right Angle Worm Gear Speed Reducer, Quill Input, Hollow Shaft Output, 0.32 hp, 40:1 Gear, 44 rpm Maximum Output, 319 in-lb Torque Rating
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
-
BrandDodge®
-
UPC782475741281
-
Manufacturer Part Number13Q40H56
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance1.33 in
-
MaterialGray Iron
-
Torque Rating319 in-lb
-
Gear Ratio40:1
-
TypeSize 13 Standard
-
Mounting TypeNo Base
-
Rotation TypeLeft Hand
-
Horsepower0.32 hp
-
Input Maximum Speed1750 rpm
-
Input Size5/8 in
-
Input TypeQuill
-
Dimensions7.03 in L x 4.74 in W x 6.29 in H
-
Keyway Size0.94 in L x 0.1875 in W x 0.1875 in H
-
Output Maximum Speed44 rpm
-
Output Size3/4 in
-
Efficiency60 to 95 %
-
Output TypeHollow Shaft
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
-
UNSPSC26111537
-
Specification Sheet
