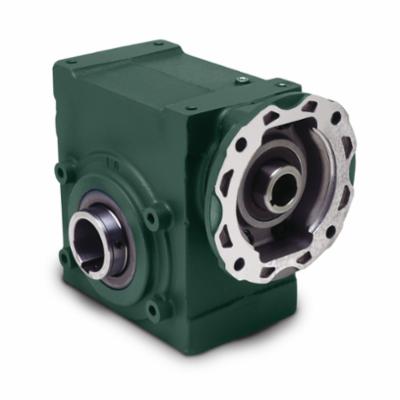

Dodge® Tigear-2® 20Q15HA56 Standard Right Angle Worm Gear Speed Reducer, Quill Input, Hollow Shaft Output, 1.69 hp, 15:1 Gear, 117 rpm Maximum Output, 790 in-lb Torque Rating
The speed reducer shall be a single reduction worm gear reducer incorporating three input configurations - a quill style for direct attachment of electric motors, a separate keyed input shaft suitable for flexible coupling to a footed motor or belt and pulley input configuration and a motor adapter style input that employs a three piece coupling to connect electric motors to the reducer. These input configurations shall be available in both solid and hollow output shaft designs. The reducer shall be manufactured in the United States of America.
-
BrandDodge®
-
UPC782475945566
-
Manufacturer Part Number20Q15HA56
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
MaterialGray Iron
-
Torque Rating790 in-lb
-
Gear Ratio15:1
-
TypeStandard
-
Horsepower1.69 hp
-
Input Maximum Speed1750 rpm
-
Input TypeQuill
-
Dimensions8.6 in L x 5.01 in W x 7.5 in H
-
Output Maximum Speed117 rpm
-
Output Size1.188 in
-
Efficiency60 to 95 %
-
Output TypeHollow Shaft
- New worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
-
UNSPSC26111537
-
Specification Sheet
