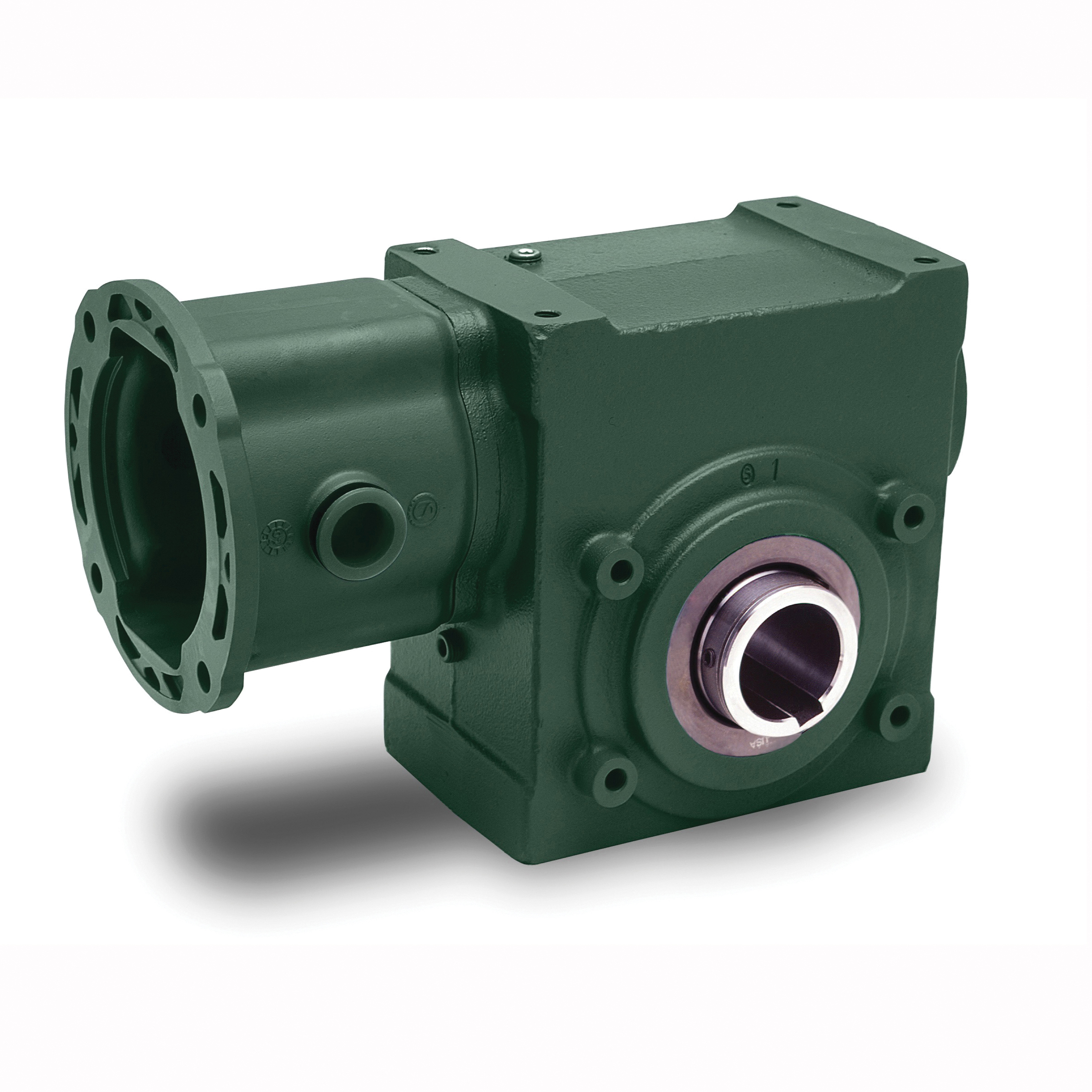

Dodge® Tigear-2® 23A15HA14 Standard Right Angle Worm Gear Speed Reducer, 3-Piece Coupled Input, Hollow Shaft Output, 3.30 hp, 15:1 Gear, 117 rpm Maximum Output, 1199 in-lb Torque Rating
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
-
BrandDodge®
-
UPC782475945337
-
Manufacturer Part Number23A15HA14
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance2.31 in
-
MaterialGray Iron
-
Torque Rating1199 in-lb
-
Gear Ratio15:1
-
TypeStandard
-
Mounting TypeNo Base
-
Rotation TypeRight Hand
-
Horsepower3.30 hp
-
Input Maximum Speed1750 rpm
-
Input Type3-Piece Coupled
-
Dimensions12.98 in L x 5.65 in W x 9.31 in H
-
Keyway Size2.2 in L x 0.375 in W x 0.31 in H
-
Output Maximum Speed117 rpm
-
Output Size1-1/2 in
-
Efficiency60 to 95 %
-
Output TypeHollow Shaft
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
-
UNSPSC26111537
-
IncludesSeparate Reducer, (3) Coupling and Motor Adapter
-
Specification Sheet
