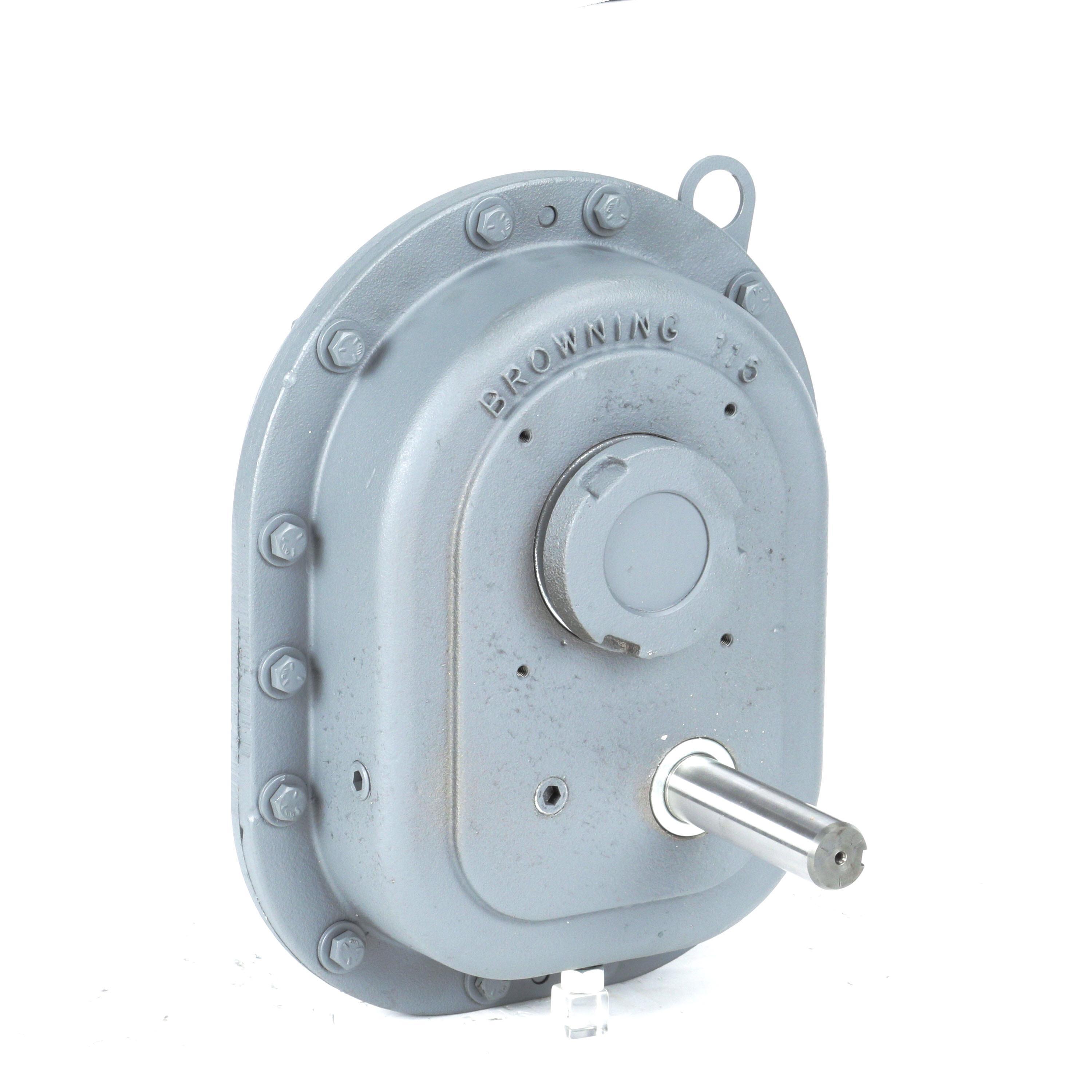

Browning 25:1 SHAFT MOUNT GEAR REDUCERS BRW 115-SMT-P-25

0 Ratings
$2,110.65
In Stock
SKU: BRW115SMTP25
noimage_new

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

In Stock
HCI of Jackson: 3
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Torque Arm Offset Drives
Main specs
  • Brand
    Browning®
  • UPC
    662288910206
  • Manufacturer Part Number
    PC0004
  • Country
    USA
Specification
  • Lubrication Type
    Synthetic/Mineral Oil
  • Centre Distance
    4.36 in
  • Material
    Cast Iron
  • Torque Rating
    36.013 in-lb Input/900.34 in-lb Output
  • Gear Ratio
    25:1
  • Type
    Type SMTP
  • Horsepower
    1 hp
  • Input Maximum Speed
    1750 rpm
  • Input Size
    1.12 in Dia x 4.24 in L
  • Input Type
    Solid Shaft
  • Dimensions
    11 in L x 11.7 in W x 14.08 in H
  • Output Maximum Speed
    70 rpm
  • Output Size
    1-15/16 in
  • Efficiency
    80 %
  • Output Type
    Tapered Bore
Features
  • Tapered stabilizer ring minimizes wobble and resists fretting corrosion
  • End cap seals quill end from contamination
  • Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
  • Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement
  • Options and Accessories, Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options
  • Rotation Viewed Side Opposite Hub, CCW
Additional Information
  • Alternative Part Number
    115SMTP25
  • UNSPSC
    27111767
  • Package Description
    EACH
  • Standards/Approvals
    AGMA Standard
  • Warranty
    2 Years
Attachments
Reviews

There are yet no reviews for this product.
