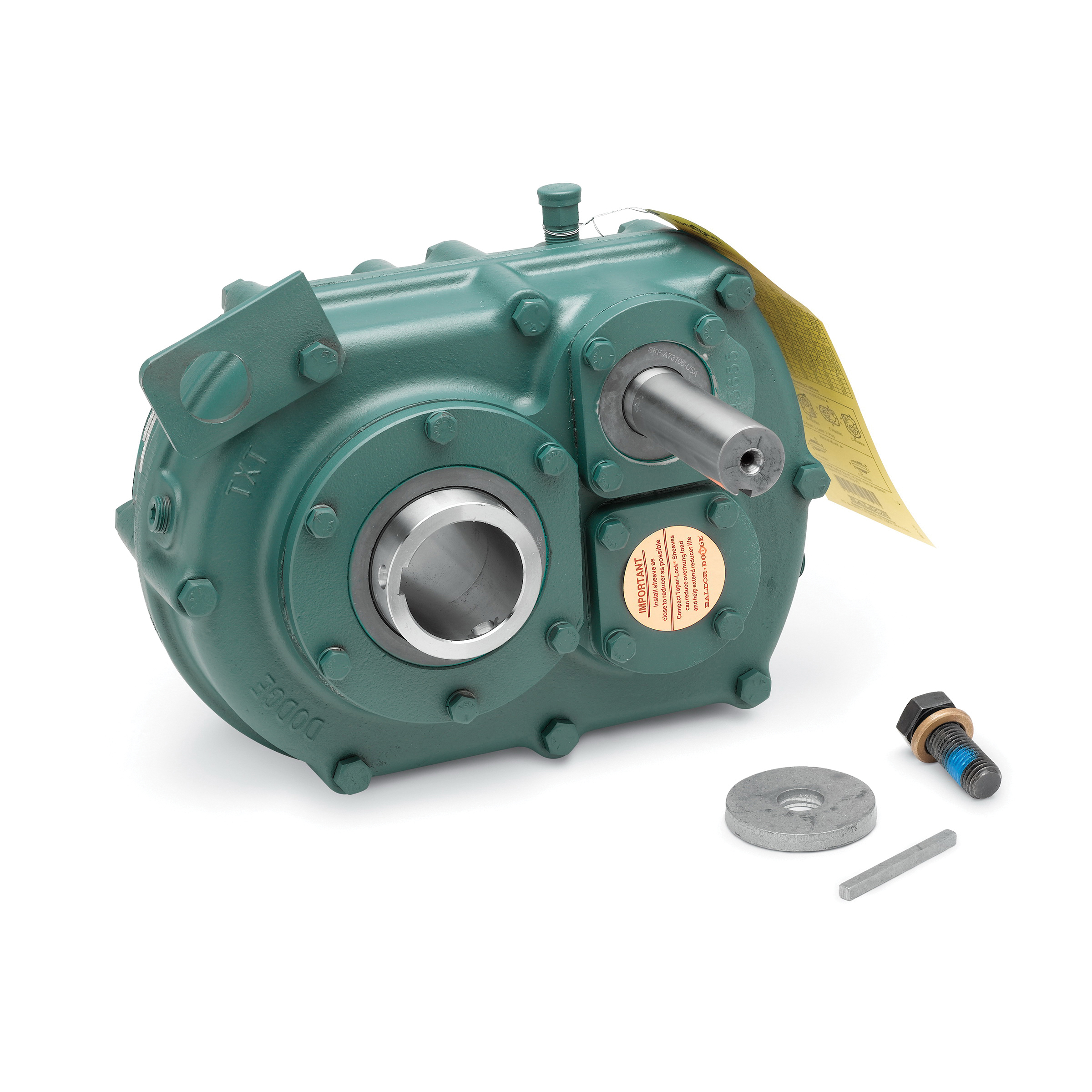

Dodge® 244551 Double Reduction Screw Conveyor Speed Reducer, Shaft Input, Bore Output, 19.3 hp, 25:1 Gear
Dodge® Torque-Arm™ (SCXT) is a helical gear reducer for screw conveyor applications. This unit mounts directly to the trough end of the screw, using the optional adapter and drive shaft. It offers a number of accessories available for the toughest application.
-
BrandDodge®
-
UPC782475688319
-
Manufacturer Part Number244551
-
CountryUSA
-
Lubrication TypeOil
-
FinishGray
-
MaterialCast Iron
-
Gear Ratio25:1
-
TypeDouble Reduction
-
Mounting TypeShaft
-
Horsepower19.3 hp
-
Input Maximum Speed2072 rpm
-
Input Size1-7/16 in Dia
-
Input TypeShaft
-
Dimensions15.13 in W x 10.38 in H
-
Output Size2-7/16 in
-
Output TypeBore
- Heavy duty sealing system
- Steel motor mount system
- Screw conveyor trough end adapter
- Pre-drilled drive shafts
- Straight bore configuration with stock drive shafts for most CEMA designed screws
- 2072 rpm input/75 rpm output
- Case size: 4
- Size: SCXT4B
-
Alternative Part NumberSCXT425B
-
UNSPSC26111536
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|ATEX|BSA|CEMA|EASA|MHI|MPTA|NEMA|NSSSGA|PTDA|RoHS Compliant|SME|SWE|TUV Certified
-
WarrantyLimited
-
