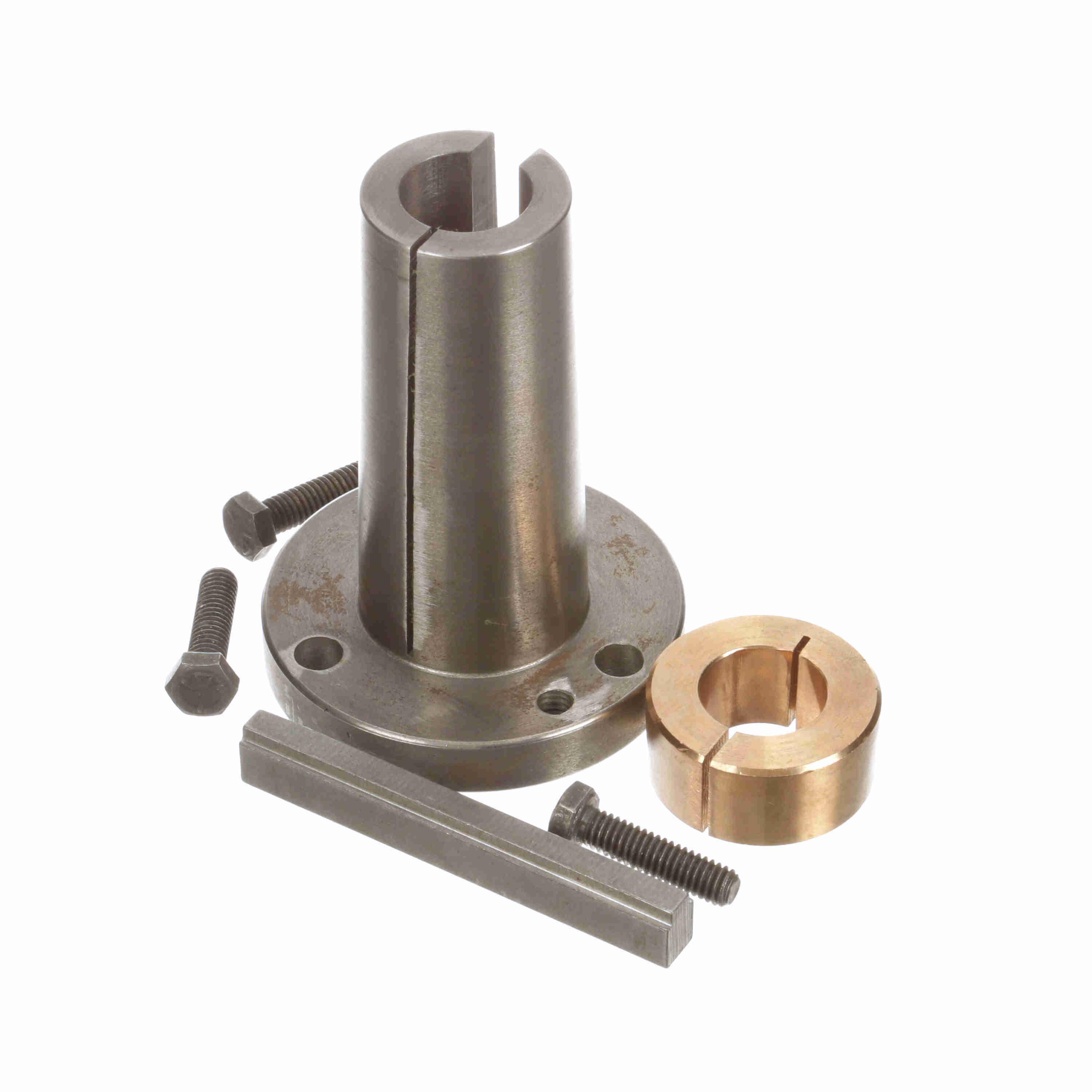

Browning® PB9003 Taper Bore Bushing Kit, 15/16 in ID x 1-7/16 in OD Dia Bushing, For Use With TorqTaper® Plus Size 107SMTP Shaft Mount Speed Reducer, Ductile Iron
Many accessories accompany the Browning® shaft mount reducer. These accessories are designed to provide installation flexibility, improved performance and safety.
-
BrandBrowning®
-
UPC662288910589
-
Manufacturer Part NumberPB9003
-
CountryUSA
-
Bushing Diameter15/16 in ID x 1-7/16 in OD
-
MaterialDuctile Iron
-
TypeTaper Bore
-
Dimensions3-1/4 in OD x 3-7/8 in L
-
Specifications3-7/8 in Length Through Bore, 3-1/4 in OD
-
Suitable For Use WithTorqTaper® Plus Size 107SMTP Shaft Mount Speed Reducer
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings - Commercially available Tapered Roller Bearings provide maximum overhung load capacity
- Key furnished
-
Alternative Part Number107TBP015
-
UNSPSC26111524
-
Includes1/4 x 1/8 x 3-7/8 in Keyseat
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Catalog
