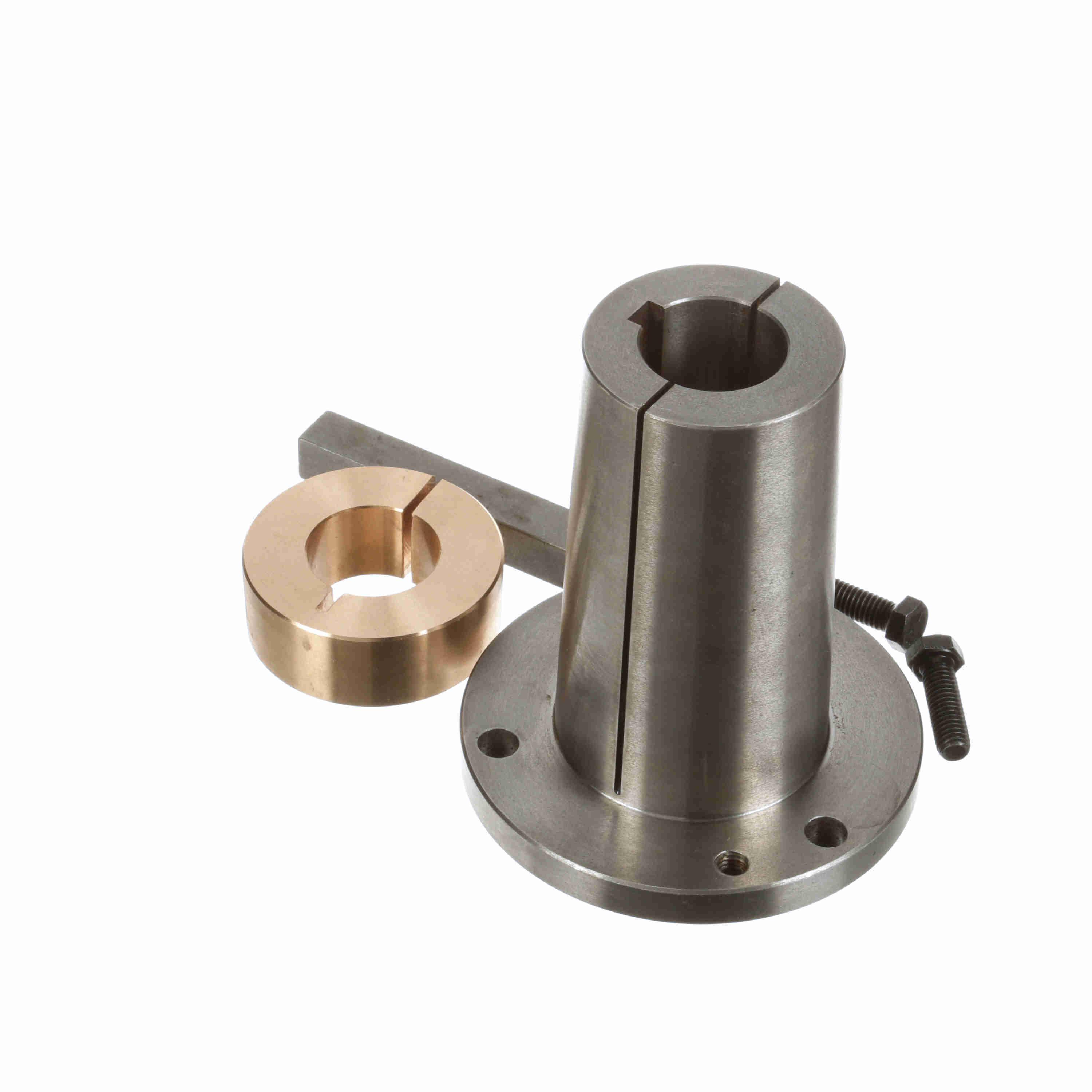

Browning® PE9002 Taper Bore Bushing Kit, 1-7/16 in ID x 2-7/16 in OD Dia Bushing, For Use With TorqTaper® Plus Size 207SMTP Shaft Mount Speed Reducer, Ductile Iron
Many accessories accompany the Browning® shaft mount reducer. These accessories are designed to provide installation flexibility, improved performance and safety.
-
BrandBrowning®
-
UPC662288910992
-
Manufacturer Part NumberPE9002
-
CountryUSA
-
Bushing Diameter1-7/16 in ID x 2-7/16 in OD
-
MaterialDuctile Iron
-
TypeTaper Bore
-
Dimensions4.88 in OD x 4-1/8 in L
-
Specifications5-1/8 in Length Through Bore, 4.88 in OD
-
Suitable For Use WithTorqTaper® Plus Size 207SMTP Shaft Mount Speed Reducer
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings - Commercially available Tapered Roller Bearings provide maximum overhung load capacity
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part Number207TBP107
-
UNSPSC26111524
-
Includes3/8 x 3/16 x 5-1/8 in Keyseat
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
