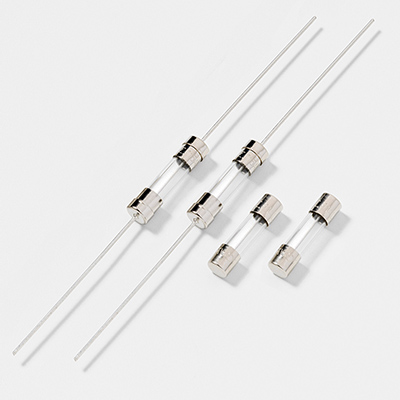

Littelfuse® POWR-GARD® 239003P Fast Acting Cartridge Fuse, 3 A, 250 V AC, 100 A, Class T, Cartridge Body
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458909814
-
Manufacturer Part Number239003P
-
CountryUSA
-
MaterialGlass
-
ClassT
-
Response Time4 hr, 1 hr, 2 min
-
TypeFast Acting
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating3 A
-
Series239
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating100 A
-
Body Size5.2 mm Dia x 20 mm L
-
Body TypeCartridge
- Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
- 0.0487 ohms resistance
- 129.51 I2T (A2 sec) nominal melting
- -55 to 125 deg C operating temperature
- 4 hrs minimum at 100%, 1 hr maximum at 135%, 2 min maximum at 200%
- Nickel-plated brass cap, tin plated copper leads
- 100 A at 250 VAC interrupting rating
-
Alternative Part Number0239003.VXP|9533814
-
UNSPSC39121627
-
IDEA Index ID9533814
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-12|UL 198M|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Owners/User Manual
