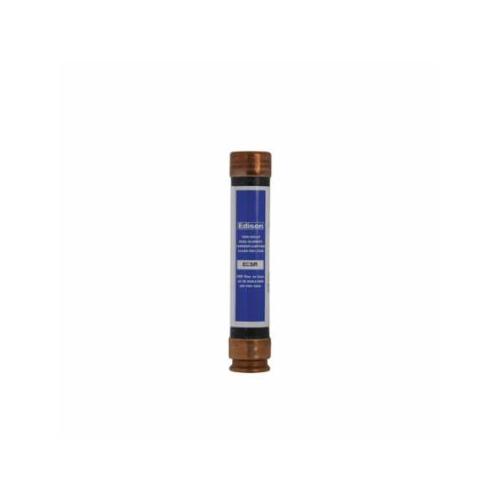

Edison_ECSR60
IDW_IMAGE_81289b41976154eace1548578ceef62d805c0135d7ea28b3c02efafb9964112c

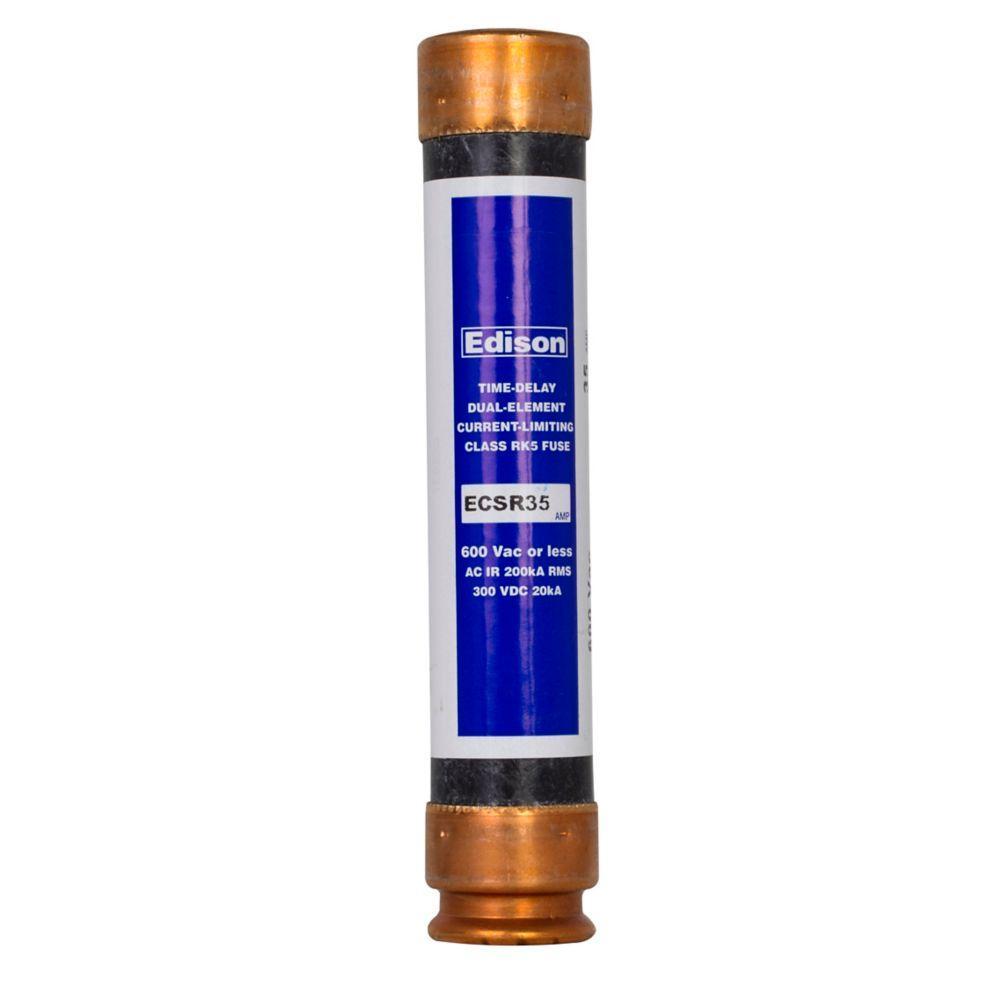

Edison_ECSR35_1
IDW_IMAGE_db1c7bf624410013f2487e9a58f255af56c4bb3bd741a969a65a40524d0a908a

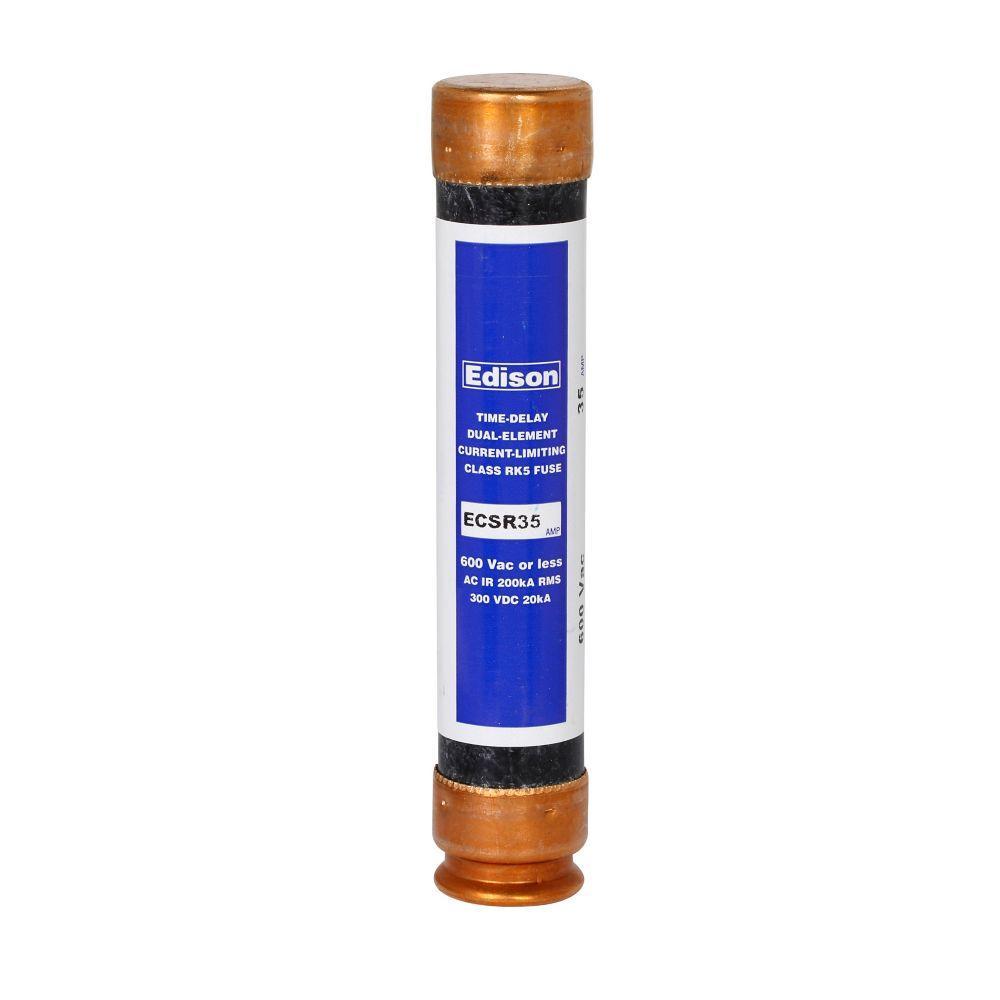

Edison_ECSR35_2
IDW_IMAGE_ed4f1c1f347e5fcb7d91a1cacc17dd04848b4e65e02f708d654a9c1611504bc0

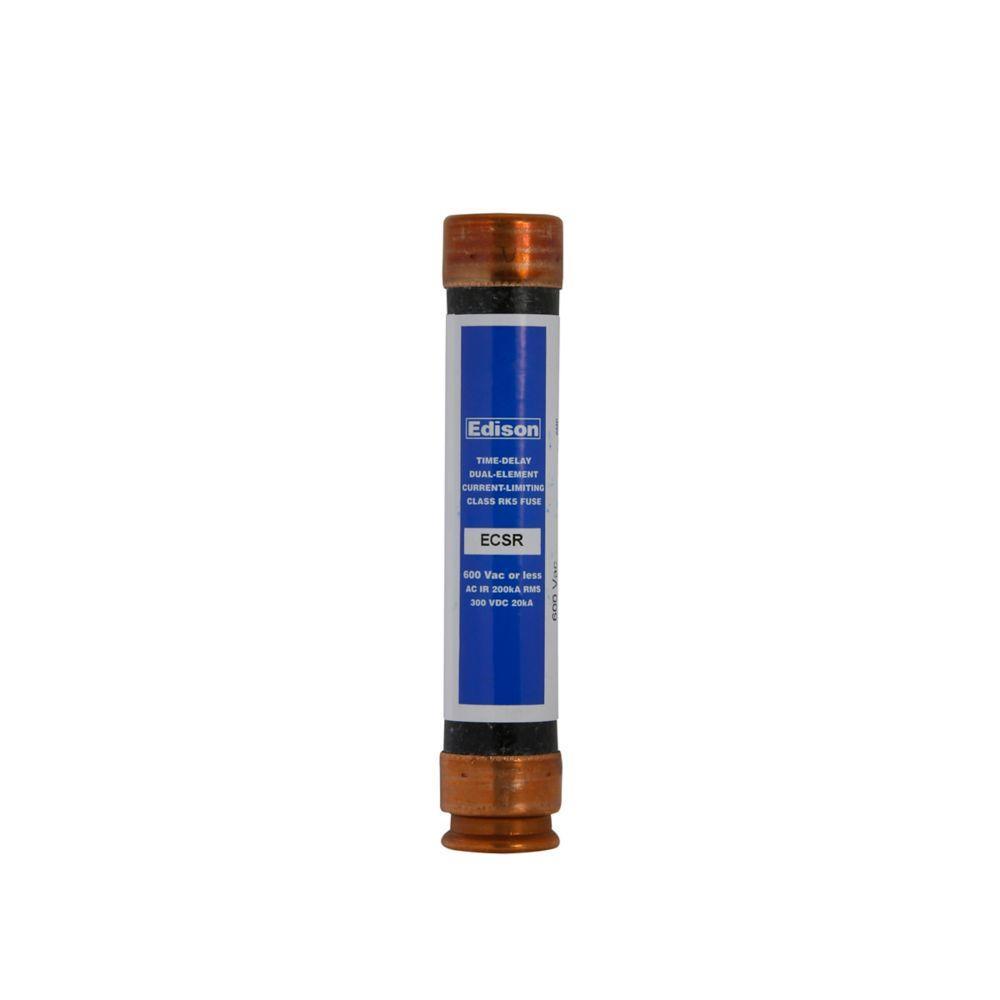

Edison_ECSR60_1

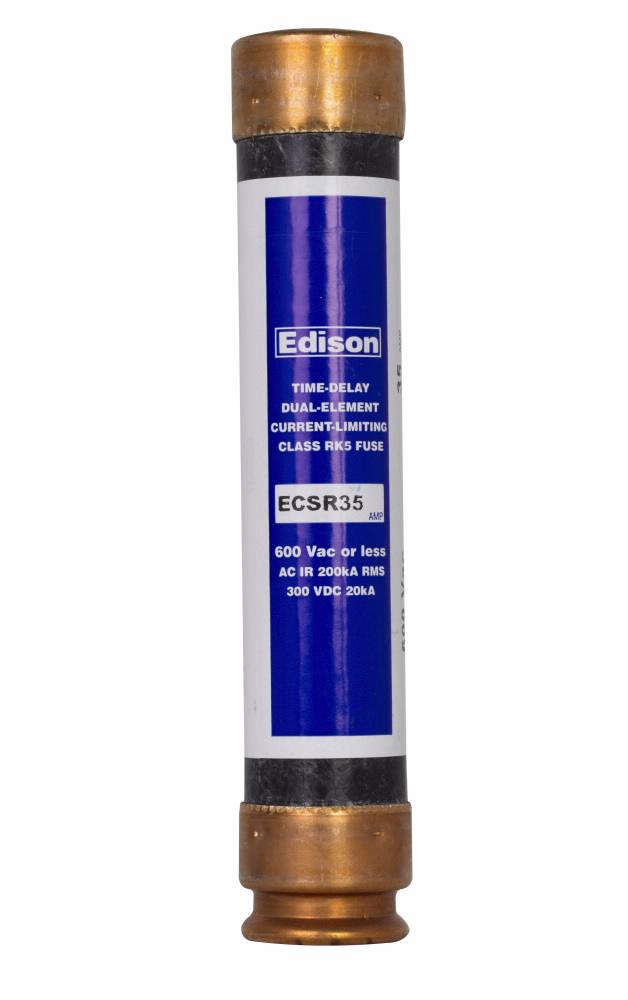

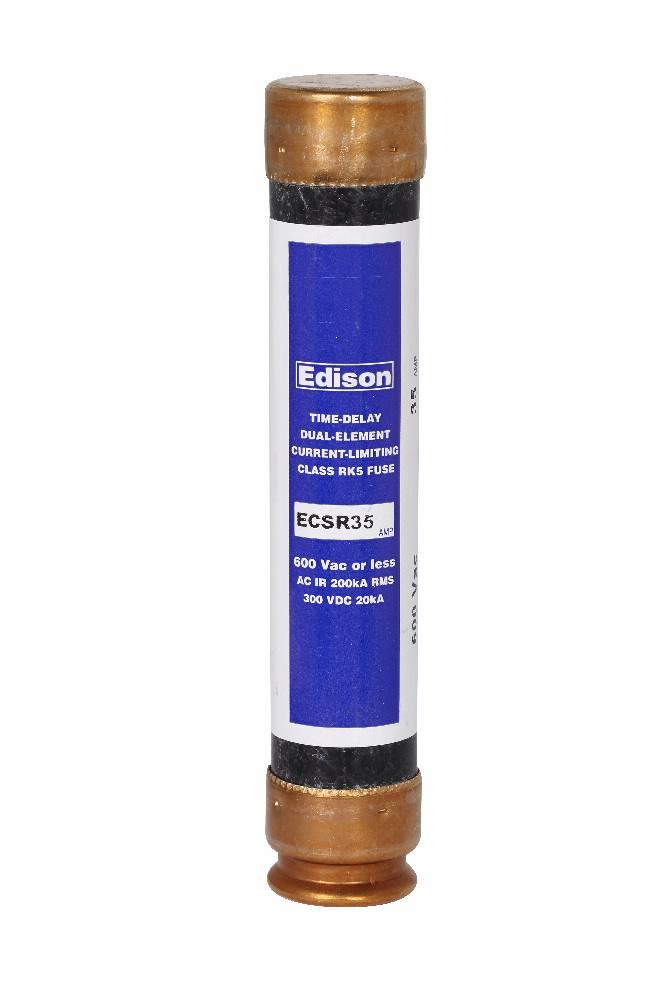

Bussmann Bullet™ ECSR35 Current Limiting Time Delay Fuse, 35 A, 600 V, 200 kAIC Interrupt, RK5 Class

0 Ratings
$13.44
In Stock
SKU: EDIECSR35
GTIN (EAN,ISBN): 00782634508359
noimage_new

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

In Stock
HCI of Jackson: 9
HCI of Dyersburg: 9
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Class RK5 Fuses
Main specs
  • Brand
    Edison
  • UPC
    782634508359
  • Manufacturer Part Number
    ECSR35
  • Country
    USA
Specification
  • Terminal Type
    Ferrule End
  • Material
    Fiberglass
  • Class
    RK5
  • Response Time
    10 s at 500%
  • Type
    Current Limiting Time Delay
  • Voltage Rating
    600 V
  • Amperage Rating
    35 A
  • Series
    ECSR
  • Indicating/Non-Indicating
    Non-Indicating
  • Interrupt Rating
    200 kAIC
  • Body Size
    1.06 in Dia x 5.5 in L
  • Element
    Dual
Features
  • True dual element construction allows sizing of 125% FLA for motor backup protection
  • Superior overload and cycling capabilities
  • Current limiting provides component short-circuit protection
  • Recommended upgrade - class RK1 (LENRK/LESRK) for greater degree of short circuit protection
Additional Information
  • UNSPSC
    39121606
  • IDEA Index ID
    11197083
  • Package Description
    EACH
  • Standards/Approvals
    CE Certified|CSA C22.2 File No.700489/248.12|UL File No.E162363 Guide JDDZ
