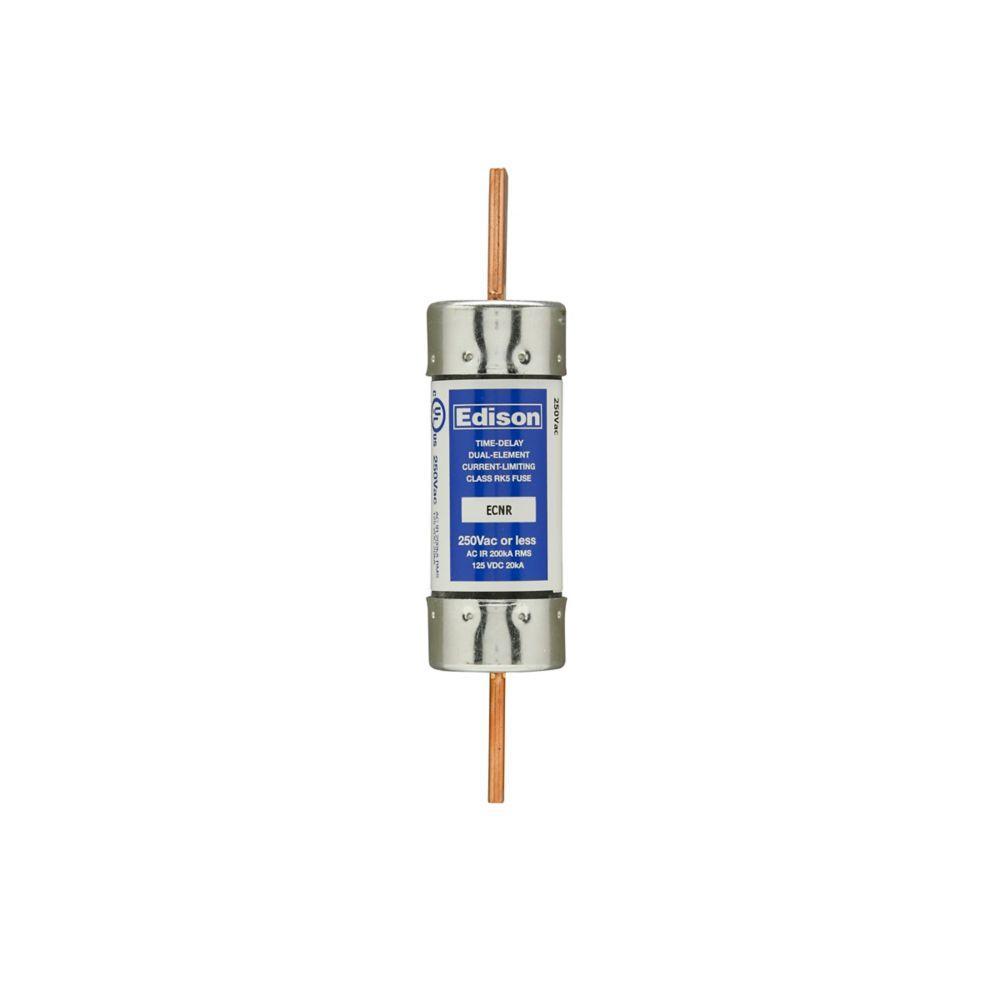

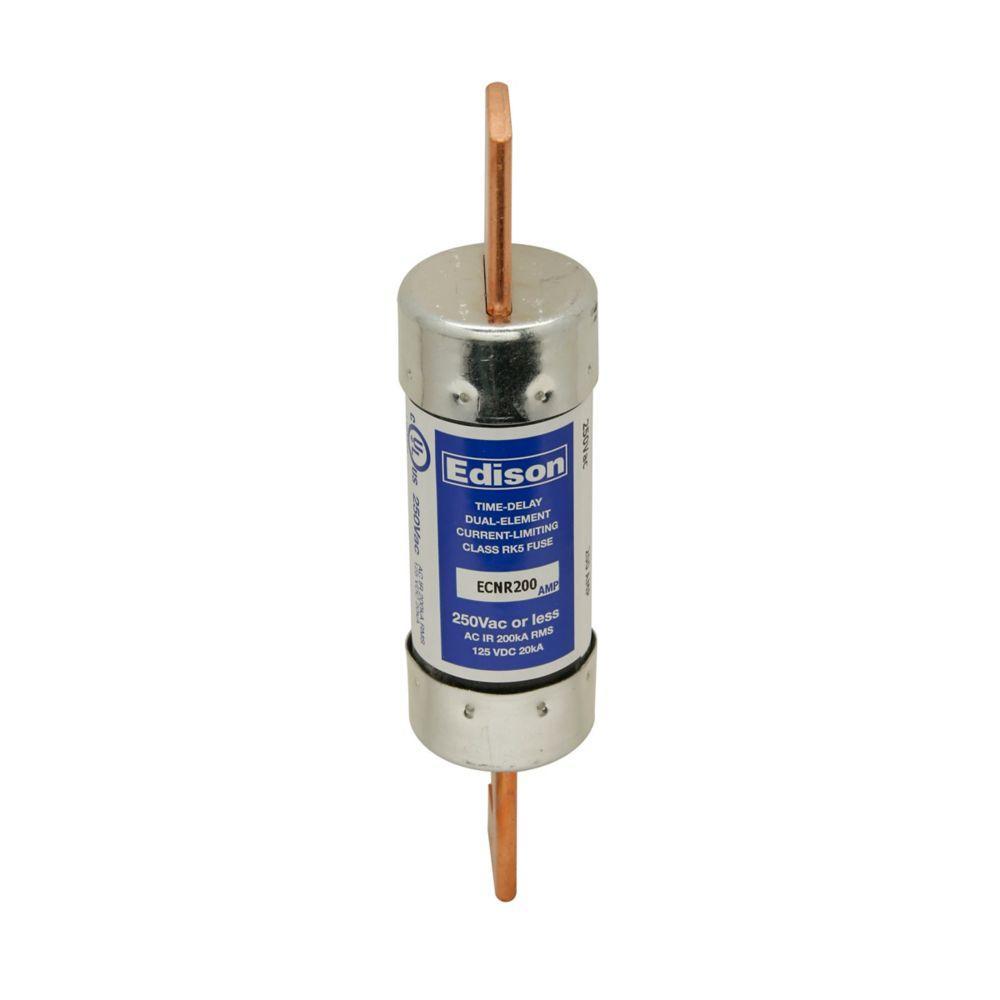

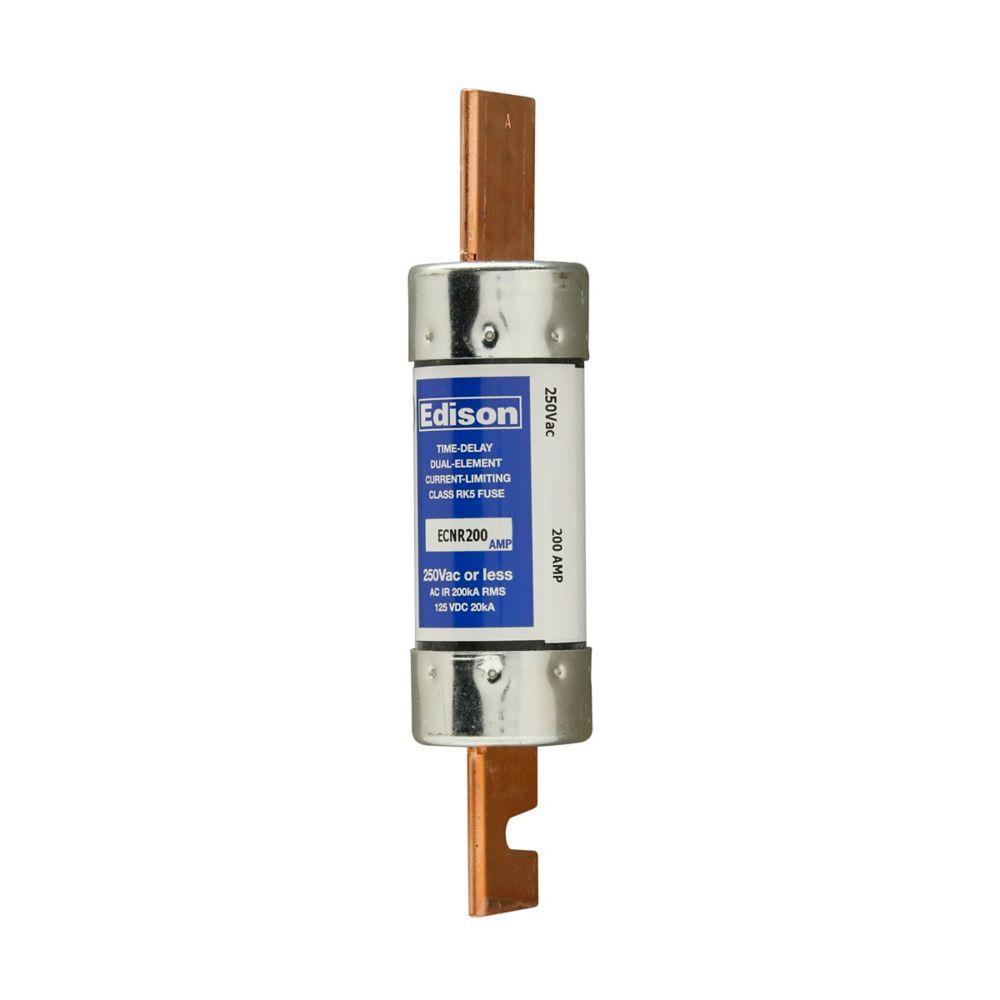

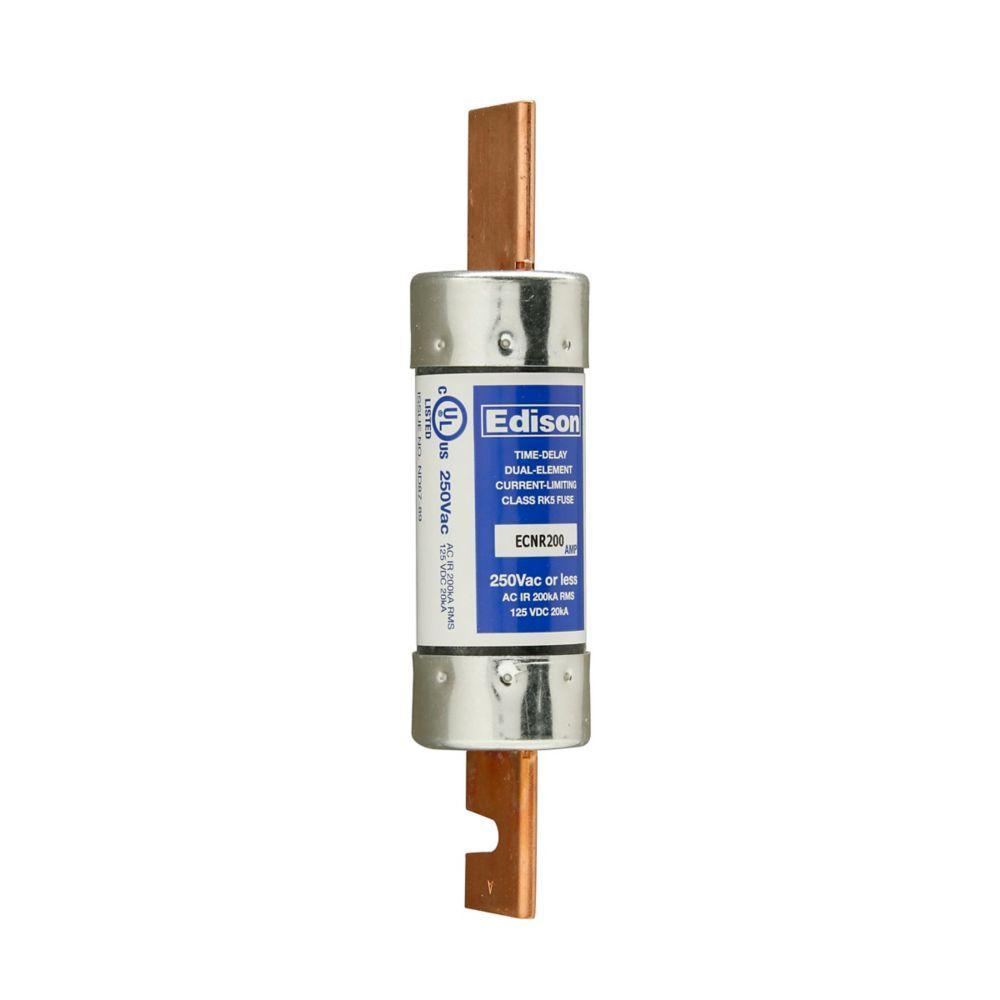

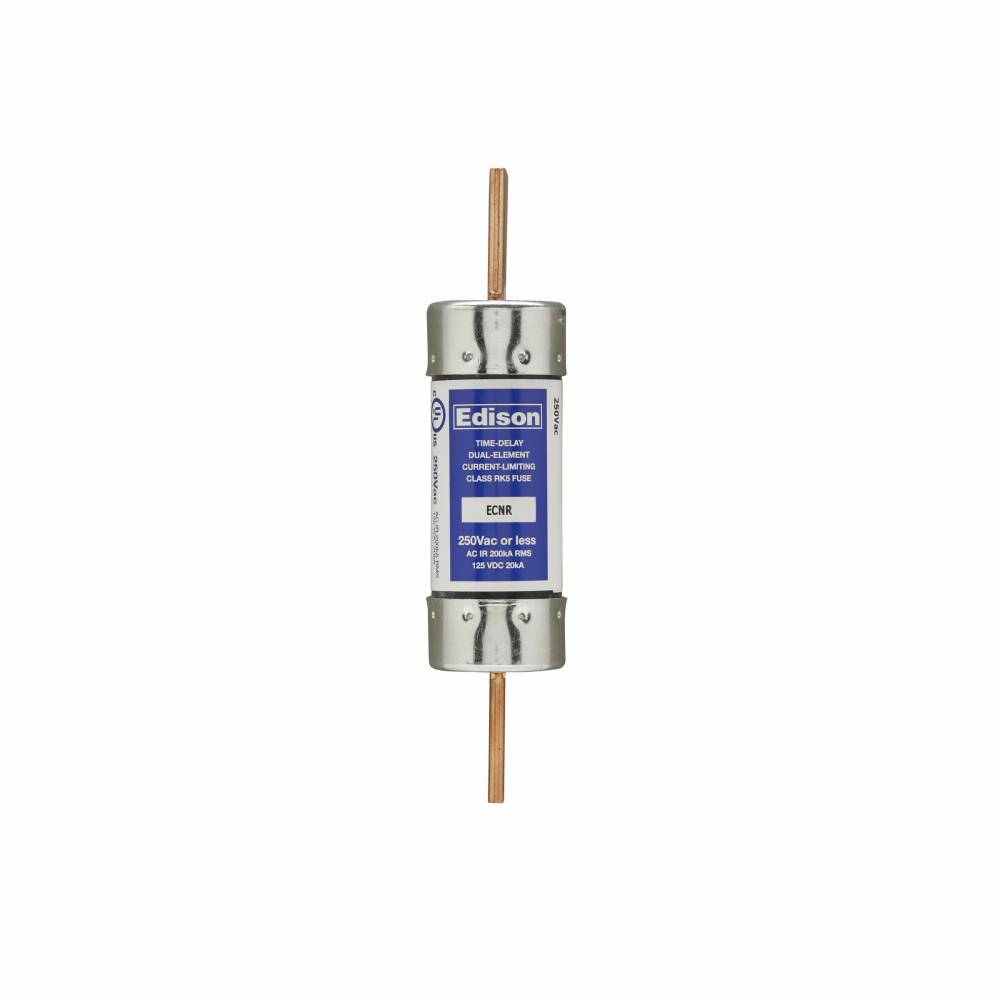

Bussmann Bullet™ ECNR200 Current Limiting Time Delay Fuse, 200 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
-
BrandEdison
-
UPC782634507482
-
Manufacturer Part NumberECNR200
-
CountryUSA
-
Terminal TypeBlade End
-
MaterialFiberglass
-
ClassRK5
-
Response Time10 s at 500%
-
TypeCurrent Limiting Time Delay
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating200 A
-
SeriesECNR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kAIC
-
Body Size1.56 in Dia x 7.13 in L
-
ElementDual
- True dual element construction allows sizing of 125% FLA for motor backup protection
- Superior overload and cycling capabilities
- Current limiting provides component short-circuit protection
- Recommended upgrade - class RK1 (LENRK/LESRK) for greater degree of short circuit protection
- Blade end connection
-
Alternative Part Number11197143
-
UNSPSC39121606
-
IDEA Index ID11197143
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|CSA C22.2 File No.700489/248.12|UL File No.E162363 Guide JDDZ
-
