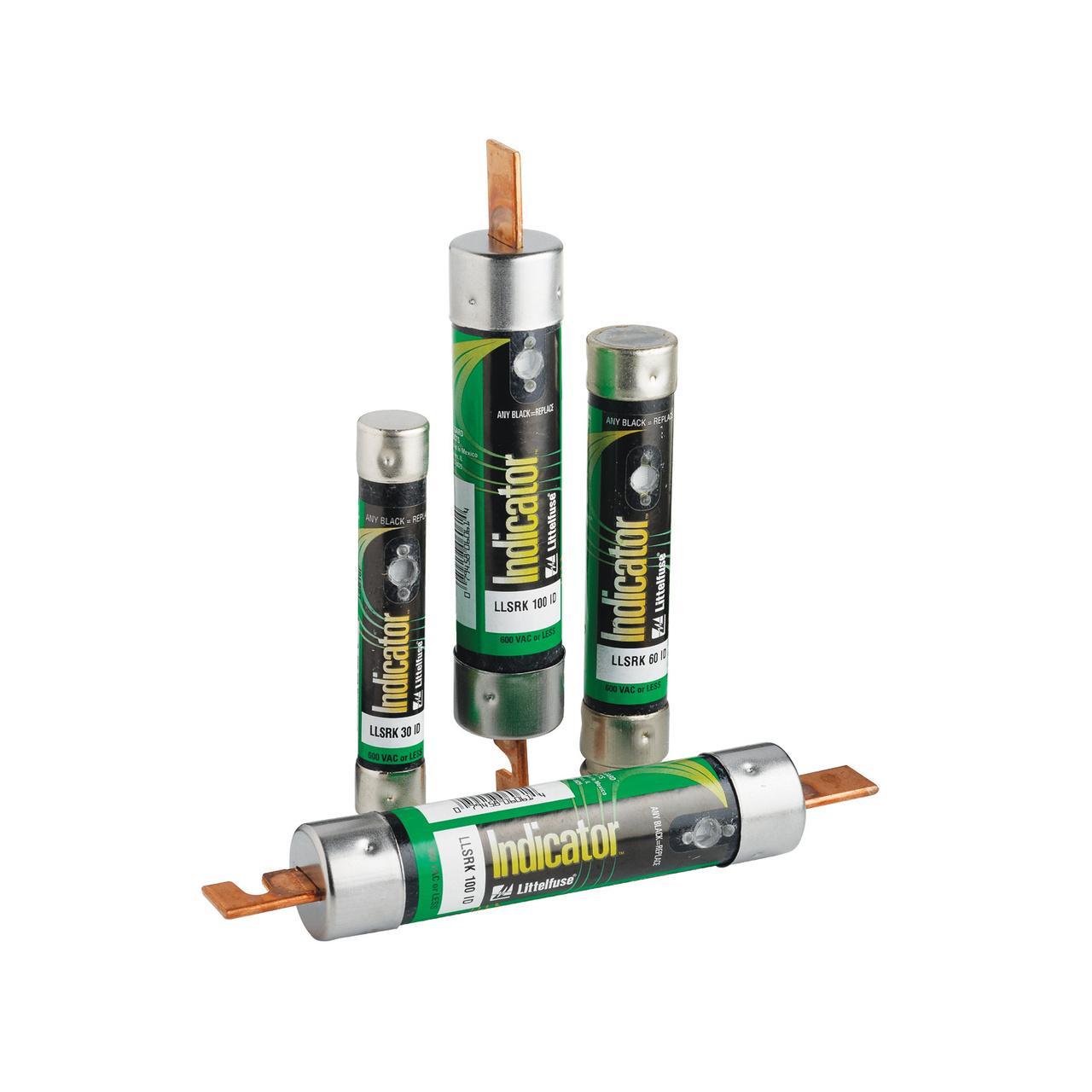

Littelfuse® POWR-GARD® LLSRK100 Current Limiting Time Delay Fuse, 100 A, 600 V AC/300 V DC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Littelfuse® LLNRK and LLSRK series POWR-PRO® fuses provide superior overload and short circuit protection for service entrance, main, feeder and general purpose branch circuits upto 600 A. LLNRK/LLSRK series fuses can be installed in existing Class H fuse blocks to upgrade systems containing lower interrupting rating Class H one-time or renewable fuses.
-
BrandLittelfuse®
-
UPC079458350821
-
Manufacturer Part NumberLLSRK100
-
CountryUSA|Canada
-
Terminal TypeKnife Blade
-
MaterialFiberglass
-
ClassRK1
-
Rejection/Non-RejectionRejection
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/300 V DC
-
Amperage Rating100 A
-
SeriesLLSRK
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200/20 kA
-
Body Size1-5/16 in Dia x 7-7/8 in L
-
Body TypeCartridge
-
ElementDual
- Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions
- Stops damaging short circuits faster than any mechanical protective device
- Reduced costs - current limiting design often permits use of readily available, less costly equipment
- Low resistance design reduces power consumption and utility bills
- Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly
- Eliminates needless downtime caused by power surges or equipment demands
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
-
Alternative Part NumberLSRK100.V|8586530
-
UNSPSC39121609
-
IDEA Index ID8586530
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-12|UL File No. E81895|CSA LR29862|Federal Specification WF-1814|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
