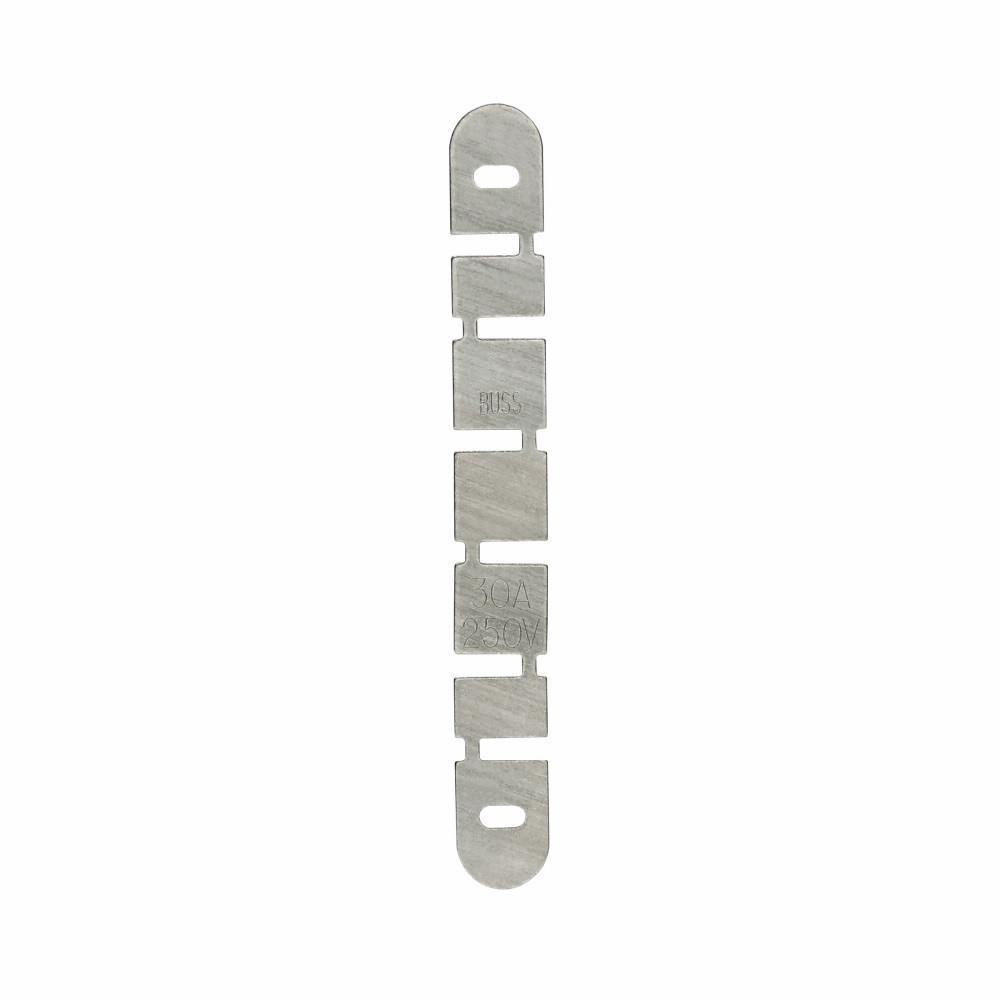

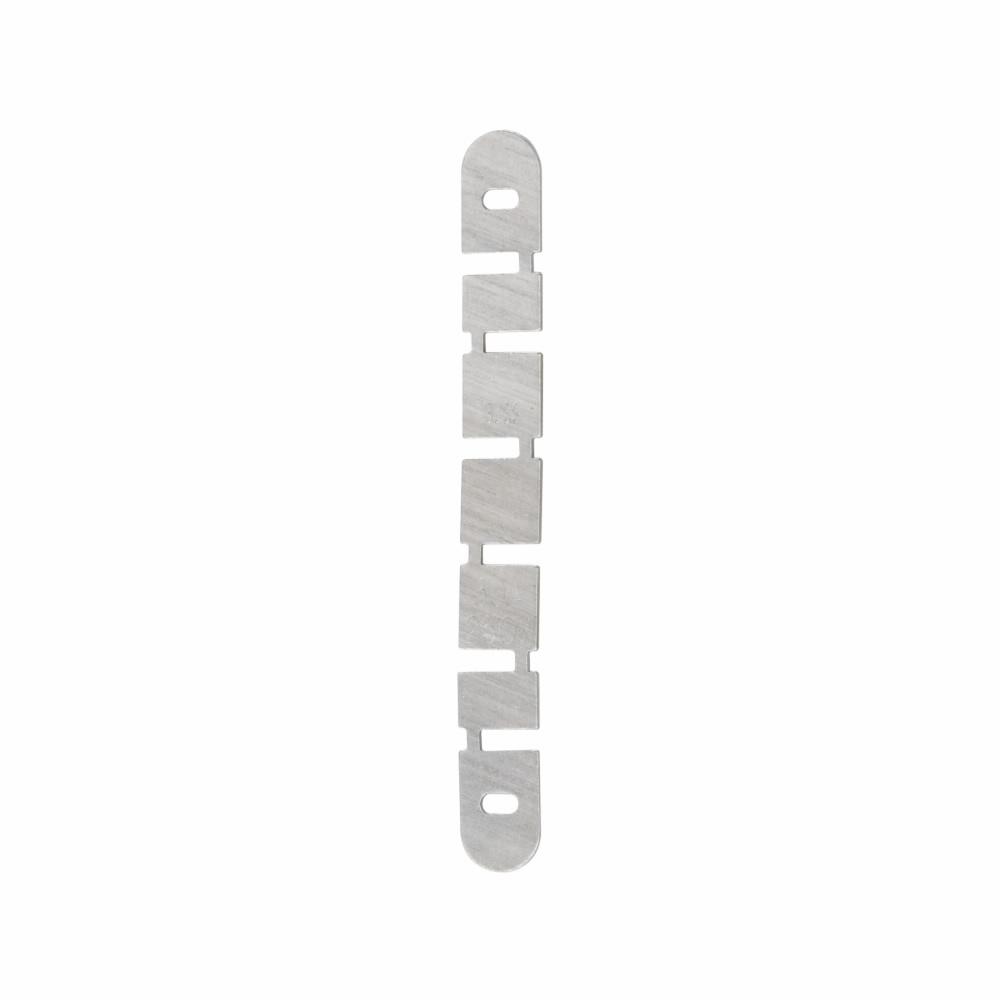

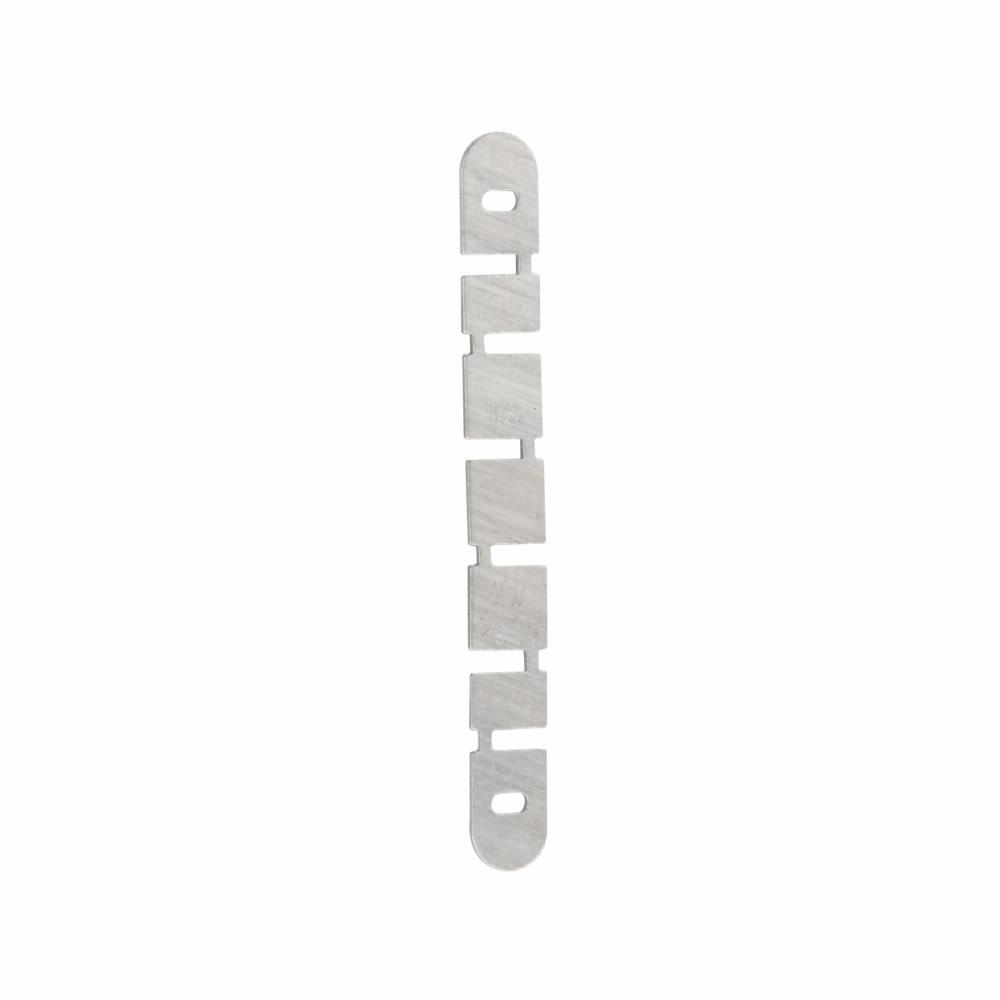

Edison LKN-30 Non-Current Limiting Renewable Fuse Link, 250 V AC, 30 A, For Use With REN-30 Class H 0.81 in Dia x 3 in L Fuse
Edison LKN-30 Non-Current Limiting Renewable Fuse Link, 250 VAC, 30 A, For Use With REN-30 Class H 0.81 in Dia x 3 in L Fuse
-
BrandEdison
-
UPC051712130301
-
Manufacturer Part NumberLKN-30
-
CountryUSA
-
Rated Breaking Capacity10000 A
-
TypeNon-Current Limiting Renewable
-
Mounting TypeStud
-
Voltage Rating250 V AC
-
Amperage Rating30 A
-
SeriesLKN
-
Dimensions3.5 in L x 1.2 in W x 8 in H
-
Suitable For Use WithREN-30 Class H 0.81 in Dia x 3 in L Fuse
- Designed for easy replacement
- No multiple links to complicate replacement
- Buss super-lag renewable fuses with longer time lag than other class H fuses of this type can better sustain overloads without needlessly opening
- Super-lag fuses are used in circuits of industrial and commercial structures where maximum short circuit currents are of a low level (below 10 kA) and frequent outages dictate the economy of the "renewable" type fuse
- These fuses are generally sized at the amperage rating of non-inductive circuits and 300% for motor circuits
-
Alternative Part Number10948211
-
UNSPSC39121606
-
IDEA Index ID10948211
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Specification Sheet
-
Line Drawing
