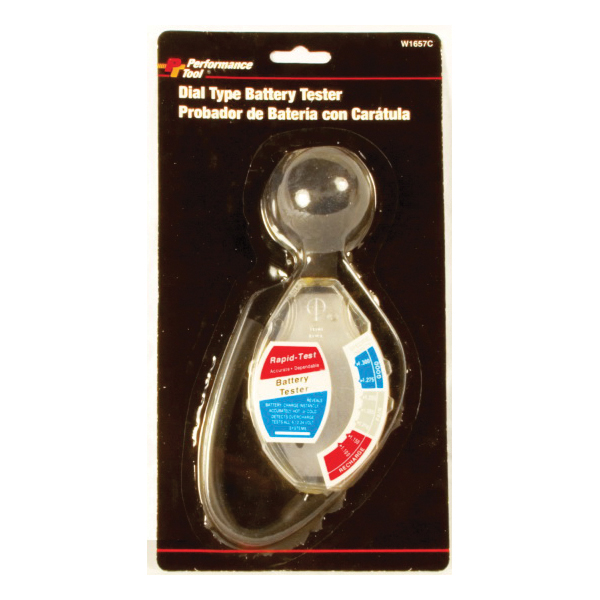

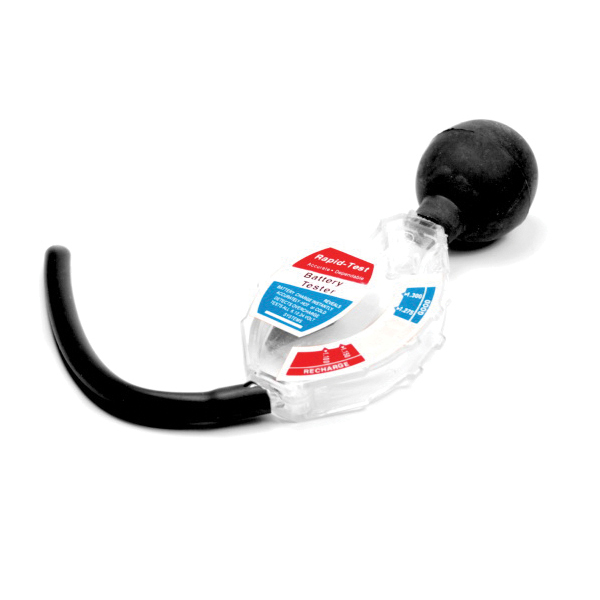

DIAL-STYLE BATTERY ACID TESTERS JWH 578010
Deluxe Battery Tester, 6/12/24 V
-
BrandPerformance Tool™
-
UPC039564125232
-
Manufacturer Part NumberW1657C
-
CountryUSA
-
Capacity6/12/24 V V
-
TypeDeluxe
- Dial indicator style
- Instant reading warm or cold
- Plastic hydrometer
| Cross-Reference Number |
|---|
| 578010 |
-
UNSPSC26111719
-
Package Description6/PK
