KEN FORGING EYEBOLT--USE "NBS" 149-100-0250

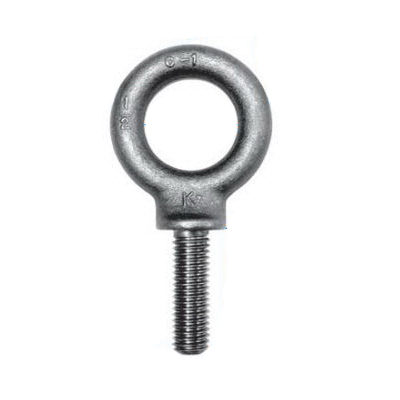

KEN FORGING K2030 Fully Threaded Shoulder Pattern Eye Bolt, 1-8, 2-1/2 in L Shank, Drop Forged Carbon Steel, Self-Colored
-
BrandKEN FORGING
-
Manufacturer Part NumberK2030
-
CountryUSA
-
FinishSelf-Colored
-
Tensile Strength65000 to 90000 psi
-
Thread Length2-1/2 in
-
MaterialDrop Forged Carbon Steel
-
Material SpecificationASTM A489
-
Thread TypeUNC-2A
-
Measurement SystemImperial
-
TypeFully Threaded Shoulder Pattern
-
Working Load9000 lb
-
Shank Length2-1/2 in
-
Diameter - Thread Size1-8
-
Inside Eye Diameter1-13/16 in
-
Outside Eye Diameter3-9/16 in
-
Overall Length6.44 to 6.88 in
-
UNSPSC31161610
-
