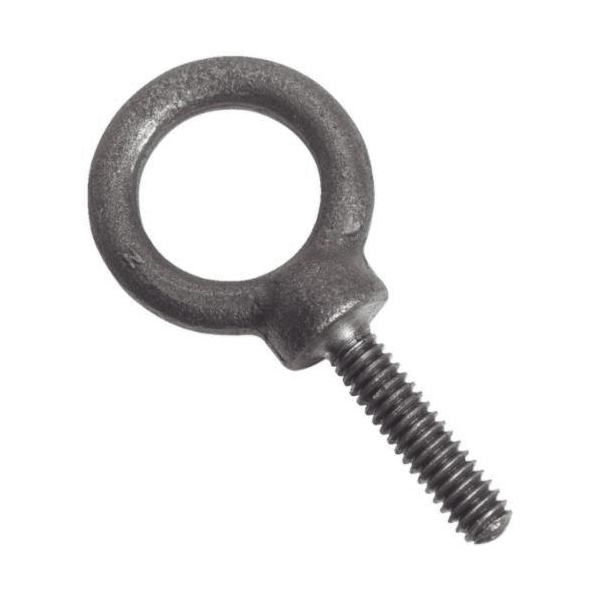

Proto® J94030 Full Threaded Shoulder Pattern Eye Bolt, 1-1/8-7, 2-3/4 in L Shank, Forged Steel, Plain
Proto® J94030 Full Threaded Shoulder Pattern Eye Bolt, 1-1/8-7, 2-3/4 in L Shank, Forged Steel, Plain
-
BrandProto®
-
UPC662679490256
-
Manufacturer Part NumberJ94030
-
CountryUSA
-
FinishPlain
-
Thread Length2-3/4 in
-
MaterialForged Steel
-
Material SpecificationASME B18.15
-
Thread TypeUNC-2A
-
Measurement SystemImperial
-
TypeFull Threaded Shoulder Pattern
-
Working Load12000 lb
-
Shank Length2-3/4 in
-
Diameter - Thread Size1-1/8-7
-
Inside Eye Diameter1.94 to 2.06 in
-
Outside Eye Diameter4.06 in
-
Overall Length7-3/4 in
- Maximum load ratings for eye bolts are drastically reduced when loading at an angle
- Angular loads should be avoided whenever possible
- For angular loads of 15 deg or more
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4R269 |
-
UNSPSC31161610
-
Standards/ApprovalsASME B18.15
-
