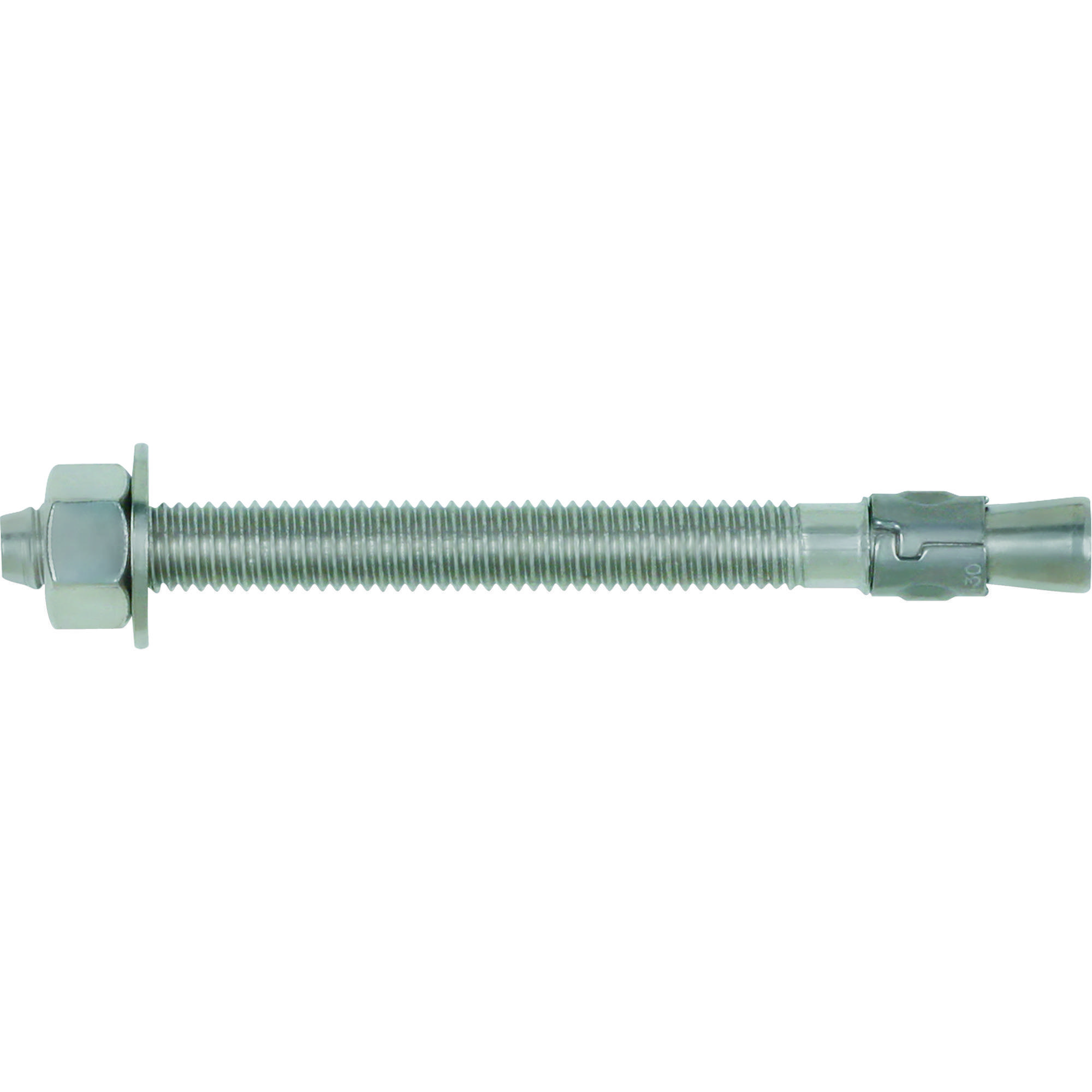

1/4" X 1-3/4" Stainless Steel Concrete Anchors PWR7300
The Power-Stud® Anchor, is a fully threaded, torque controlled, wedge expansion Anchor. It is available in a threaded version suitable for applications in solid concrete and grout filled concrete masonry. The threaded version is produced in Type 304 and Type 316 stainless steel.
-
BrandDeWALT®
-
UPC075352073002
-
Manufacturer Part Number07300-PWR
-
CountryUSA|Canada
-
Tensile Strength1740 lb
-
Thread Length3/4 in
-
Material304 Stainless Steel
-
Thread Size1/4-20
-
Thread TypeUNC
-
Maximum Work Thickness5/8 in
-
Minimum Embedment Depth1-1/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
Shear Strength1620 lb
-
Diameter1/4 in
-
Overall Length1-3/4 in
- Fully threaded, medium duty all-purpose Anchor
- Anchors can be installed through the fixture for hole spotting not required
- Clip design prevents spinning during installation
- Length ID stamped on each threaded Anchor
- Chamfered impact section prevents damage to threads
- Nominal drill bit diameter same as Anchor diameter
- Ultimate load capacity: 1240 lb tensile strength when embedded in 2000 psi, 1440 lb tensile strength when embedded in 4000 psi and 1740 lb tensile strength when embedded in 6000 psi compressive strength concrete
- Ultimate load capacity: 1580 lb shear strength when embedded in 2000 psi, 1620 lb shear strength when embedded in 4000/6000 psi compressive strength concrete
- Allowable load capacity - 310 lb tensile strength when embedded in 2000 psi, 360 lb tensile strength when embedded in 4000 psi and 435 lb tensile strength when embedded in 6000 psi compressive strength concrete
- Allowable load capacity - 395 lb shear strength when embedded in 2000 psi and 405 lb shear strength when embedded in 4000/6000 psi compressive strength concrete
- Ultimate load capacity - 720 lb tensile strength when embedded in 3000 psi, 960 lb tensile strength when embedded in 4000 psi and 1200 lb tensile strength when embedded in 5000 psi compressive strength concrete in structural lightweight concrete
- Ultimate load capacity - 720 lb shear strength when embedded in 3000 psi compressive strength concrete in structural lightweight concrete
- Allowable load capacity - 180 lb tensile strength when embedded in 3000 psi, 240 lb tensile strength when embedded in 4000 psi and 300 lb tensile strength when embedded in 5000 psi compressive strength concrete in structural lightweight concrete
- Allowable load capacity - 180 lb shear strength when embedded in 3000 psi compressive strength concrete in structural lightweight concrete
- Ultimate load capacity - 1230 lb tensile strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
- Ultimate load capacity - 1230 lb shear strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
- Allowable load capacity - 245 lb tensile strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
- Allowable load capacity - 245 lb shear strength when embedded in 1500 psi compressive strength concrete in grout-filled concrete masonry
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140556 |
-
UNSPSC31162102
-
Package Description100/BX
-
Standards/ApprovalsASTM E488|GSA CID-A-A-1923A Type 4|UL EX1289
-
