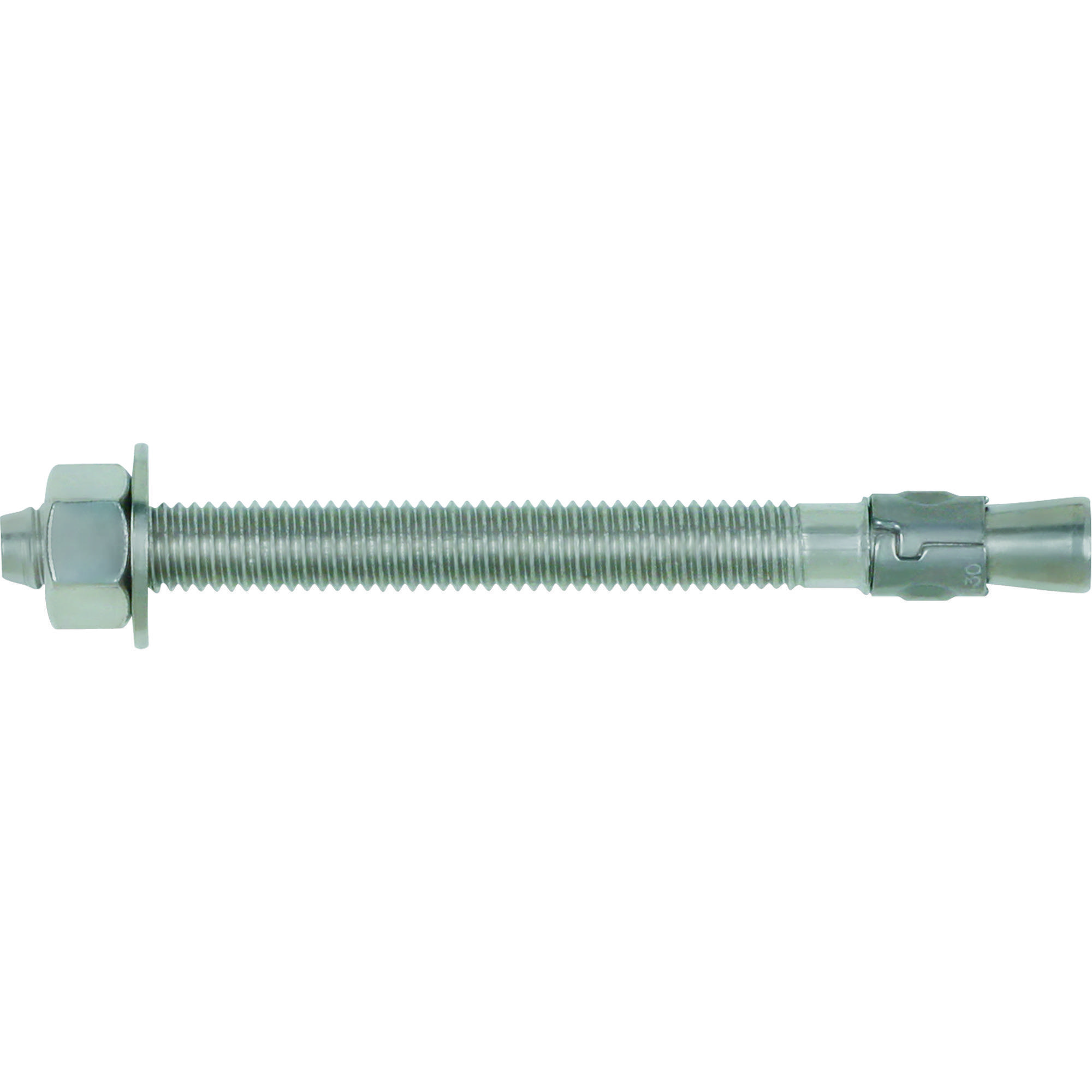

POWERS 3/4" X 10" S/STEEL CONCRETE ANCHOR PWR 7349
The Power-Stud® anchor, is a fully threaded, torque controlled, Wedge Expansion Anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in type 304 and type 316 stainless steel.
-
BrandDeWALT®
-
UPC075352073491
-
Manufacturer Part Number07349-PWR
-
CountryUSA|Canada
-
Thread Length8-1/8 in
-
Material304 Stainless Steel
-
Thread Size3/4-10
-
Thread TypeUNC
-
Maximum Work Thickness6-5/8 in
-
Minimum Embedment Depth3-3/8 in
-
Head TypeThreaded Stud
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length10 in
- Fully threaded, medium duty all purpose anchor
- Anchors can be installed through the fixture for hole spotting not required
- Clip design prevents spinning during installation
- Length ID stamped on each threaded anchor
- Chamfered impact section prevents damage to threads
- Nominal drill bit size is the same as the anchor diameter
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2140582 |
-
UNSPSC31162102
-
Standards/ApprovalsASTM E488|Federal GSA Specification Meets the Descriptive and Proof Load requirements of CID A-A-1923A, Type 4|UL EX1289
-
Specification Sheet
