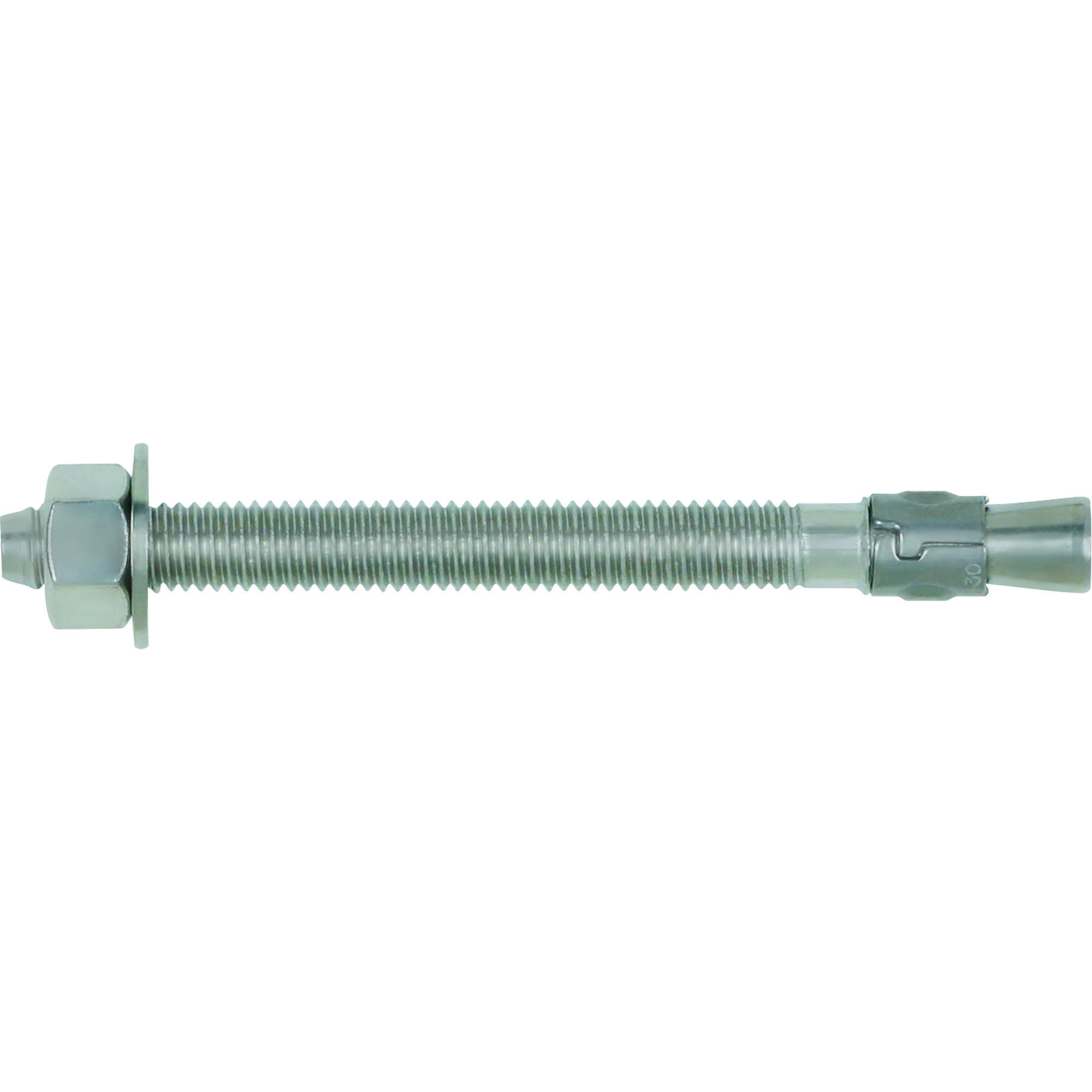

5/8" X 3-1/2" Stainless Steel CONCRETE ANCHORS PWR7330
5/8" X 3-1/2" Stainless Steel CONCRETE WEDGE EXPANSION ANCHORS
-
BrandDeWALT®
-
UPC075352073309
-
Manufacturer Part Number07330-PWR
-
CountryUSA|Canada
-
Tensile Strength8300/9860 lb
-
Thread Length2 in
-
Material304 Stainless Steel
-
Thread Size5/8-11
-
Thread TypeFully Threaded
-
Maximum Work Thickness3/4 in
-
Minimum Embedment Depth2-3/4 in
-
TypeExpansion
-
Shear Strength11900 lb
-
Diameter5/8 in
-
Overall Length3-1/2 in
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140570 |
-
UNSPSC31162102
-
Standards/ApprovalsASTM E488|GSA: CID-A-A-1923A Type 4|FM Approved|UL Listed
-
Specification Sheet
Recently Viewed
5/8" X 3-1/2" Stainless Steel CONCRETE WEDGE EXPANSION ANCHORS
The Screw-Bolt+â„¢ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+â„¢ finish is available in bright zinc plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.
The Power-Stud® anchor, is a fully threaded, torque controlled, Wedge Expansion Anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in type 304 and type 316 stainless steel.
