1" X 9" ZINC CONCRETE ANCHORS PWR7463

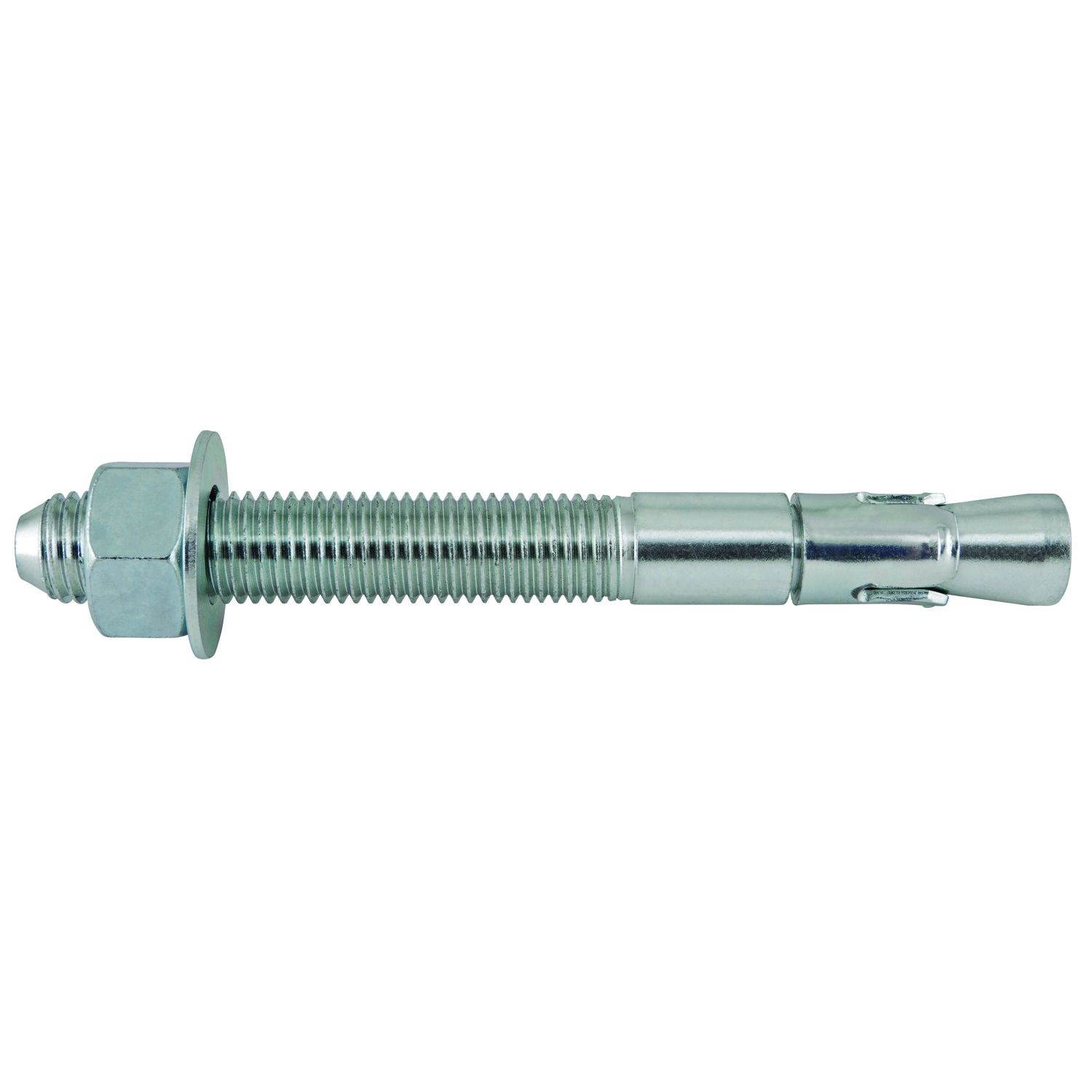

The Power-StudĀ®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALTĀ®
-
UPC075352780184
-
Manufacturer Part Number7463SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength15680 lb
-
Thread Length5-3/8 in
-
MaterialCarbon Steel
-
Thread Size1-8
-
Thread TypeUNC
-
Maximum Work Thickness3-1/2 in
-
Minimum Embedment Depth1-1/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength21155 lb
-
Diameter1 in
-
Drill Size1 in
-
Overall Length9 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
- Ultimate load capacity: 12400 lb tensile strength when embedded in 2500 psi, 13580 lb tensile strength when embedded in 3000 psi and 15680 lb tensile strength when embedded in 4000 psi compressive strength concrete
- Nominal drill bit size is the same as the anchor diameter
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140552 |
-
Alternative Part Number7463SD1
-
UNSPSC31162102
-
Includes
-
Package Description10/BX
-
Standards/Approvals2015 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|UL EX1289|ICC-ES AC01, ESR-2818/2966|UL Listed
-
Catalog
-
Specification Sheet
