3/4" X 6-1/4" CONCRETE ANCHORS PWR7444

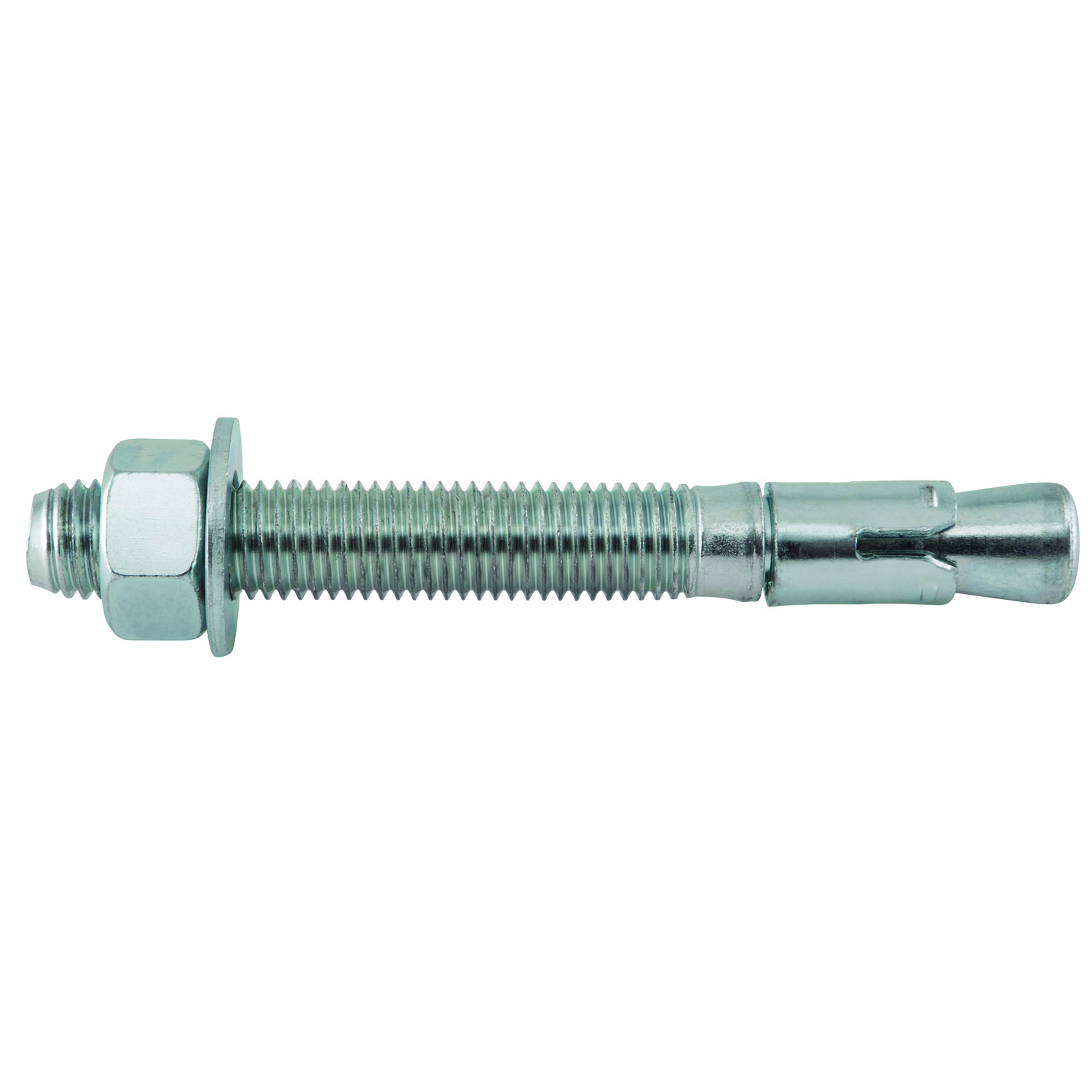

The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC075352781198
-
Manufacturer Part Number7444SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength9075 lb
-
Thread Length3-3/4 in
-
MaterialCarbon Steel
-
Thread Size3/4-10
-
Thread TypeUNC
-
Maximum Work Thickness2-1/8 in
-
Minimum Embedment Depth3-3/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength12580 lb
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length6-1/4 in
- Consistent performance in high and low strength concrete
- Ultimate load capacity - 8850 lb shear strength when embedded in 1500 psi, 9375 lb shear strength when embedded in 2000 psi at 12 in minimum edge/end distance and 10200 lb shear strength when embedded in 1500 psi, 10800 lb shear strength when embedded in 2000 psi at 20 in minimum edge/end distance grout-filled concrete masonry wall faces
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
- Ultimate load capacity: 7180 lb tensile strength when embedded in 2500 psi, 7860 lb tensile strength when embedded in 3000 psi and 9075 lb tensile strength when embedded in 4000 psi compressive strength concrete
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140543 |
-
Alternative Part Number7444SD1
-
UNSPSC31162102
-
Includes
-
Package Description20/BX
-
Standards/Approvals2015 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|UL EX1289|ICC-ES AC01, ESR-2818/2966|UL Listed
-
