3/4" X 5-1/2" CONCRETE ANCHORS PWR7442

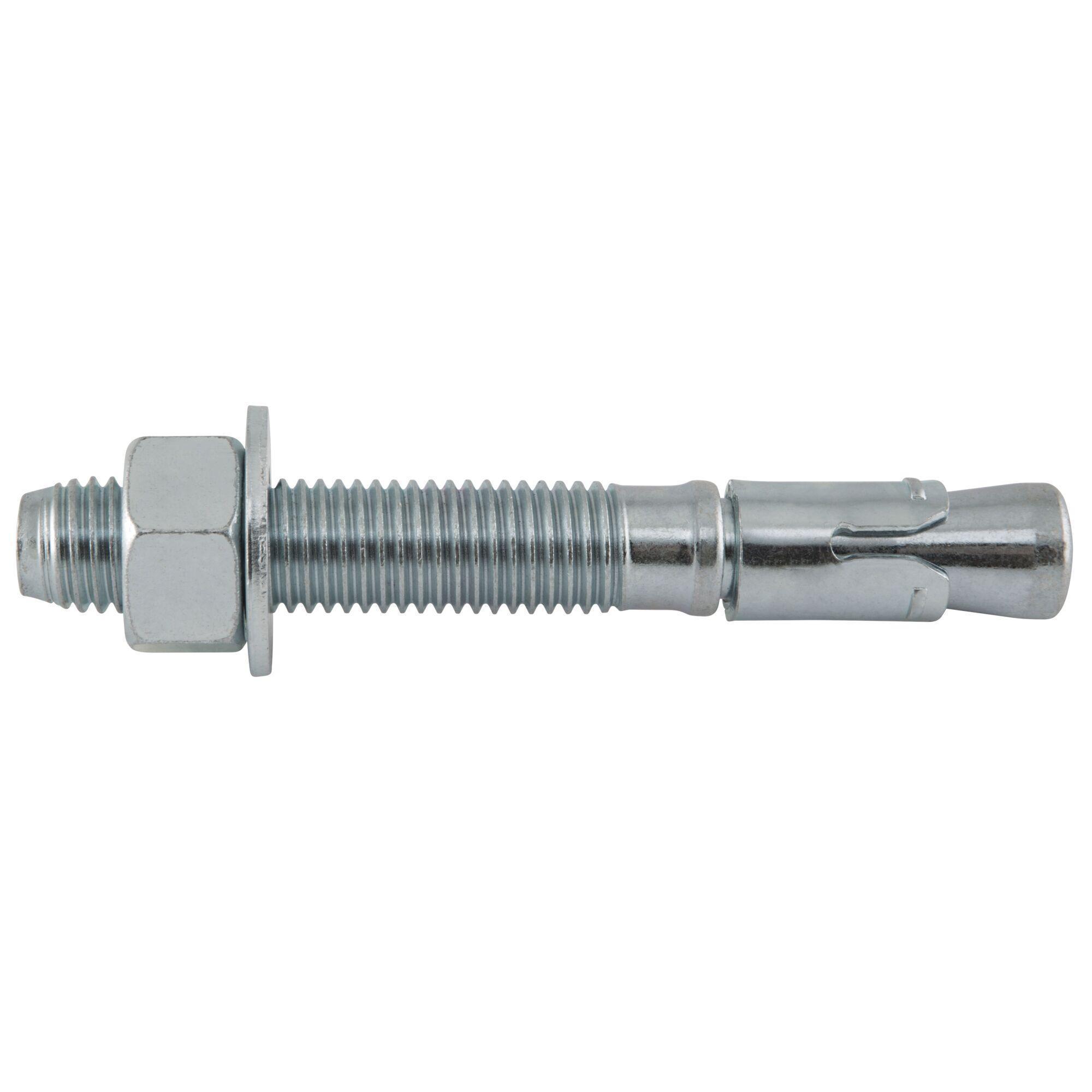

The Power-Stud anchor is a fully threaded, torque-controlled, wedge expansion anchor. It is available in threaded, rod hanger and tie-wire versions suitable for applications in solid concrete and grout filled concrete masonry. The carbon steel threaded version is suitable for a variety of applications. The drill bit diameter necessary for proper installation is the same as the anchor diameter.
-
BrandDeWALT®
-
UPC075352781174
-
Manufacturer Part Number7442SD1
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength7860 lb
-
Thread Length3 in
-
MaterialCarbon Steel
-
Thread Size3/4-10
-
Thread TypeUNC
-
Maximum Work Thickness1-3/8 in
-
Minimum Embedment Depth3-3/8 in
-
TypeExpansion
-
Head TypeHex
-
SeriesSD1
-
Shear Strength12685 lb
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length5-1/2 in
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes

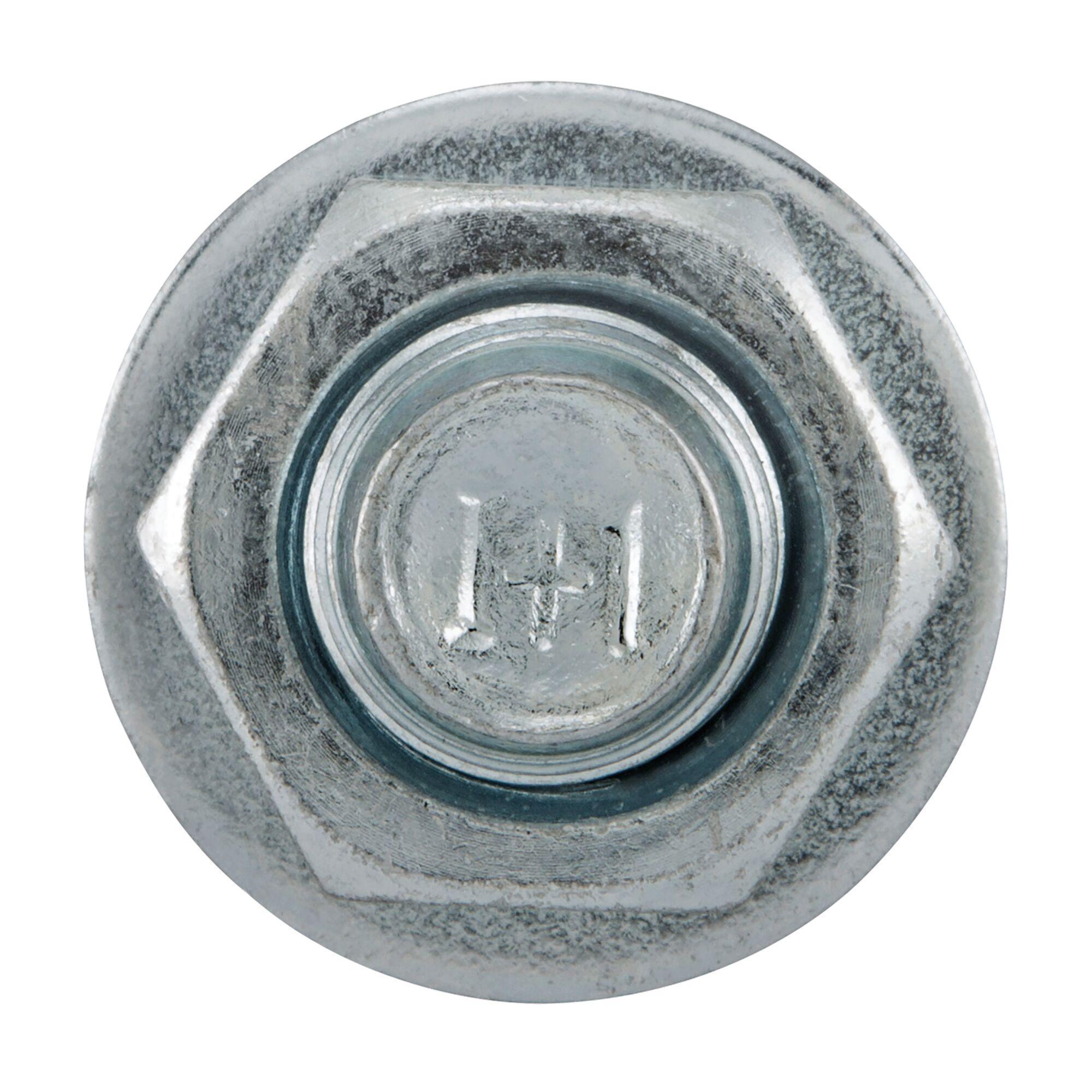

- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
-
Alternative Part Number15600975|7442SD1-PWR
-
UNSPSC31162102
-
IDEA Index ID15600975
-
Includes
-
Package Description20/BX
-
Standards/ApprovalsICC-ES AC01, ESR-2818/2966|UL Listed|2015 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|UL EX1289
-
