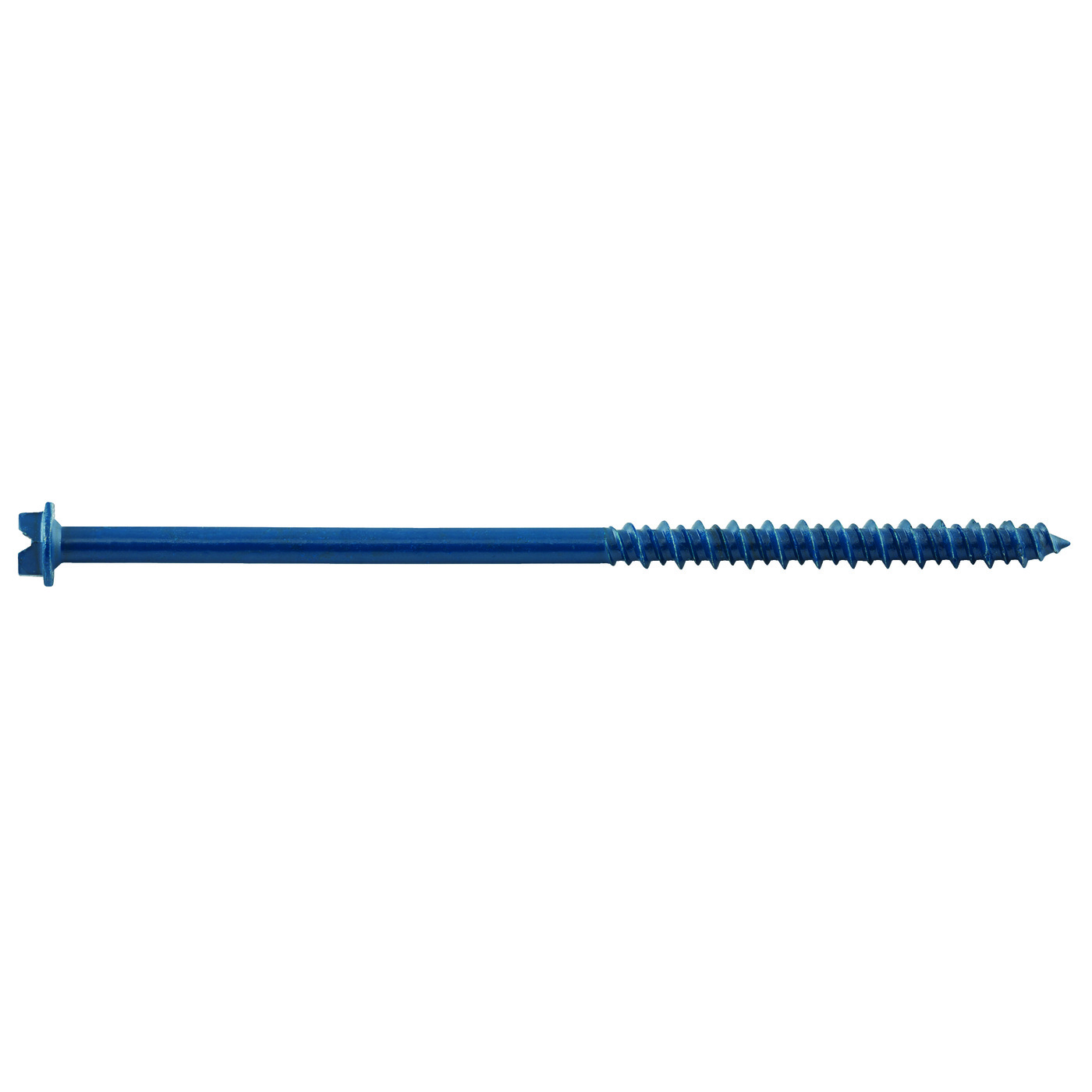

3/16" x 2-1/4" Hex Head Tap Screw PWR2704
The UltraCon®+ fastening system is a complete family of screw anchors for light to medium duty applications. The UltraCon®+ is fast and easy to install and provides a neat, finished appearance. The UltraCon®+ screw anchor is engineered with matched tolerance drill bits and installation tools designed to meet the needs of the user and also provide optimum performance. The UltraCon®+ features a gimlet point for self drilling into wood base materials without pre-drilling. The UltraCon®+ screw anchor is available in carbon steel with a Stalgard® coating in several colors. Head styles include a slotted hex washer head, Phillips® flat head, Phillips® flat trimfit and hex flange washer head.
-
BrandDeWALT®
-
UPC075352317342
-
Manufacturer Part NumberDFM12704
-
CountryUSA
-
FinishBlue Stalgard® Coated
-
MaterialCarbon Steel
-
Head Drive TypeHex
-
Head Size1/4 in
-
Applicable MaterialsConcrete, Masonry Block, Brick, Wood
-
Diameter3/16 in
-
Drill Size5/32 in
-
Overall Length2-1/4 in
- Good corrosion protection with Stalgard® coating
- Removable (reusable in wood)
- Gimlet point for self-drilling into wood base material
- High low thread design for greater stability and grip
-
UNSPSC31162104
-
Package DescriptionEACH
-
Standards/ApprovalsICC-ES ESR-3068|ICC-ES ESR-3042|ICC-ES ESR-3196|ICC-ES ESR-3213|Miami-Dade County Approved|Florida Building Code
-
Specification Sheet
