3/4" X 8" WEDGE BOLT ANCHORS PWR7288

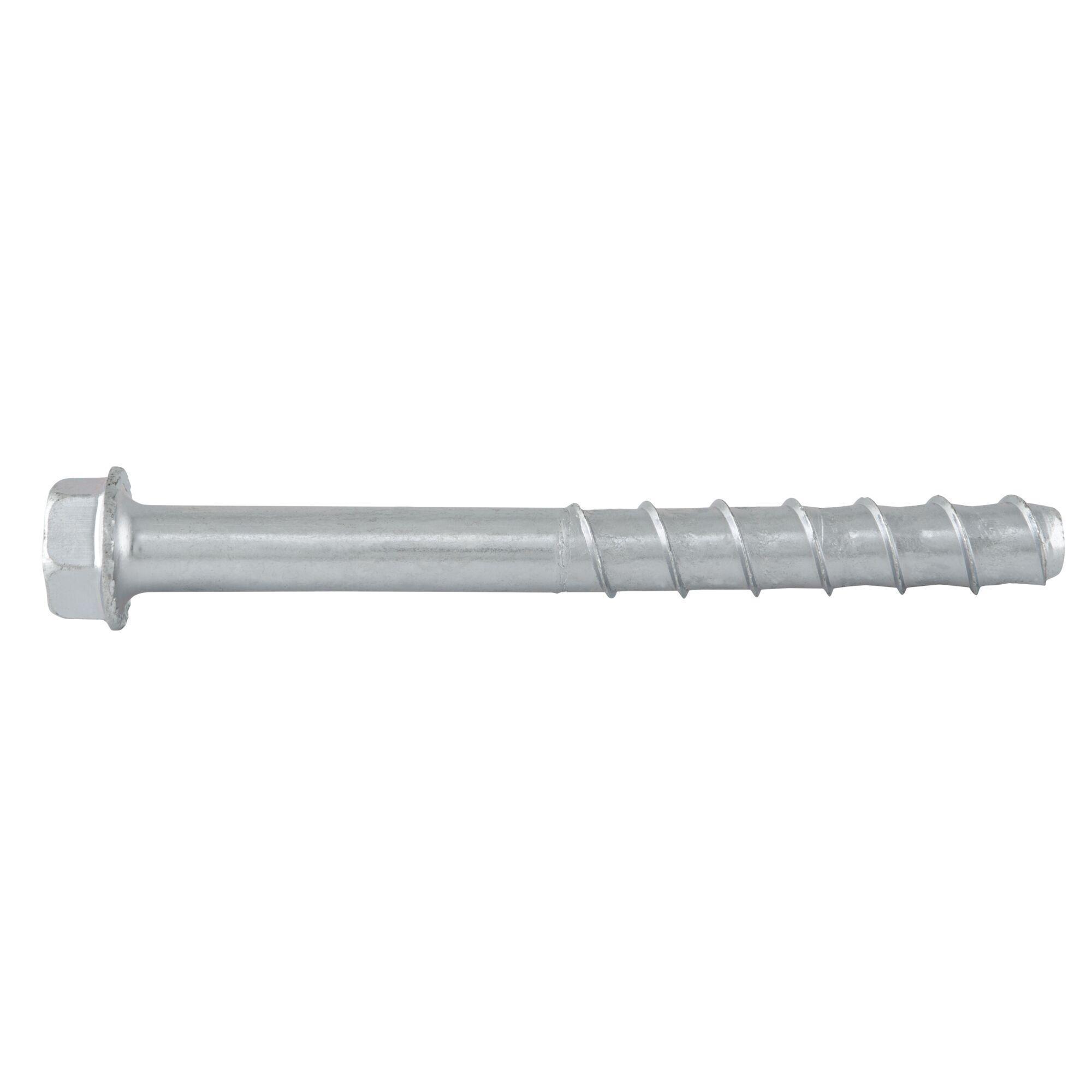

The Screw-Bolt+™ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ finish is available in bright zinc plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.
-
BrandDeWALT®
-
UPC075352305172
-
Manufacturer Part NumberPFM1411840
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength6035/6610/7635/9350 lb
-
MaterialSteel
-
Maximum Work Thickness5-1/2 in
-
Minimum Embedment Depth2-1/2 in
-
TypeHigh Performance
-
Head Drive TypeHex
-
Head Size1-1/8 in
-
Applicable MaterialsNormal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick
-
Shear Strength11615/12725/14690/17995/20775 lb
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length8 in
- Designed for standard ANSI tolerance drill bits
- Tough threads for tapping high strength concrete
- Can be installed closer to the edge than traditional expansion anchors
- Fast installation with powered impact wrench
- 1-piece, finished head design
- Patented thread design offers low installation torque
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and re-installable in same hole

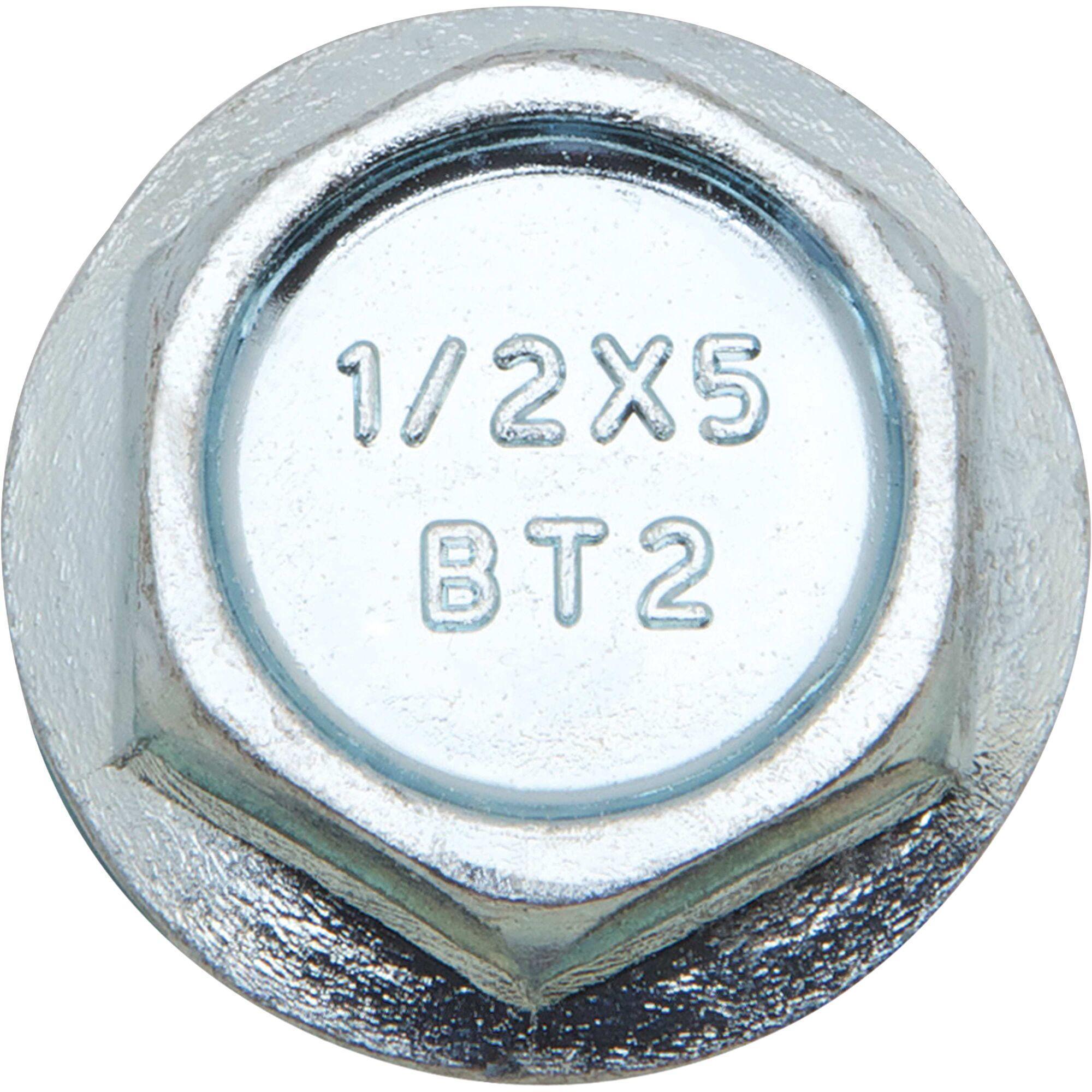

- Diameter, length and identifying marking stamped on head of each anchor
- 11615/12725/14690/17995/20775 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength
- 6035/6610/7635/9350/9350 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete tensile strength
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 11572568 |
-
UNSPSC31162104
-
Standards/ApprovalsICC-ES ESR-3889|ICC-ES ESR-4042|2015 IBC|2015 IRC|2012 IBC|2012 IRC|2009 IBC|2009 IRC|ACI 355.2|ICC-ES AC193
-
