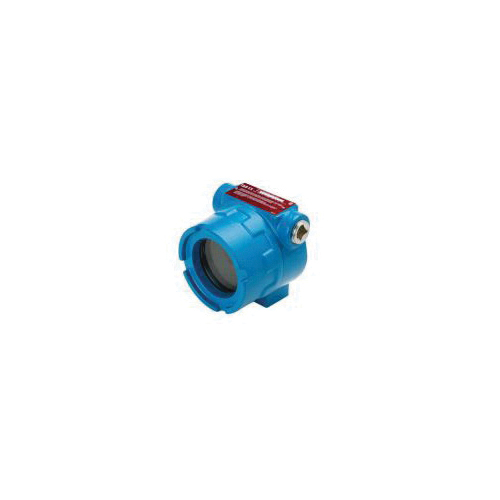

T&B® XPIHSLDGC2 Single End Small Explosionproof Enclosure, 5-3/4 in L, NEMA 4X/7BCD/9EFG/IP66, Cast Copper-Free Aluminum
T&B® XPIHSLDGC2 Single End Small Explosionproof Enclosure, 5-3/4 in L, NEMA 4X/7BCD/9EFG/IP66, Cast Copper-Free Aluminum
-
BrandT&B®
-
UPC786210130552
-
Manufacturer Part NumberXPIHSLDGC2
-
CountryUSA
-
Cable Entry Size1/2 in NPT
-
FinishPolyester Powder Coated
-
MaterialCast Copper-Free Aluminum
-
ColorSafety Blue
-
TypeSingle End Small Explosionproof
-
Mounting TypeHole
-
NEMA RatingNEMA 4X/7BCD/9EFG/IP66
-
Cover TypeDome Glass
-
SeriesXPIH
-
Length5-3/4 in
- XPIH explosionproof instrument housings provide dependable protection for meters, instruments, control devices and terminal blocks
- Offset feed-through hubs for greater interior space
- These housings carry NEMA 4X for watertight applications
- Cover opening inside diameter from 2-5/16 to 4-1/16 in
- To provide convenient access to conductors for maintenance and future system changes
- (4) 1/4-20 UNC hole
- Sand cast copper-free aluminum, nitrile rubber gasket, stainless steel hardware
-
Alternative Part Number7TAA137450R0139|14126208
-
UNSPSC39121314
-
IDEA Index ID14126208
-
Standards/ApprovalscULus Listed|CSA 22.2 File No. 30/25|UL 50|UL 1203|Class I Div 1 2 Group B C D|Class II Div 1 2 Group E F G|Class III
-
Specification Sheet
-
Full Engineering Drawing
