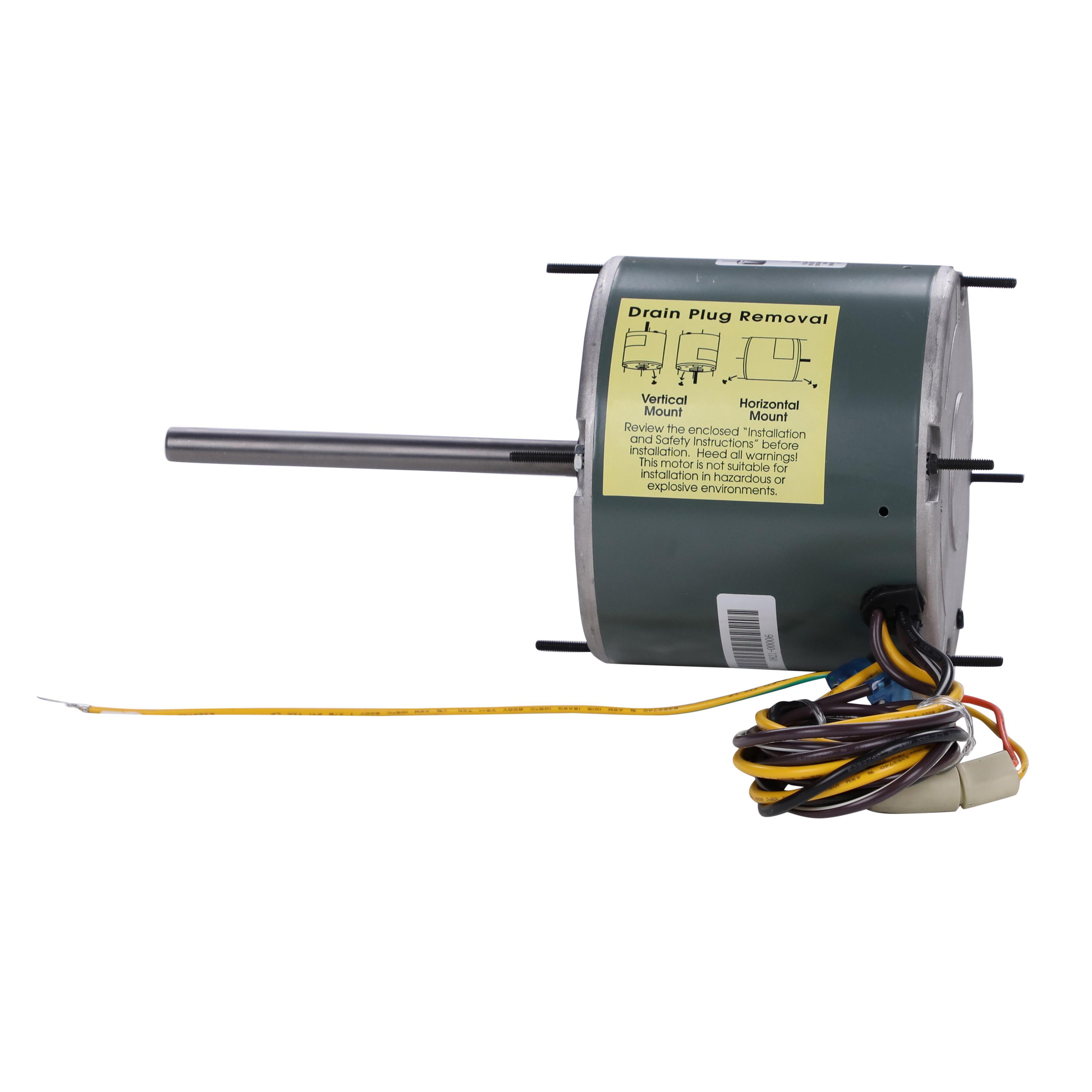

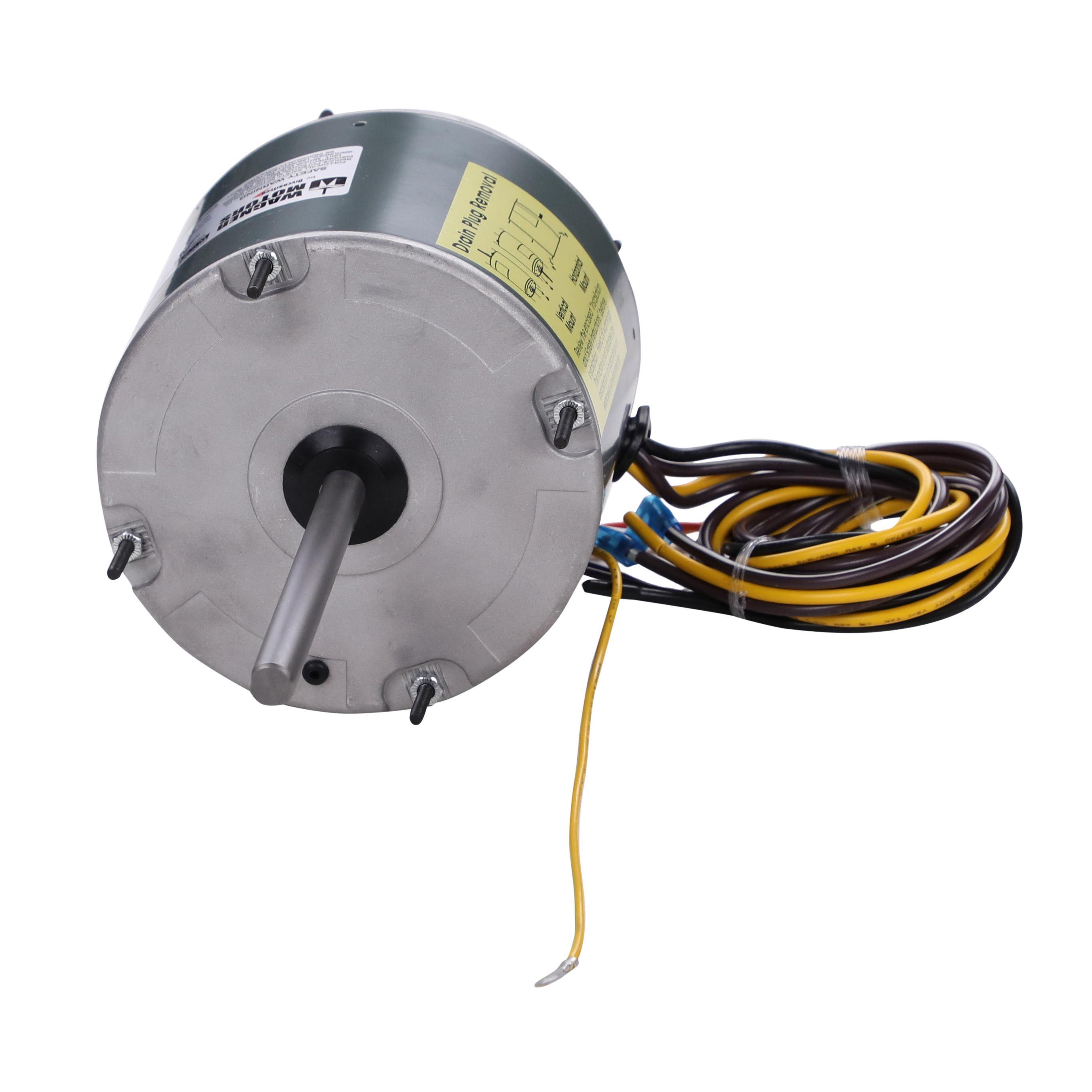

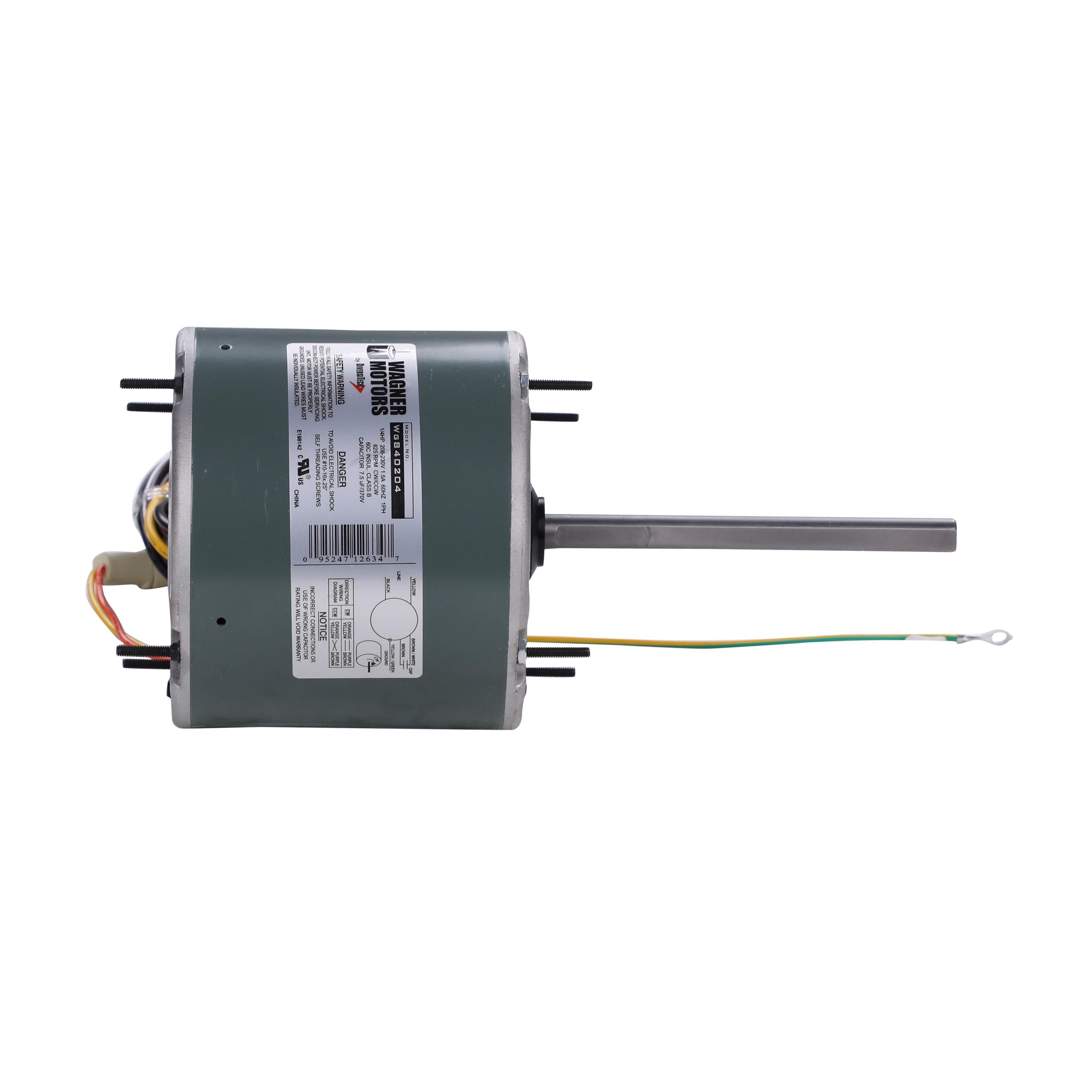

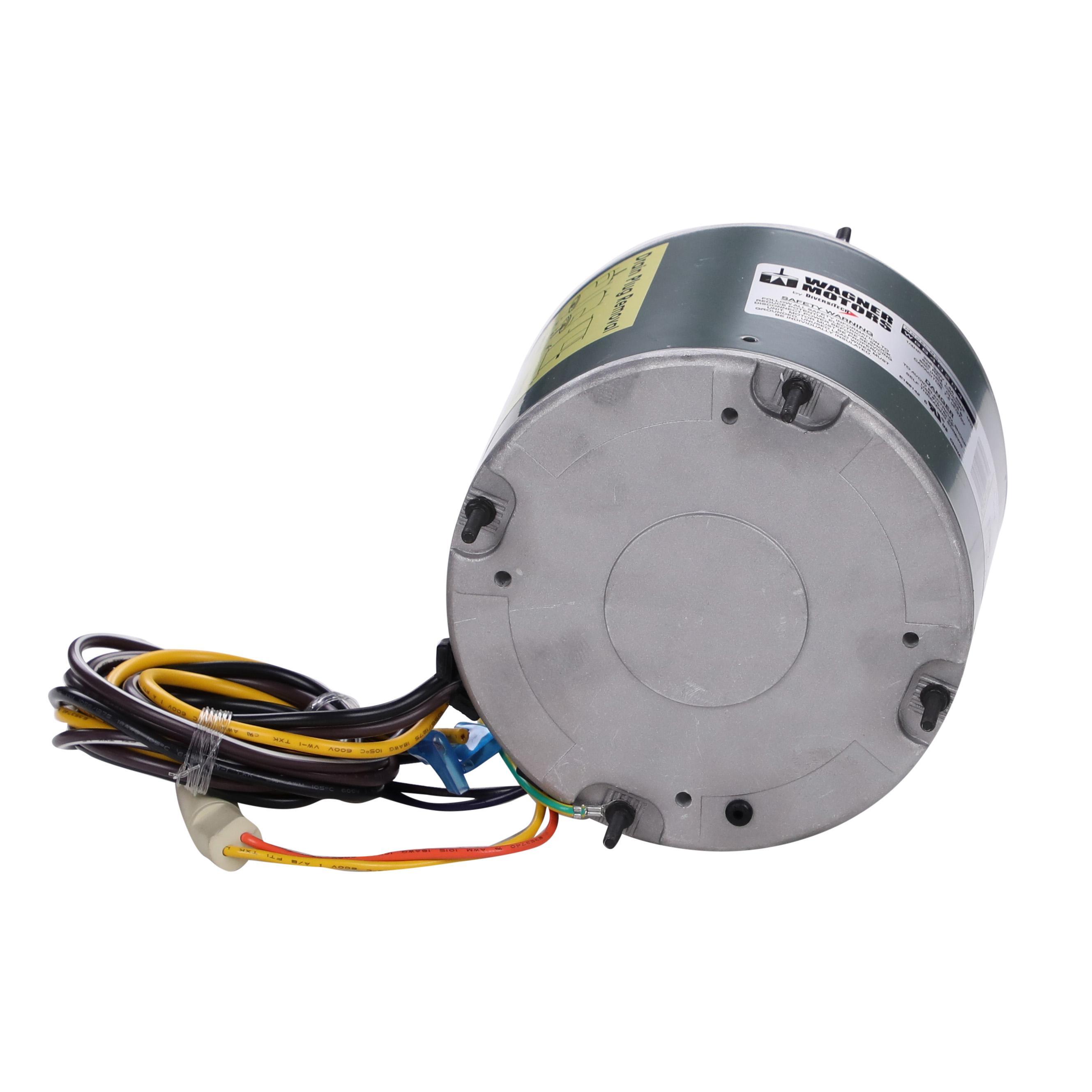

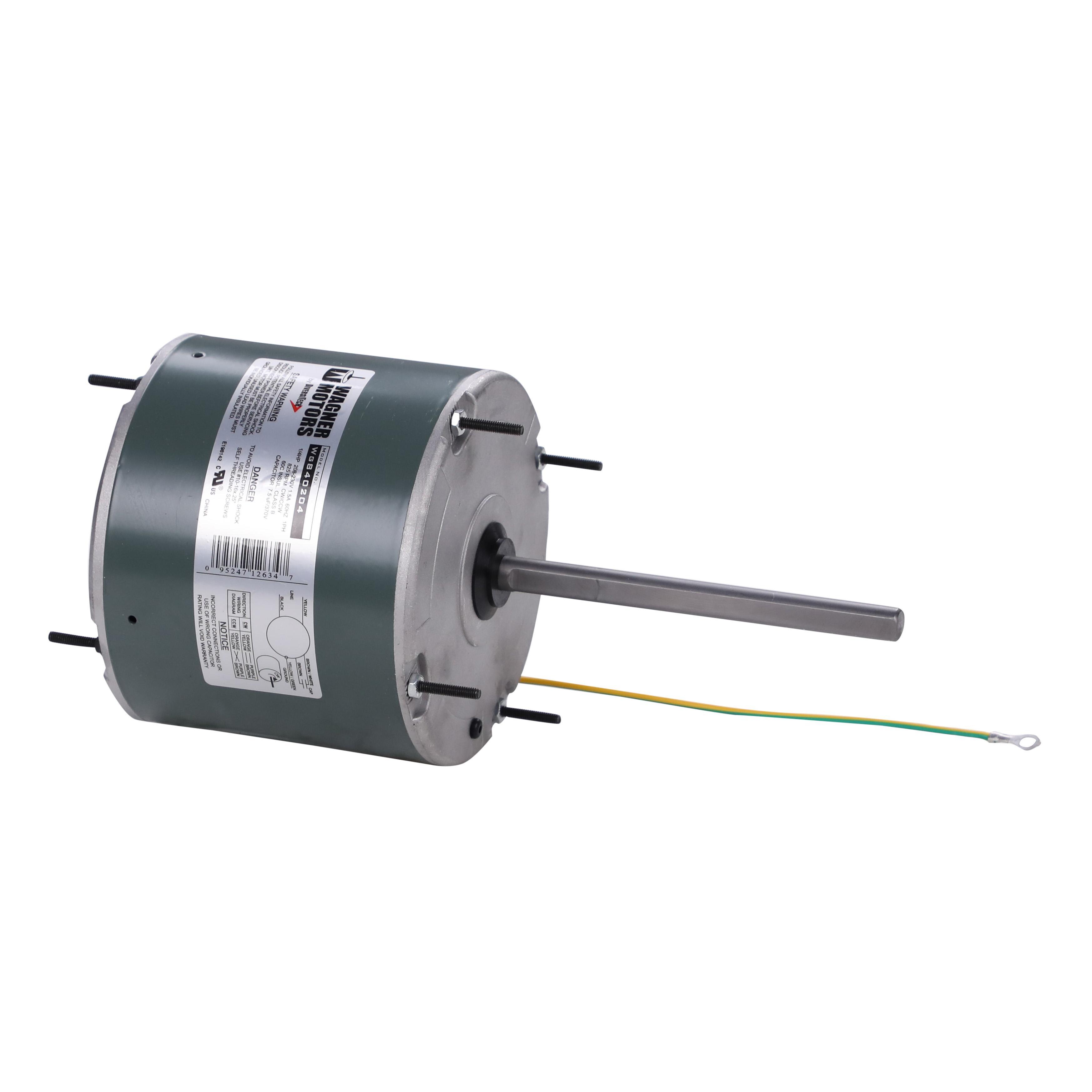

Wagner by Diversitech WG840204 Condenser Fan Motor, 1/4 hp, 208 to 230 V AC, 60 Hz, 48 Frame, 825 rpm Speed
This Wagner® WG840204 Condenser Fan Motor, Single Speed 1/4HP, 825/1 RPM, 2.0FLA, 208-230V, 60C condenser fan motor is electrically reversible and features automatic overload protection in a standard 48 frame motor size. It has 36 in. leads and operates on 60 Hz frequency with low power consumption.
-
BrandWagner by Diversitech
-
Manufacturer Part NumberWG840204
-
CountryUSA
-
Temperature Rating60 deg C Ambient
-
Frame48
-
Frequency Rating60 Hz
-
RotationCCW
-
Voltage Rating208 to 230 V AC
-
Amperage Rating1.5 A Full Load
-
Application TypeCondenser Fan Motors
-
Horsepower1/4 hp
-
Bearing TypeBall
-
Number of Speeds1
-
Insulation ClassClass B
-
Speed825 rpm
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
-
UNSPSC26101100
-
Package DescriptionEACH
-
Warranty2 Years
-
Catalog
-
Instruction/Installation Manual
