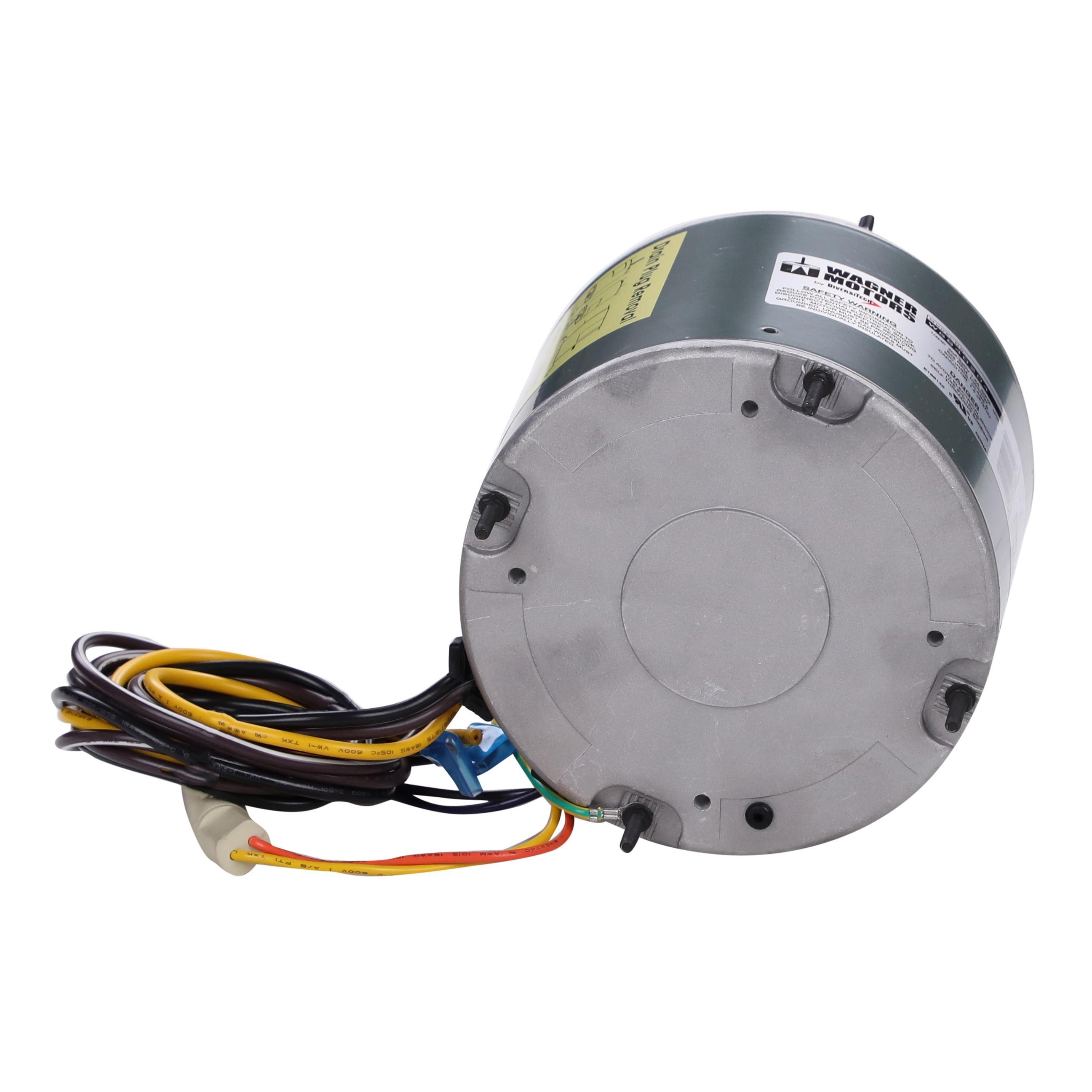

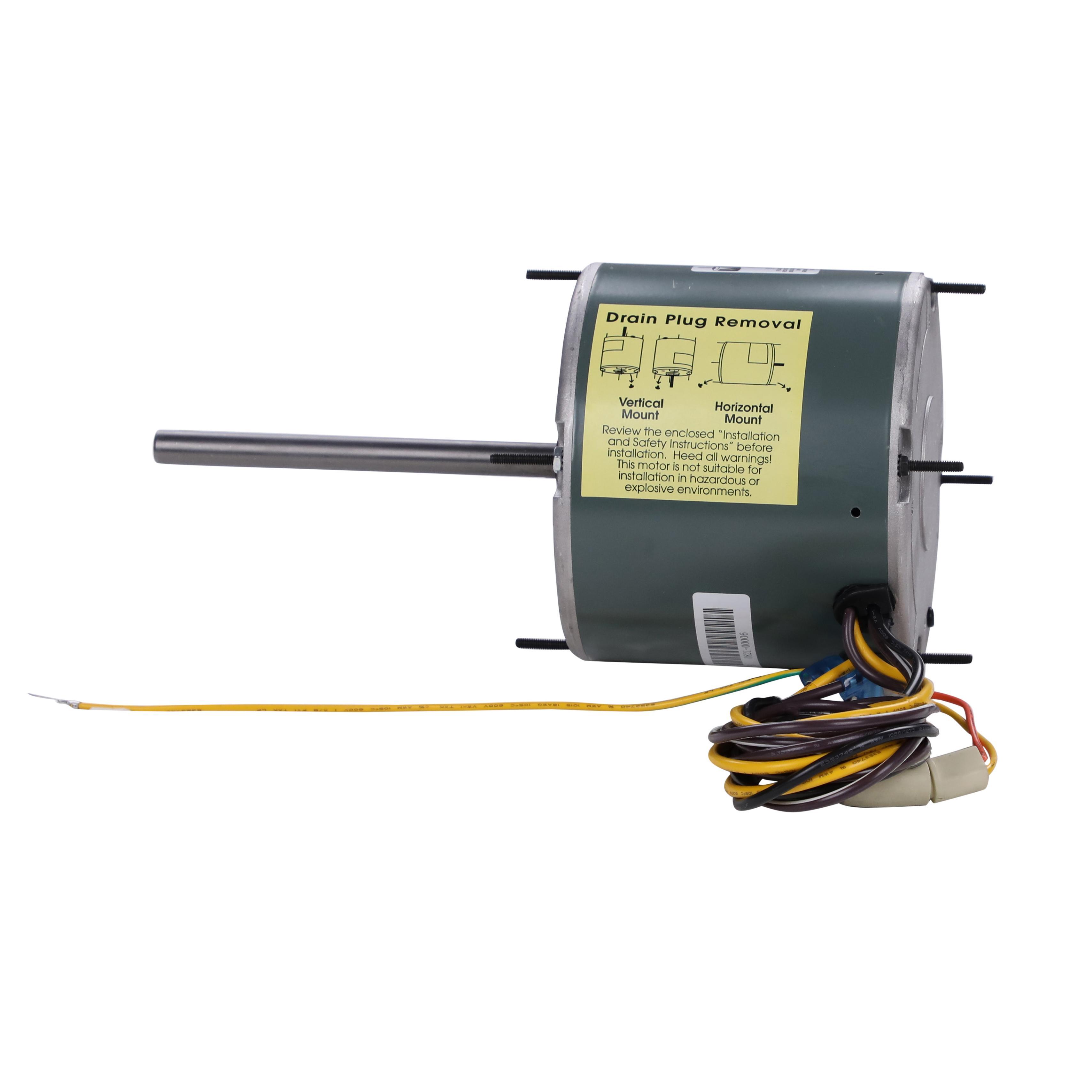

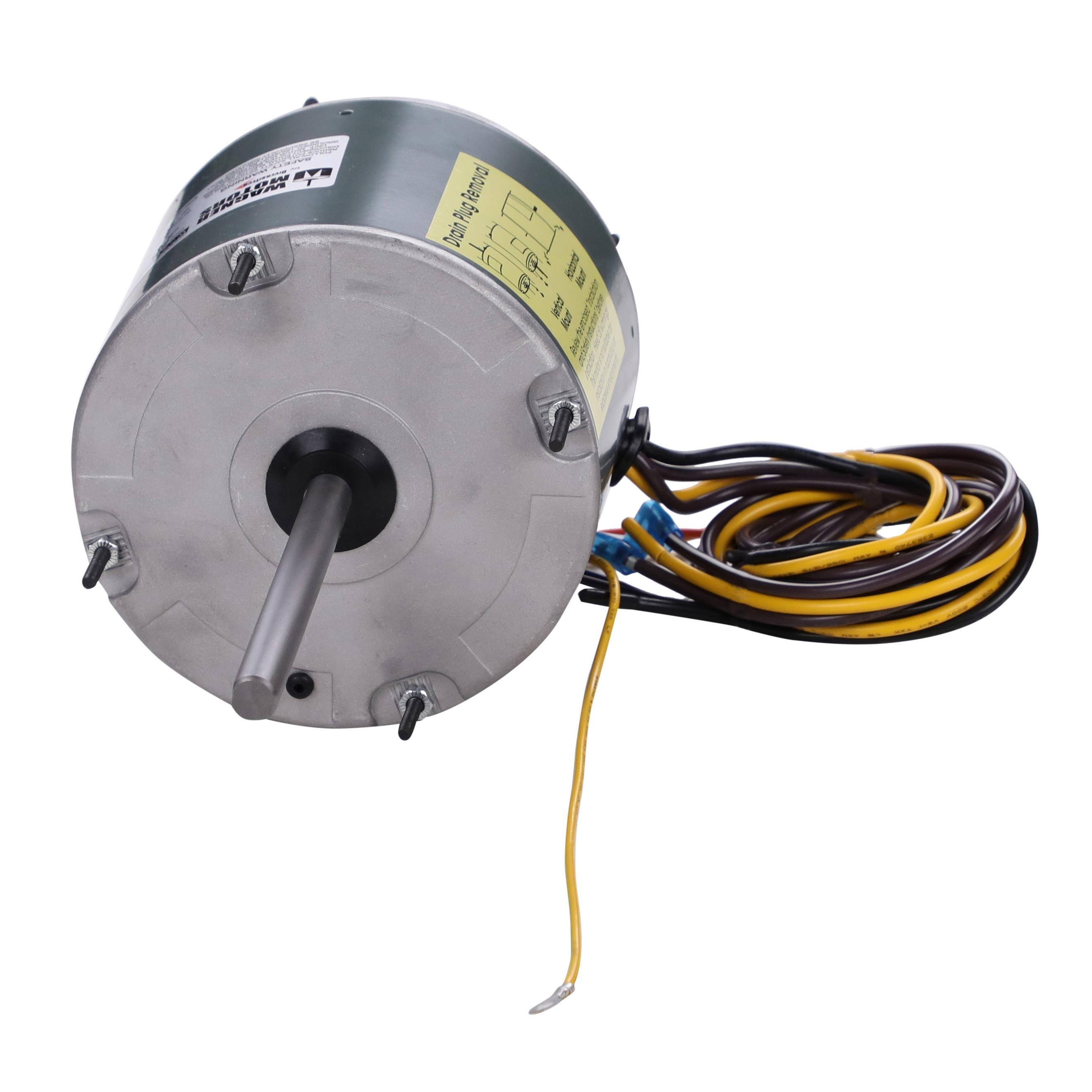

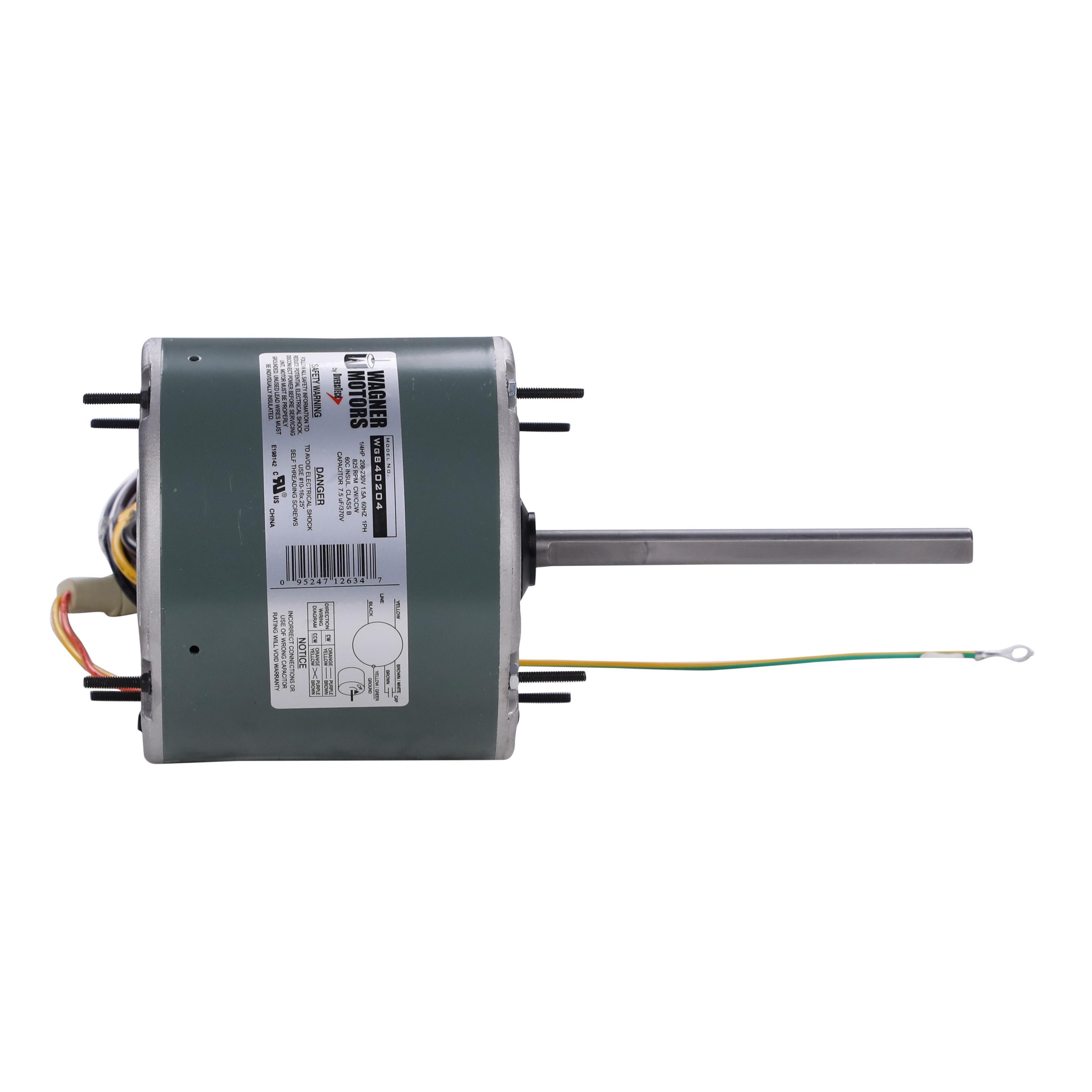

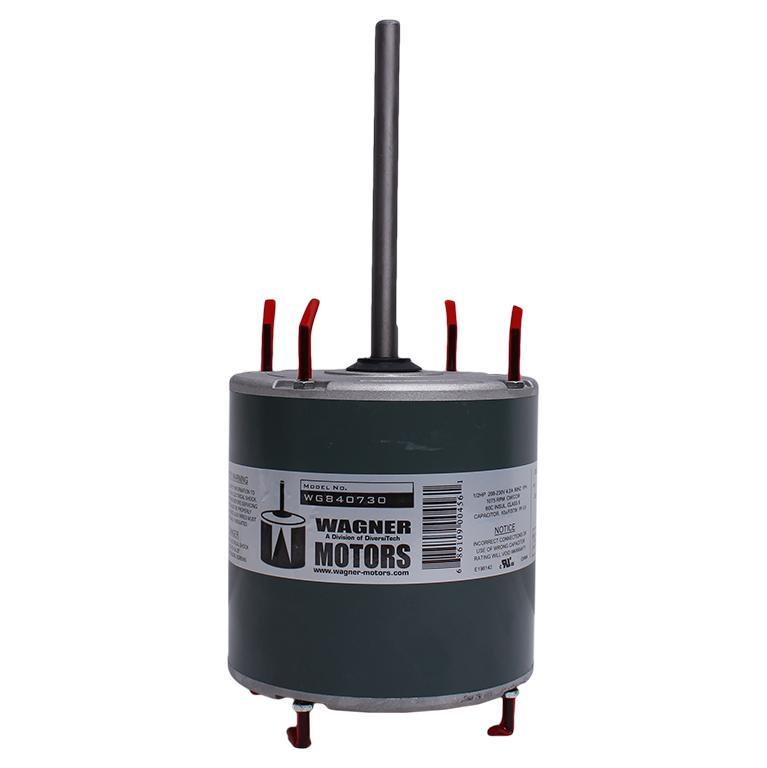

Wagner by Diversitech WG840731 Condenser Fan Motor, TEAO Enclosure, 3/4 hp, 208 to 230 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount

Name: Wagner by Diversitech WG840731 Condenser Fan Motor, TEAO Enclosure, 3/4 hp, 208 to 230 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
Brand: DiversiTech
SKU: DIVWG840731
Price: 191.12 USD
Availability: InStock

0 Ratings

$191.12

SKU: DIVWG840731

This Wagner® WG840731 Condenser Fan Motors, Single Speed, 1/2HP, 1075/1 RPM, 3.9FLA, 208-230V, 60C ambient condenser fan motor is electrically reversible and features automatic overload protection in a standard 48 frame motor size. It has 36 in. leads and operates on 60 Hz frequency with low power consumption.

In Stock

HCI of Jackson: 3

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 0

HCI of Gallatin: 0

Back to: General Purpose AC Motors

Main specs

Brand

Wagner by Diversitech
UPC

095247093731
Manufacturer Part Number

WG840731
Country

USA

Specification

Temperature Rating

140 deg F
Frame

48
Frequency Rating

60 Hz
Mounting Type

Belly Band/Shaft Up/Down
Rotation

Reversible
Voltage Rating

208 to 230 V AC
Amperage Rating

4.5 A Full Load
Application Type

Condenser Fan Motors
Service Factor

1
Horsepower

3/4 hp
Shaft Size

1/2 in Dia x 5 in L
Dimensions

5.59 in Dia x 11.26 in L
Bearing Type

Ball
Number of Speeds

1
Insulation Class

Class B
Speed

1075 rpm
Enclosure Type

TEAO
Phase

1

Features

Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently

Additional Information

UNSPSC

26101105
Package Description

EACH
Warranty

2 years

Attachments

Instruction/Installation Manual

Click here
Catalog

Click here
Specification Sheet

Click here
