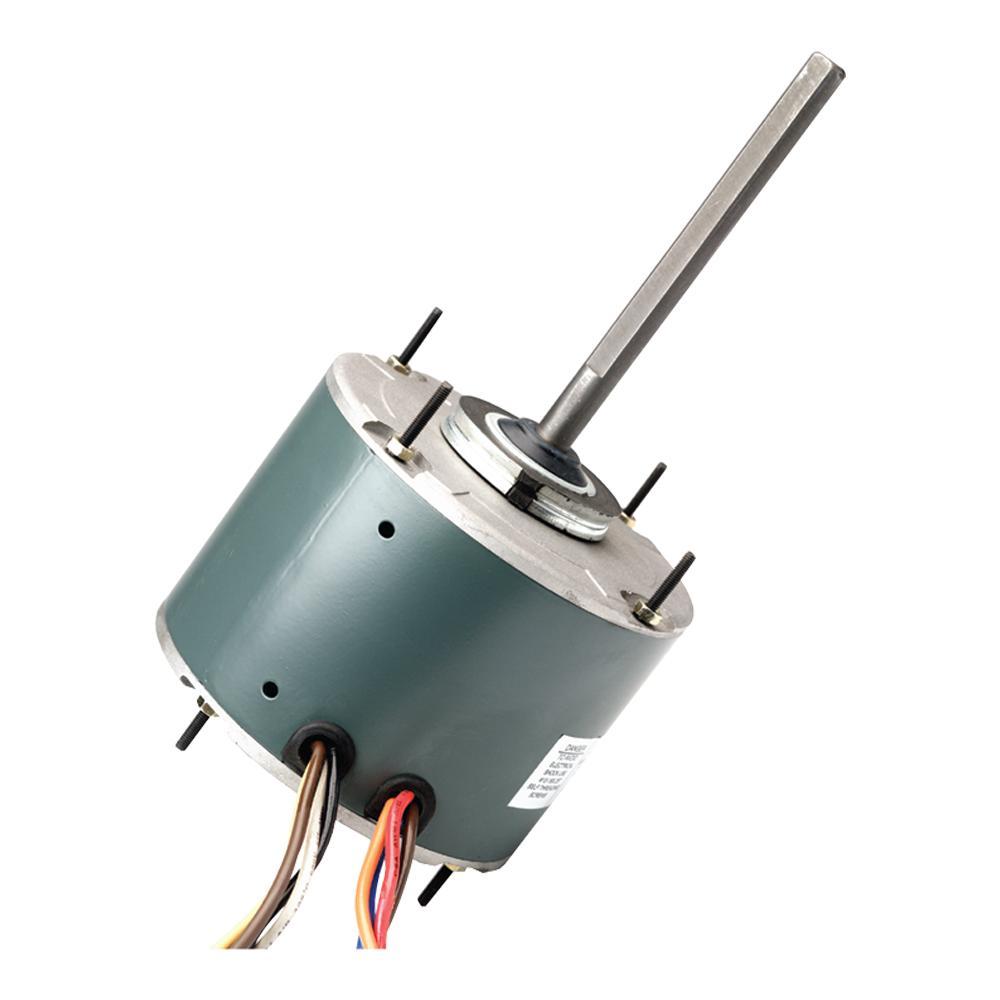

Wagner by Diversitech WG840728 Condenser Fan Motor, TEAO Enclosure, 1/4 hp, 208 to 230 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
$130.92
In Stock
SKU: DIVWG840728
This Wagner® WG840728 Condenser Fan Motors, Single Speed, 1/4HP, 1075/1 RPM, 1.4FLA, 208-230V, 60C ambient condenser fan motor is electrically reversible and features automatic overload protection in a standard 48 frame motor size. It has 36 in. leads and operates on 60 Hz frequency with low power consumption.
In Stock
HCI of Jackson: 2
HCI of Dyersburg: 0
HCI of Humboldt: 1
HCI of Union City: 0
HCI of Gallatin: 0
Back to: General Purpose AC Motors
Main specs
-
BrandWagner by Diversitech
-
Manufacturer Part NumberWG840728
-
CountryUSA
Specification
-
Temperature Rating60 deg C
-
Frame48
-
Frequency Rating60 Hz
-
Mounting TypeBelly Band/Shaft Up/Down
-
RotationReversible
-
Voltage Rating208 to 230 V AC
-
Amperage Rating2.2 A Full Load
-
Application TypeCondenser Fan Motors
-
Service Factor1
-
Horsepower1/4 hp
-
Shaft Size1/2 in Dia x 5 in L
-
Dimensions5.59 in Dia x 10.584 in L
-
Bearing TypeBall
-
Number of Speeds1
-
Insulation ClassClass B
-
Speed1075 rpm
-
Enclosure TypeTEAO
-
Phase1
Features
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
Additional Information
-
UNSPSC26101100
-
Package DescriptionEACH
-
Warranty2 Years
Attachments
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
