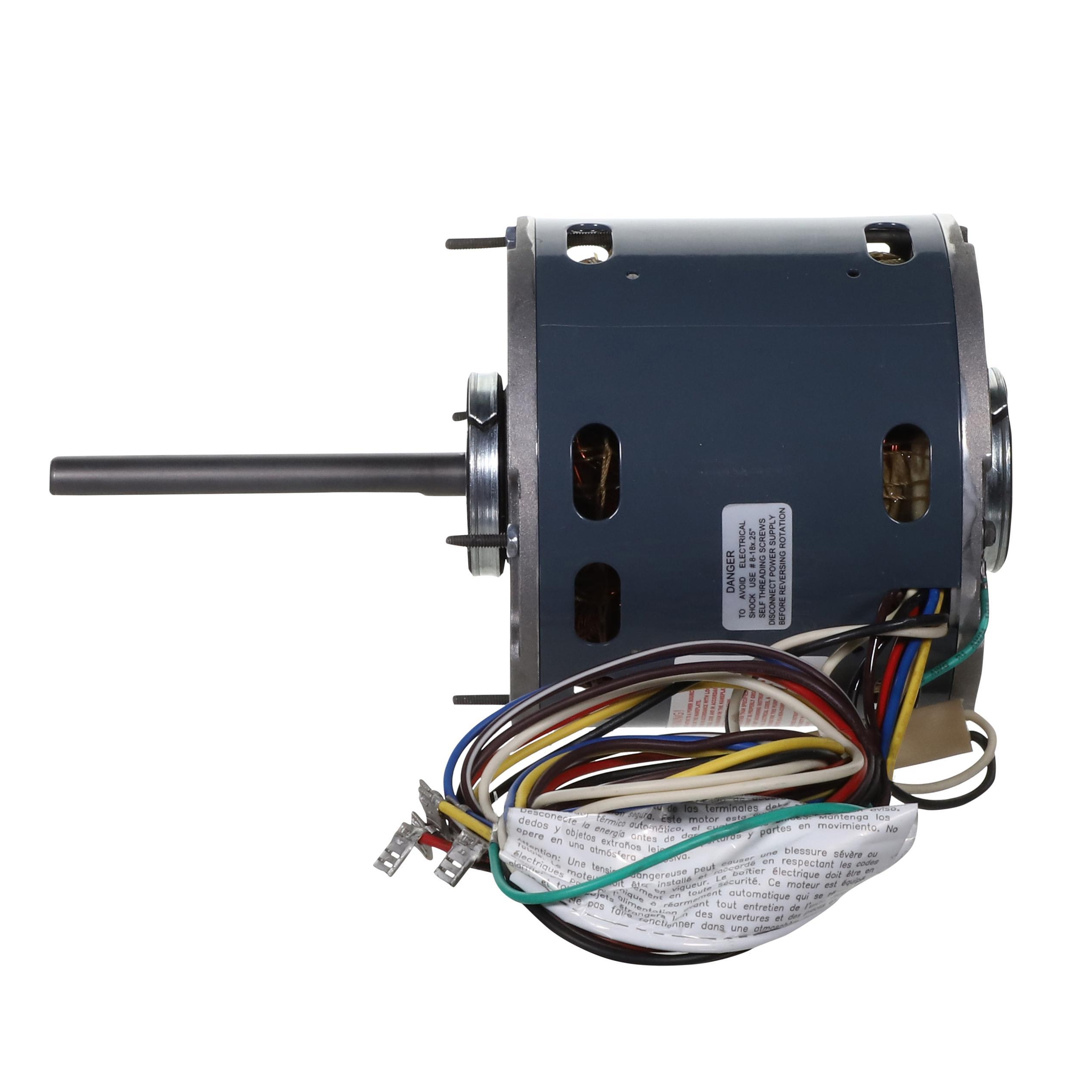

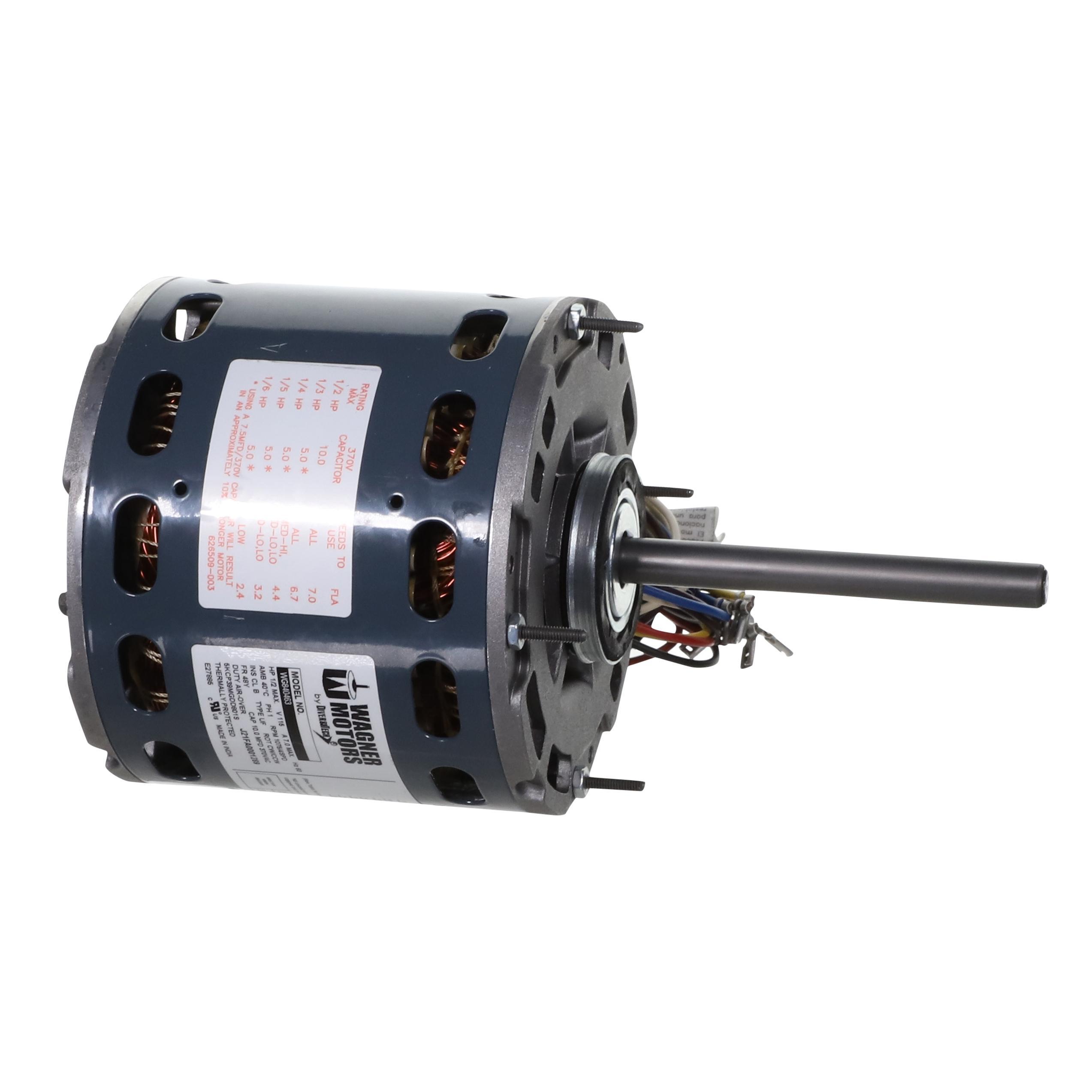

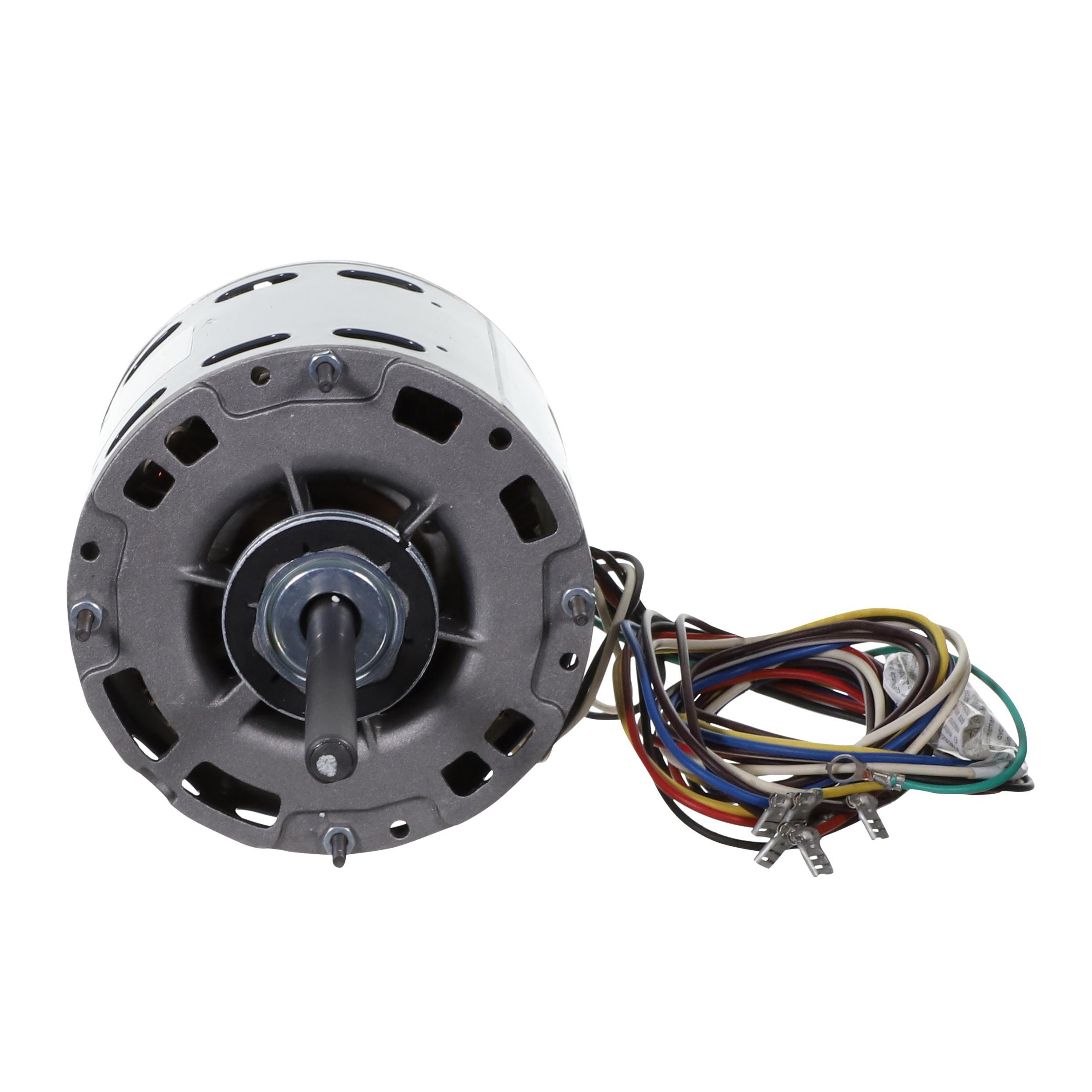

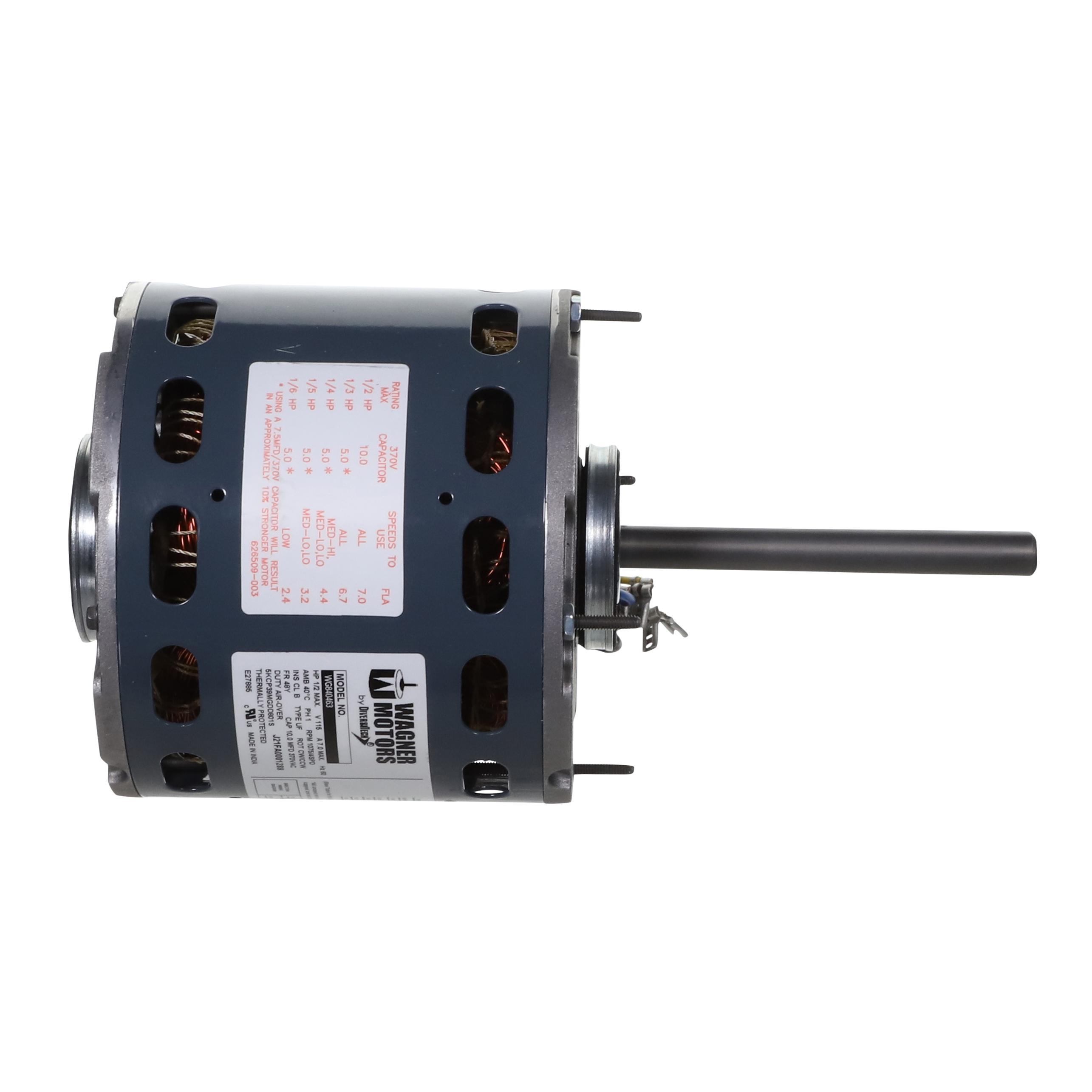

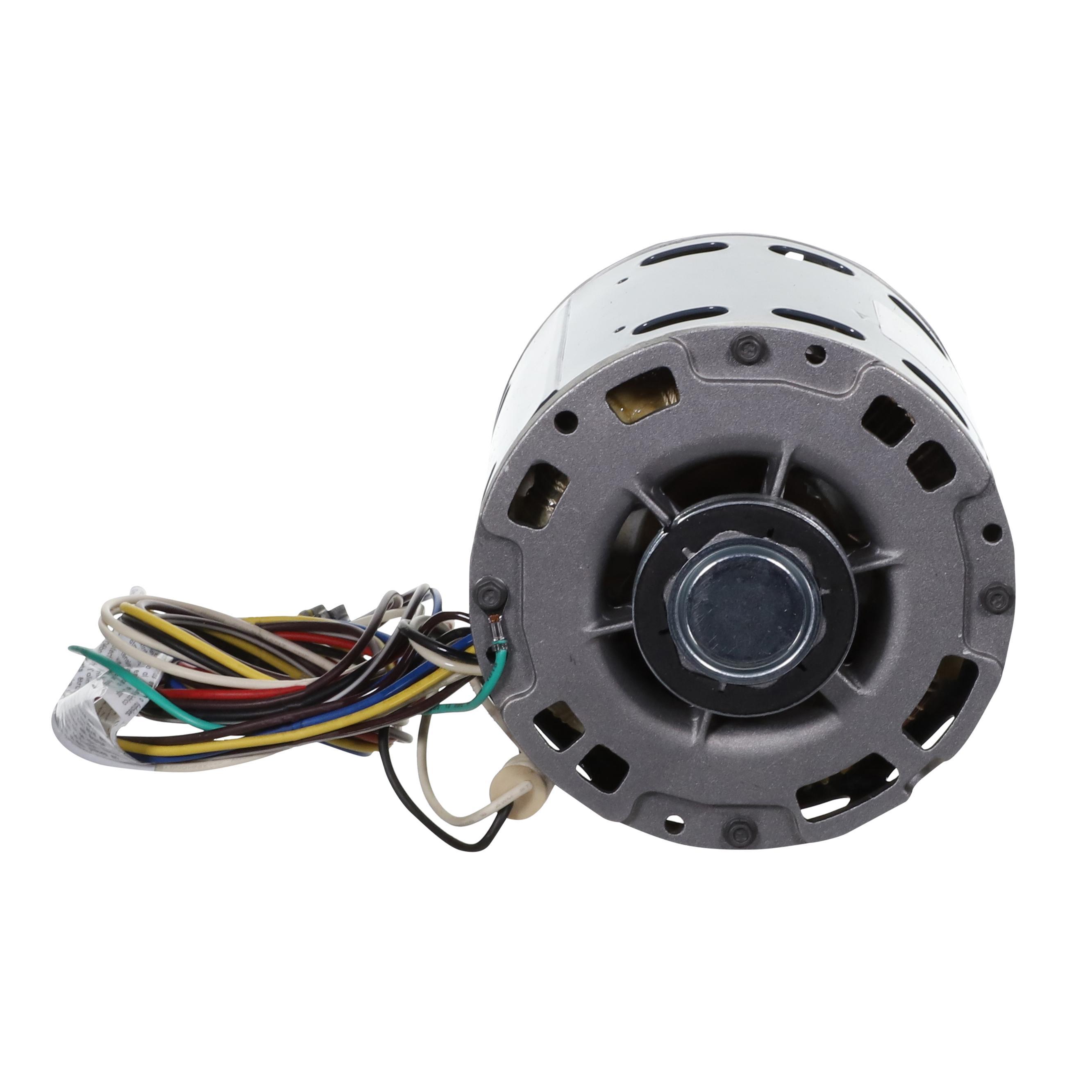

Wagner by Diversitech WG840463 Multi-Horsepower Direct Drive Furnace Blower Motor, DDFB Enclosure, 1/2, 1/3, 1/4, 1/5, 1/6 hp, 115 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
This Wagner® WG840463 Multiple Horsepower Direct Drive Furnace Blower Motor, 115V, 1075/4 Speed, 1/2HP MAX is specially designed to cover a range of applications. The motor is electrically reversible and features 36 in. leads to ease installation.
-
BrandWagner by Diversitech
-
Manufacturer Part NumberWG840463
-
CountryUSA
-
Temperature Rating140 deg F
-
Frame48
-
Frequency Rating60 Hz
-
TypeMulti-Horsepower
-
Mounting TypeBelly Band/Shaft Up/Down
-
RotationReversible
-
Voltage Rating115 V AC
-
Amperage Rating7/6.7/4.4/3.2/2.4 A Full Load
-
Application TypeCondenser Fan Motors, Fan & Blower Motors
-
Service Factor1
-
Horsepower1/2, 1/3, 1/4, 1/5, 1/6 hp
-
Shaft Size1/2 in Dia x 5 in L
-
Dimensions5.59 in Dia x 10.292 in L
-
Bearing TypeBall
-
Number of Speeds4
-
Insulation ClassClass B
-
Speed1075 rpm
-
Enclosure TypeDDFB
-
Phase1
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
-
UNSPSC26101100
-
Package DescriptionEACH
-
Warranty2 Years
-
