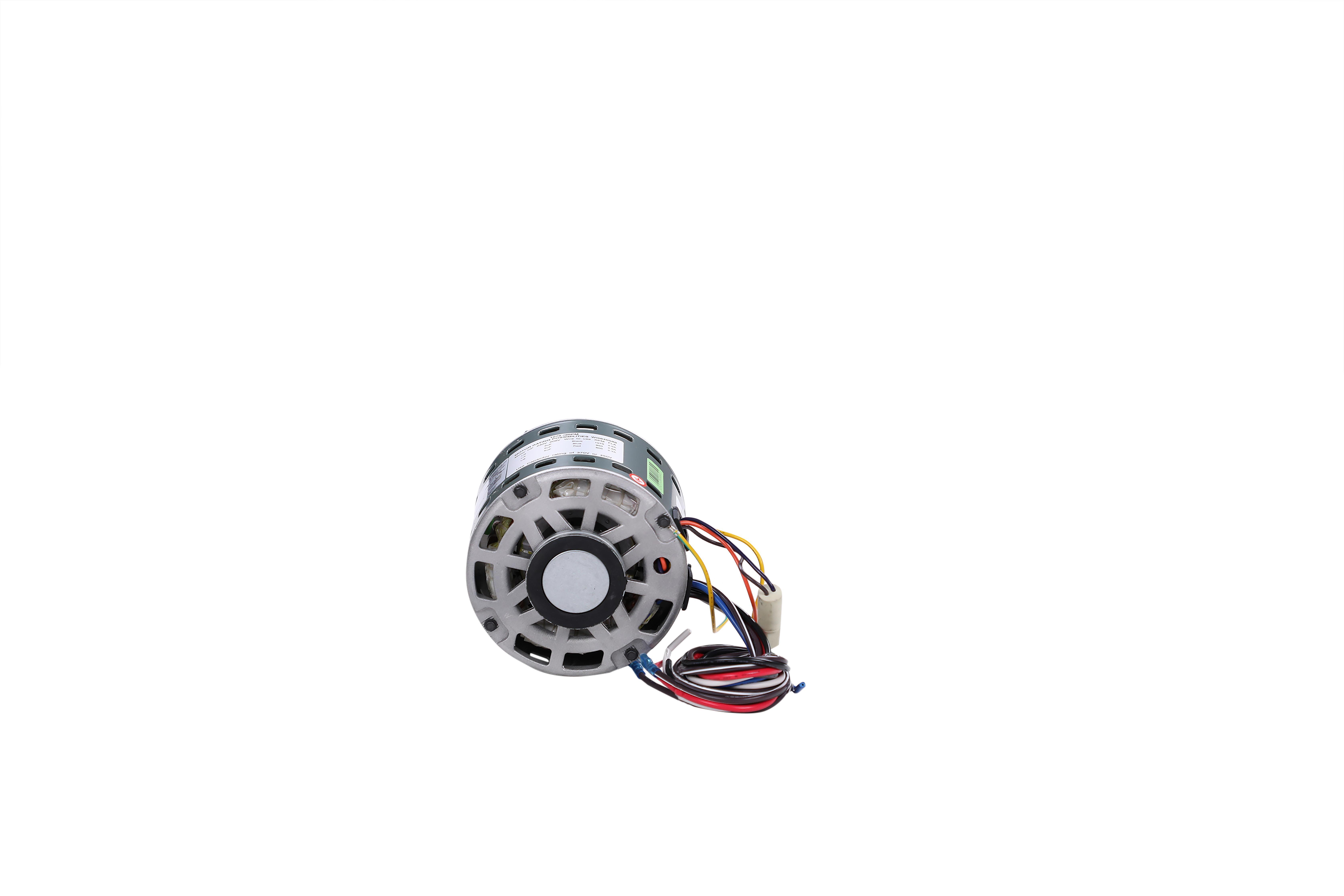

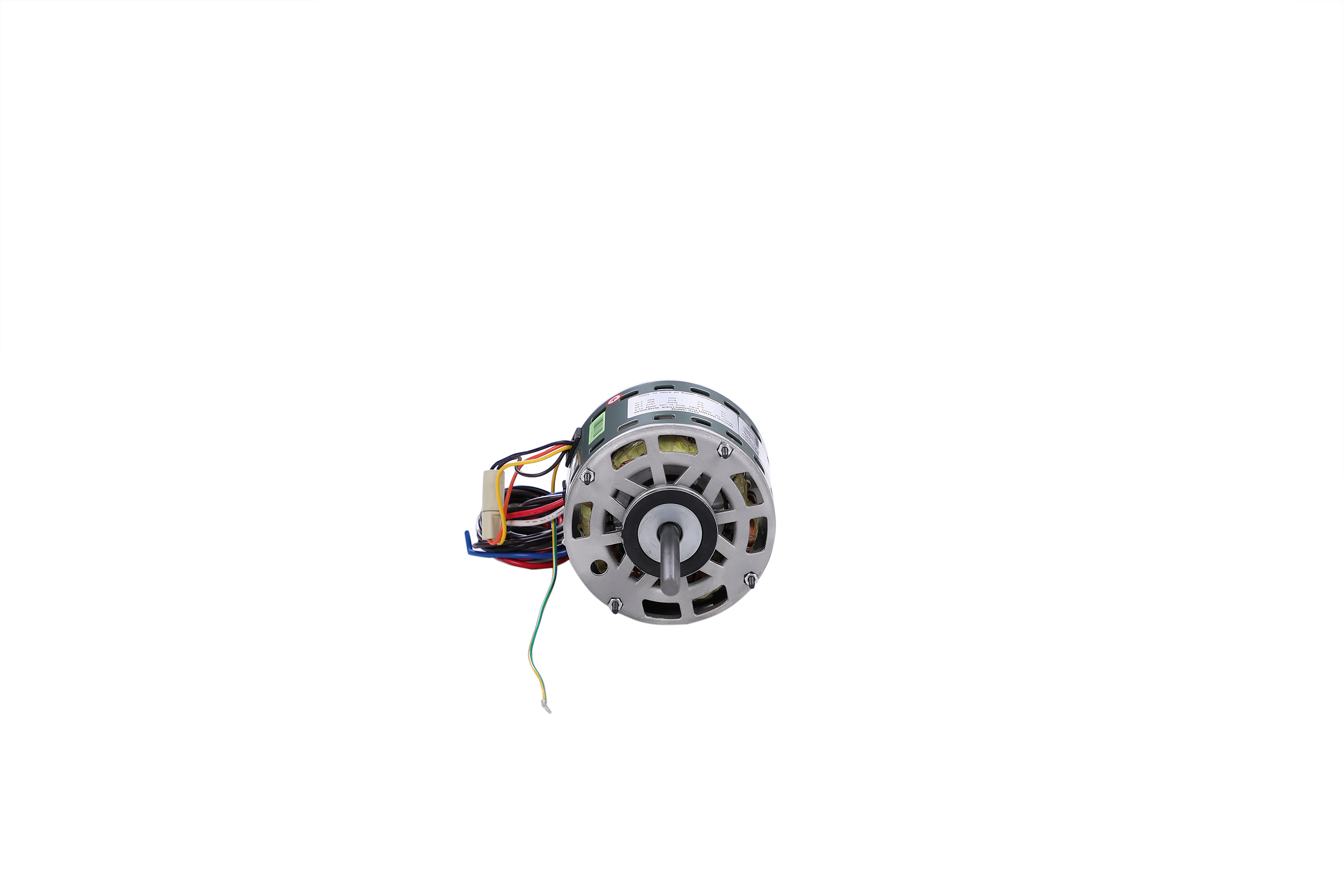

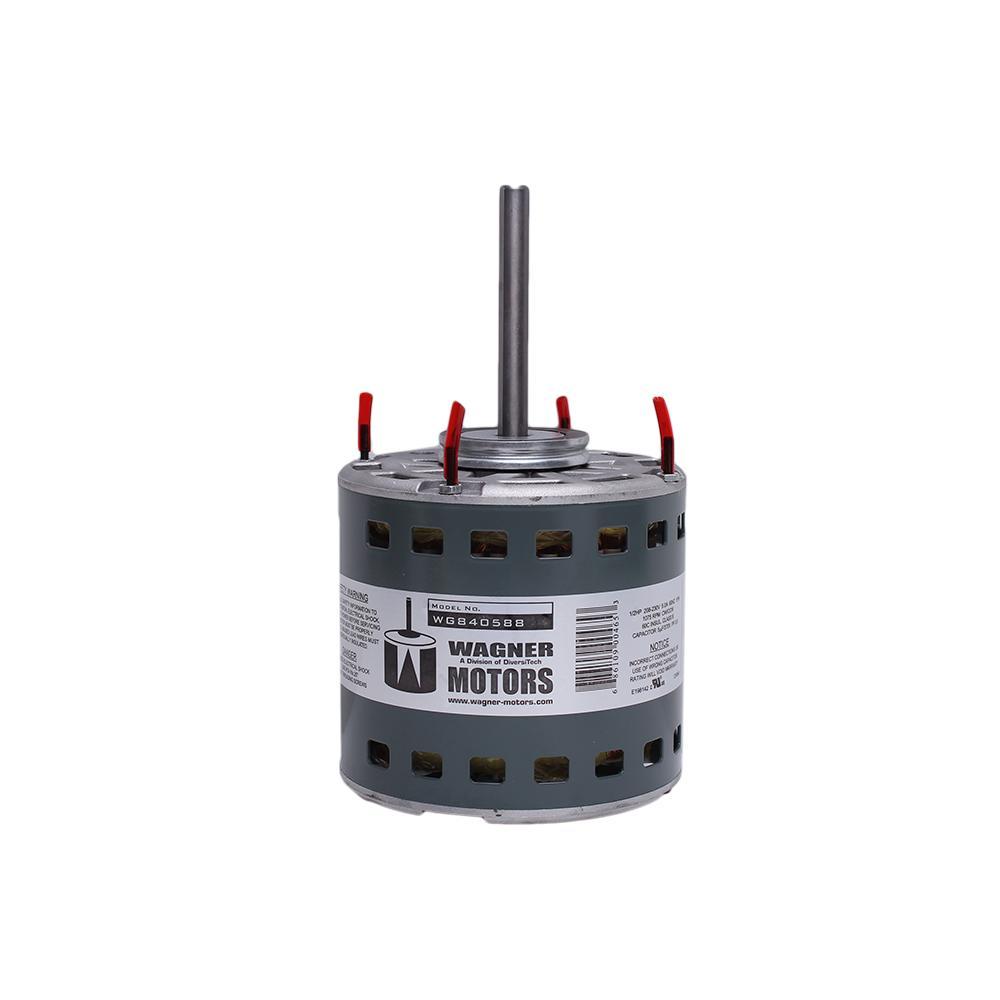

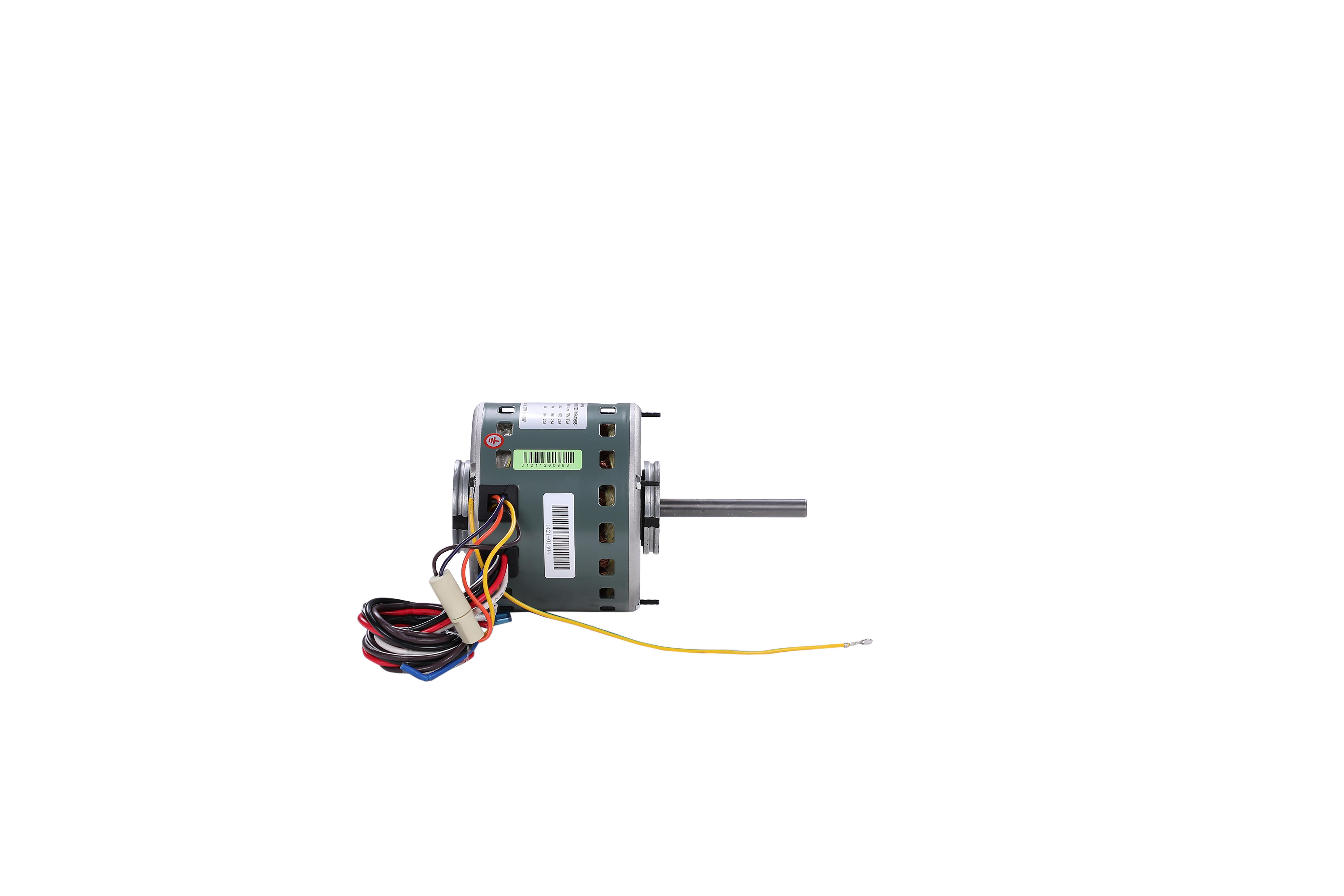

Wagner by Diversitech WG840588 Direct Drive Furnace Blower Motor, OAO Enclosure, 1/2 hp, 208/230 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
This Wagner® WG840588 Direct Drive Furnace Blower Motors, 1/2 HP, 1075/3 RPM, 2.7 FLA, 208 - 230V motor installs with all standard 48 frame mounting brackets. It is protected by an automatic overload and class B insulation. The motor is electrically reversible and features 36 in. leads to ease installation.
-
BrandWagner by Diversitech
-
Manufacturer Part NumberWG840588
-
CountryUSA
-
Temperature Rating140 deg F
-
Frame48
-
Frequency Rating60 Hz
-
Mounting TypeBelly Band/Shaft Up/Down
-
RotationReversible
-
Voltage Rating208/230 V AC
-
Amperage Rating5 A Full Load
-
Application TypeCondenser Fan Motors
-
Service Factor1
-
Horsepower1/2 hp
-
Shaft Size1/2 in Dia x 4-1/2 in L
-
Dimensions5.59 in Dia x 10.137 in L
-
Bearing TypeSleeve
-
Number of Speeds3
-
Insulation ClassClass B
-
Speed1075 rpm
-
Enclosure TypeOAO
-
Phase1
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
-
UNSPSC26101100
-
Includes2-1/2 in Dia Hub Ring
-
Package DescriptionEACH
-
Warranty2 Years
-
Instruction/Installation Manual
-
Specification Sheet
