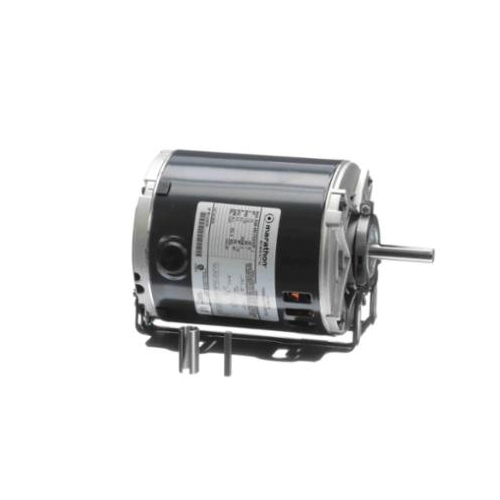

Marathon® 048S17D2107 Drip Proof Split Phase Fan and Blower Motor, 1/4 hp, 115 V AC, 60 Hz, 1 ph, 48Z Frame, 1725 rpm, Base Mount, DP Enclosure
Marathon® 048S17D2107 Drip Proof Split Phase Fan and Blower Motor, 1/4 hp, 115 VAC, 60 Hz, 1 ph, 48Z Frame, 1725 rpm, Base Mount, DP Enclosure
-
BrandMarathon®
-
UPC722856022066
-
Manufacturer Part Number048S17D2107
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialRolled Steel
-
Frame48Z
-
Frequency Rating60 Hz
-
TypeDrip Proof Split Phase
-
Mounting TypeBase
-
RotationSelective CCW
-
Voltage Rating115 V AC
-
Amperage Rating5 A
-
Service Factor1.35
-
Horsepower1/4 hp
-
Shaft Size1/2 in Dia
-
Dimensions9.62 in L
-
Bearing TypeBall
-
Number of Speeds2
-
Insulation ClassClass B
-
Special Features4-Pole, Across The Line Starting Method
-
Speed1725 rpm
-
Enclosure TypeDP
- Heavy gauge steel frame and base
- Extended thru-bolts
- 48Y and 48YZ frame have 48/56 frame mounting holes
- Variable torque on two speed ratings
-
Alternative Part NumberB206
-
UNSPSC26101100
-
Standards/ApprovalsCE Certified|CSA Certified|UL Listed
-
Warranty1 Year
-
