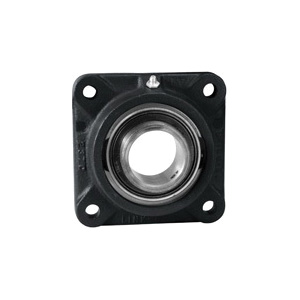

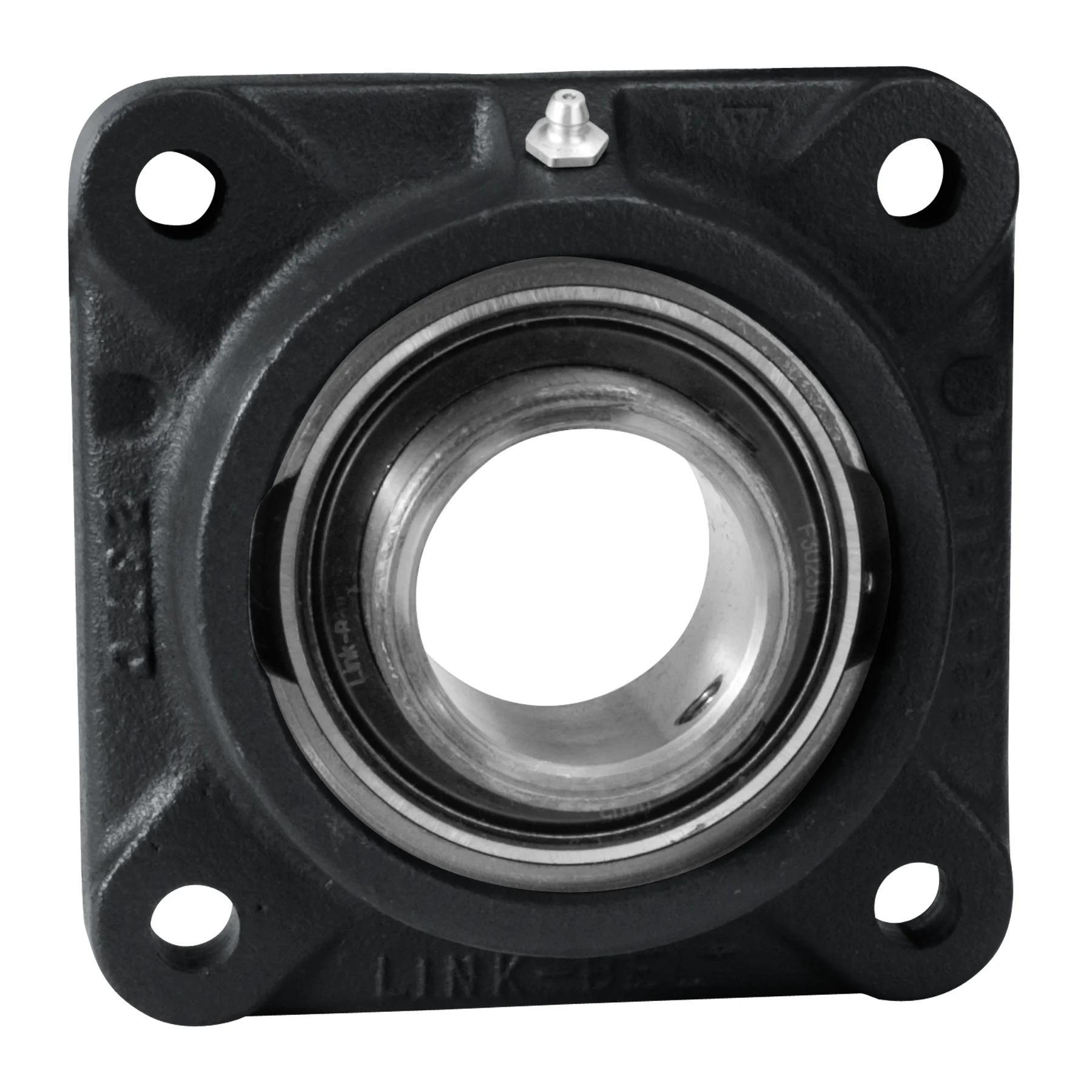

Link-Belt® 10415070 200 Standard-Duty Flange Block Ball Bearing, 2-15/16 in Dia Bore, 6 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 7-3/4 in OAL/Dia
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
-
BrandLink-Belt®
-
UPC793699130379
-
Manufacturer Part Number10415070
-
CountryUSA|Canada
-
Load Capacity15080 lb Dynamic/11100 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Square
-
Maximum Speed3300 rpm
-
TypeStandard-Duty
-
Series200
-
Bearing MaterialAlloy Steel
-
Bolt Center-to-Center Length6 in
-
Bore Diameter2-15/16 in
-
Overall Depth2-31/32 in
-
Overall Height7-3/4 in
-
Overall Length/Diameter7-3/4 in
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact seal
-
Alternative Part NumberF3U247N
-
UNSPSC31171501
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
