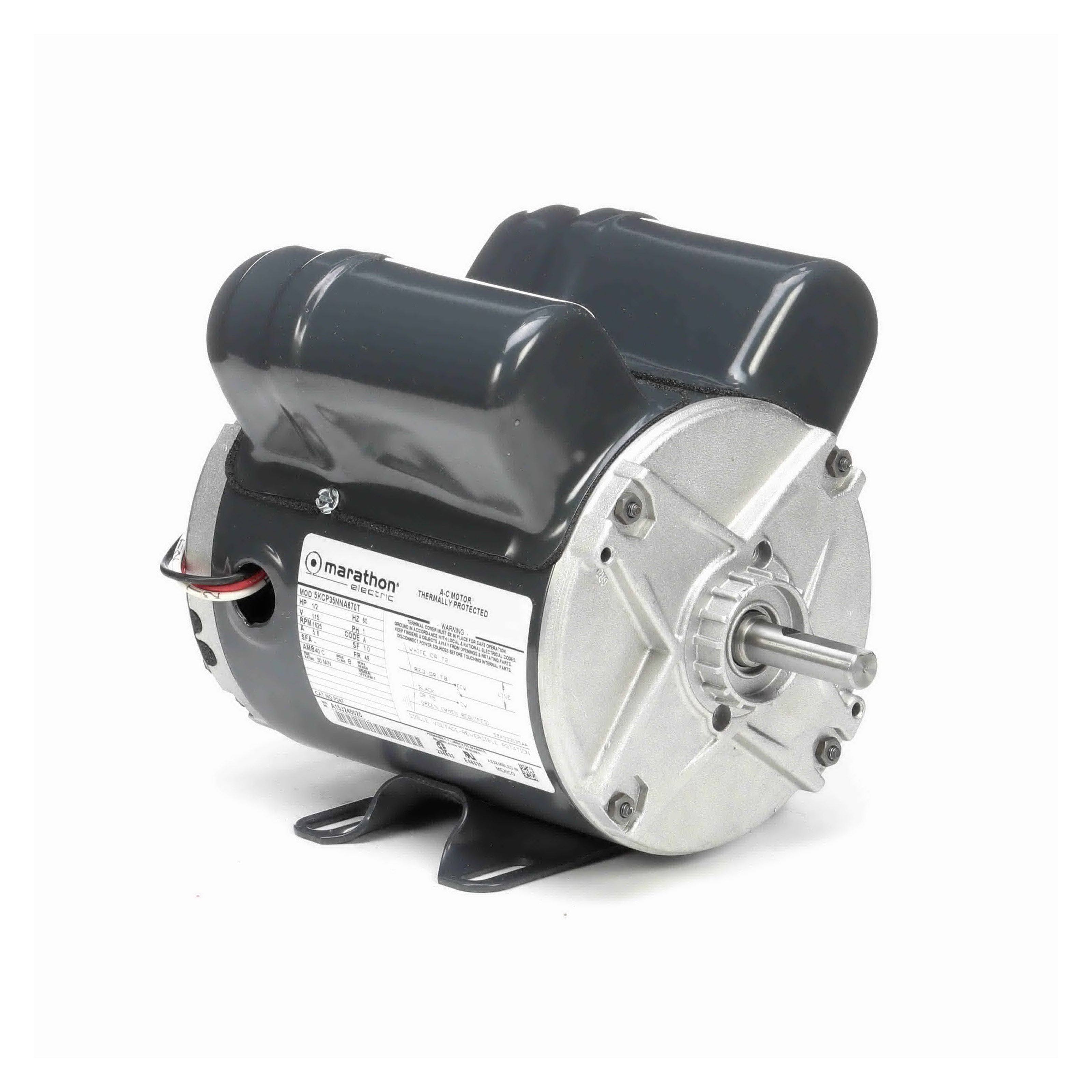

Marathon® 5KCP35NNA670T 4-Pole AC Motor, TENV Enclosure, 0.5 hp, 115 V AC, 60 Hz, 1 ph Phase, 48 Frame, 1625 rpm Speed, Welded Base Mount
Marathon® 5KCP35NNA670T 4-Pole AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.5 hp, 115 VAC, 60 Hz, 1 ph Phase, 48 Frame, 1625 rpm Speed, Welded Base Mount
-
BrandMarathon®
-
UPC722856042781
-
Manufacturer Part Number5KCP35NNA670T
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialRolled Steel
-
Frame48
-
Frequency Rating60 Hz
-
Type4-Pole
-
Mounting TypeWelded Base
-
RotationCW/CCW
-
Voltage Rating115 V AC
-
Amperage Rating5.8 A
-
Application TypeFarm Duty Motors
-
Service Factor1
-
Horsepower0.5 hp
-
Shaft Size1/2 in Dia x 1-1/2 in L
-
Dimensions9.42 in L x 5.66 in W x 7.31 in H
-
Bearing TypeBall
-
Number of Speeds1
-
Insulation ClassClass B
-
Speed1625 rpm
-
Enclosure TypeTENV
-
Phase1
- Thermal protection
- Electronic instant reverse switch
- Extended clamp screws for mounting belt guard or accessories
- Permanent split capacitor
-
Alternative Part NumberP247
-
UNSPSC26101100
-
Standards/ApprovalsCSA Certified|UL Listed
-
WarrantyLimited
-
Specification Sheet
-
Warranty Information
