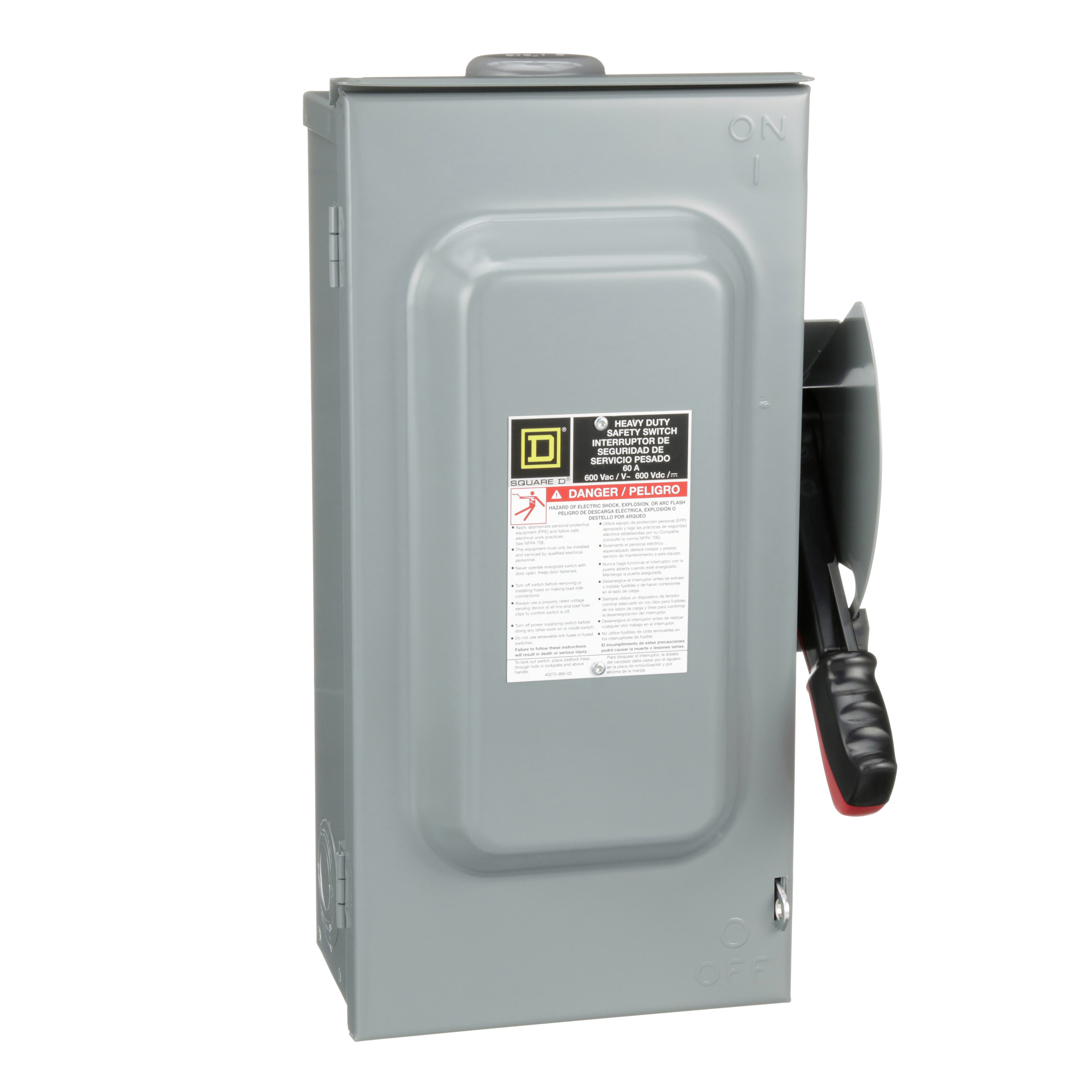

Square-D 60-AMP 600-V 3-PH O/D DISCONNECTS SQU H-362-RB
Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required. All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle. They are suitable for use as service equipment when equipped with a field- or factory installed neutral assembly or equipment grounding kit, unless a 600Y/347 VAC or 480 Y/277 VAV, 1000 A or greater, solidly grounded WYE system is used.
-
BrandSquare Dâ„¢
-
UPC785901482185
-
Manufacturer Part NumberH362RB
-
CountryUSA|Canada
-
FinishHot Dipped Galvanized
-
Terminal TypeLug
-
MaterialSteel
-
Frequency Rating50/60 Hz
-
TypeHeavy Duty Fusible Iceproof Rainproof
-
Contact Form3PST
-
Mounting TypeSurface
-
Actuator TypeHandle
-
Voltage Rating600 V AC/DC
-
Amperage Rating60 A
-
Horsepower15 hp, 30 hp
-
Short Circuit Current Rating10/200 kA
-
Number of Poles3
-
Dimensions10.5 in W x 6.38 in D x 17.5 in H
-
Number of Wires3
-
Enclosure TypeNEMA 3R
-
Phase3
-
Alternative Part Number8062873
-
UNSPSC39122205
-
IDEA Index ID8062873
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL File No. E2875|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
Recently Viewed
Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required. All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle. They are suitable for use as service equipment when equipped with a field- or factory installed neutral assembly or equipment grounding kit, unless a 600Y/347 VAC or 480 Y/277 VAV, 1000 A or greater, solidly grounded WYE system is used.
The Square Dâ„¢ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most gruelling conditions from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square Dâ„¢ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle.
