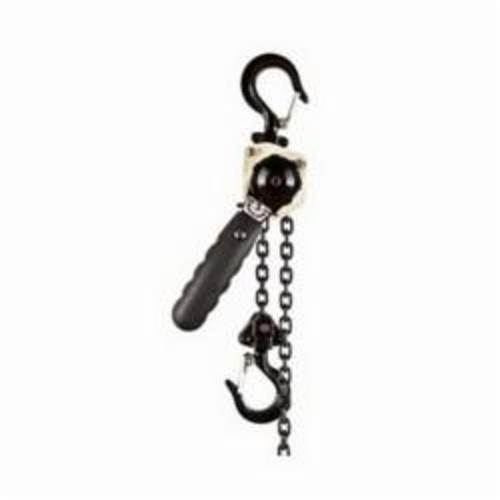

1/2-TON 5' MINI-PULLER LEVER HOIST JET187650
Jet® JLP-A mini pullers are designed with safety and durability to operate in light duty industrial applications. The all steel construction dual pawl weston style brake system and grade 80 load chain provide proven safety and reliability. Easily maintained and serviced, the JET®JLP-A mini puller is available in 1/4 ton and 1/2 ton capacities with standard lifts of 5, 10 and 15 feet (custom lifts available). The Jet® JLP-A mini puller is designed to work in tight spaces and low headroom applications.
-
BrandJET®
-
UPC731325473032
-
Manufacturer Part NumberJT9-287200
-
CountryUSA
-
Load Capacity0.5 ton
-
Pull to Lift Rated Load86 lb
-
Reeving1
-
Minimum Between Hooks9-21/25 in
-
Handle TypeMini Puller
-
SeriesJLP-A
-
Hook Opening1.38 in
-
Brake TypeDual Pawl Weston
-
Lever Length8.46 in
-
Lifting Height5 ft
- Weston style dual pawl brake system- dual pawl design increases safety by splitting the load to opposite sides of the ratchet gear for greater load security
- Alloy steel hooks- industrial rated hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Heat treated load plates- heat treated for durability, these extend the life of the hoist in industrial environments
- Grade 80 load chain- grade 80 black oxide coated load chain for durability
- All steel construction impact resistant covers that provide durability and protection
- Compact design smaller body and lightweight design for low headroom applications and use in confined areas
- Certification- load tested to 125% of capacity with certificate
-
Alternative Part Number287200
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.16|HST-3|OSHA Compliant
-
Specification Sheet
-
Owners/User Manual
