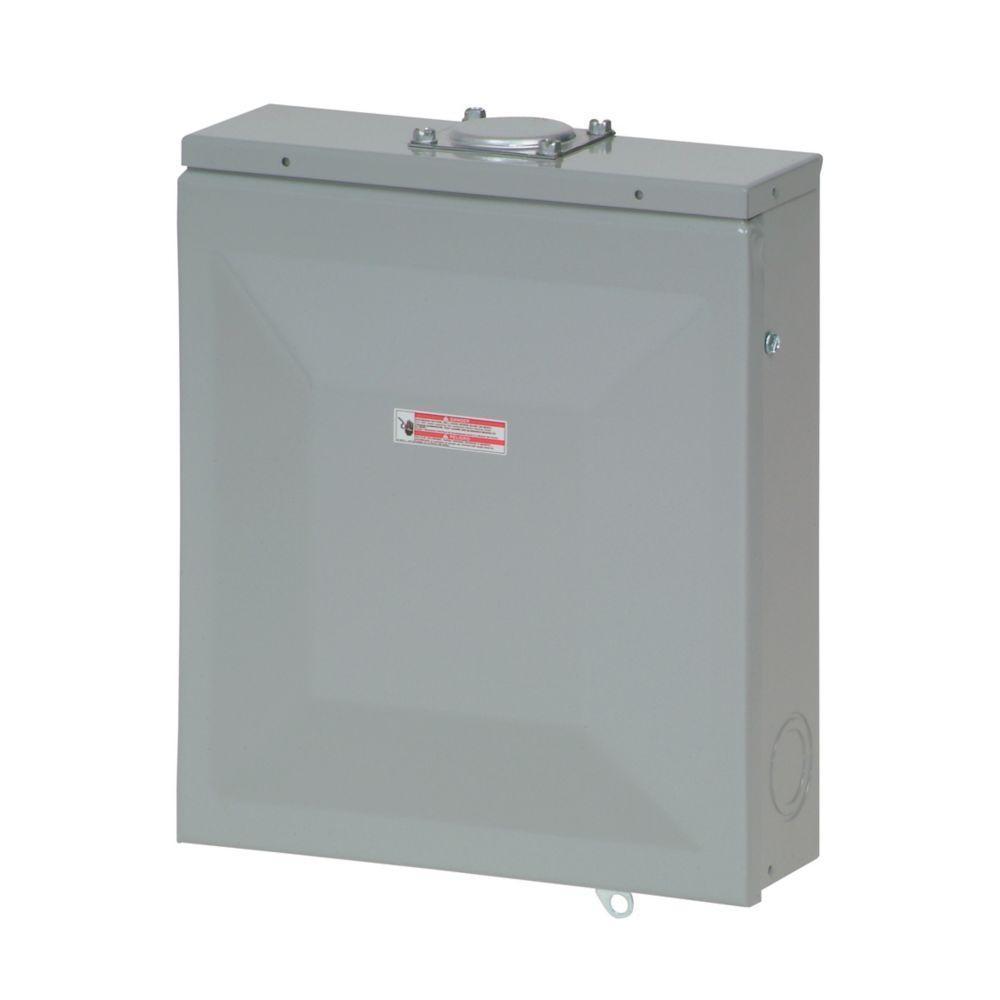

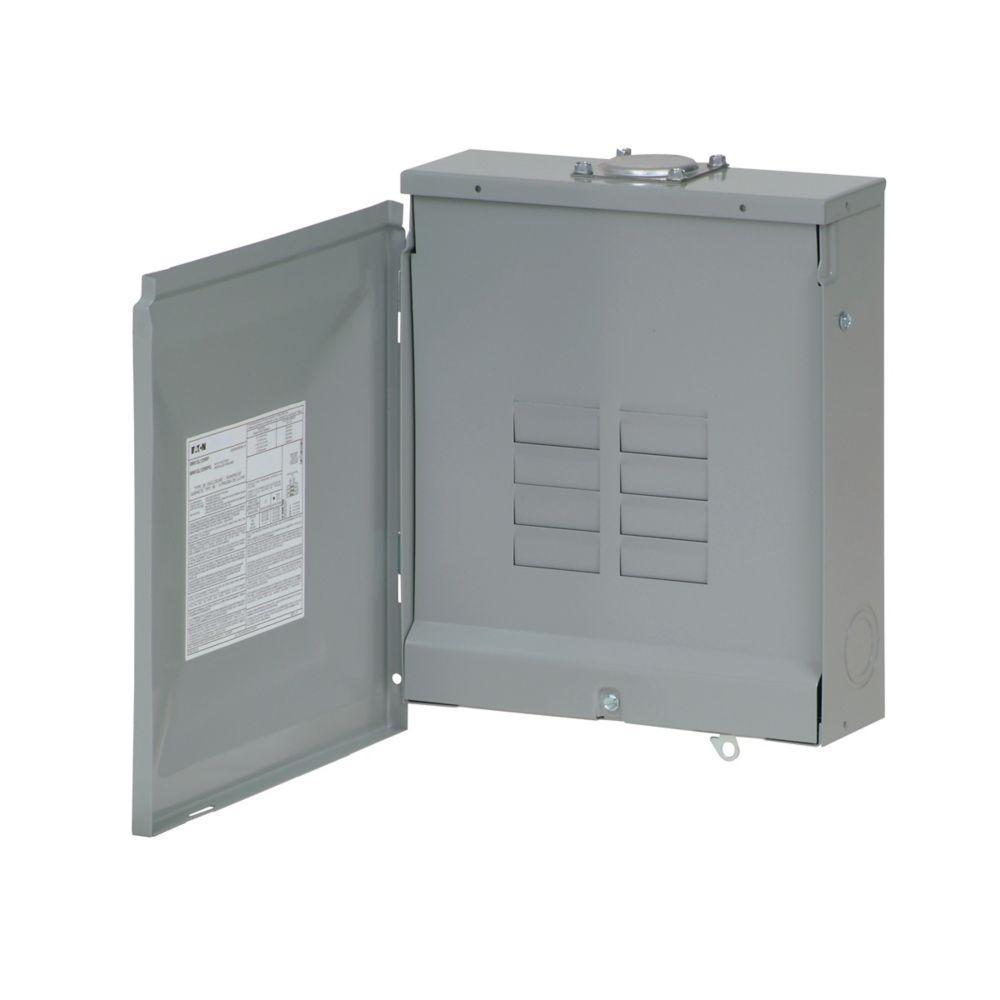

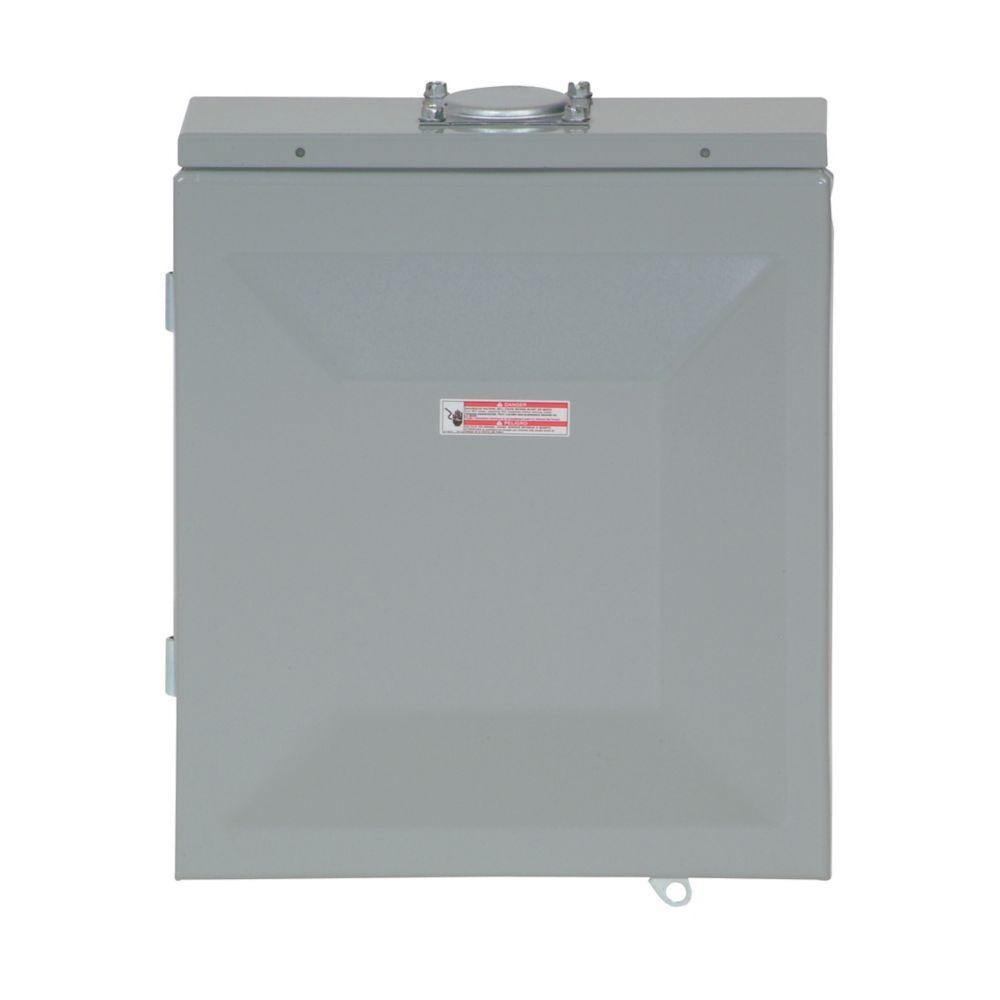

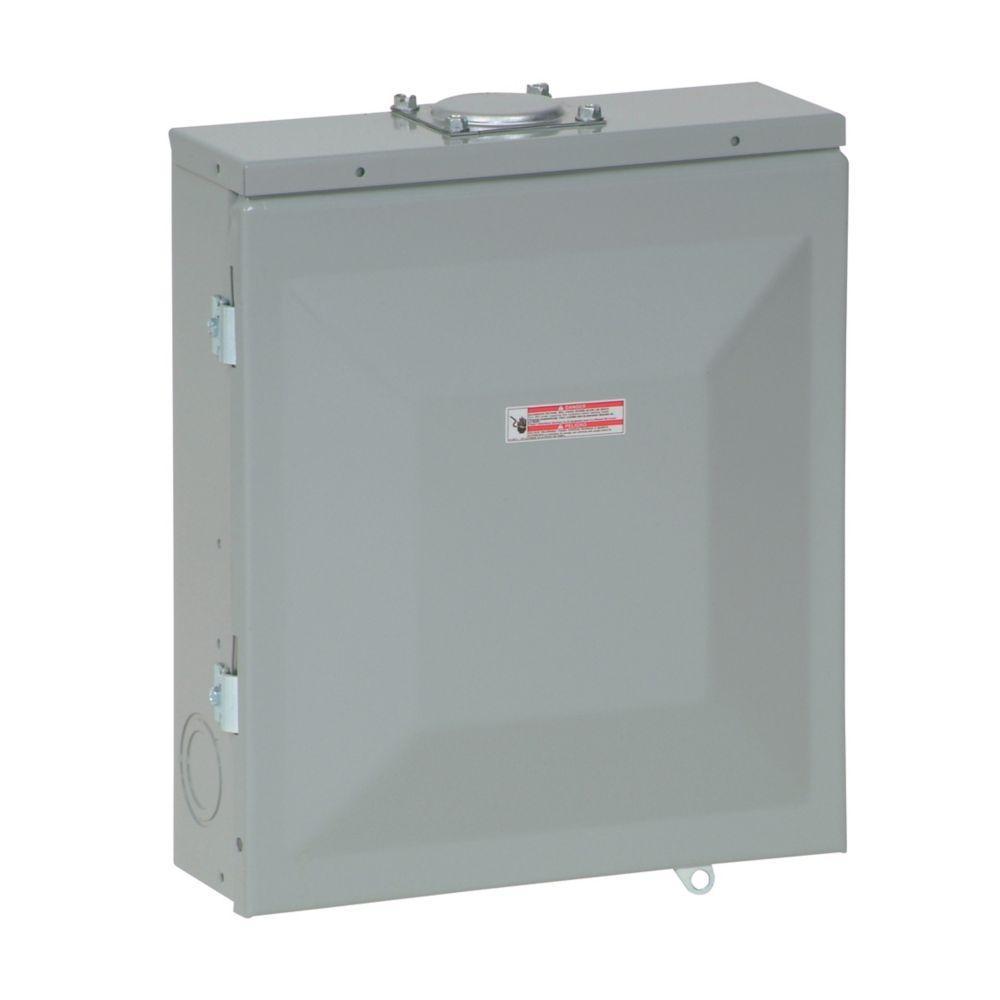

EATON BR612L125RP 1-Phase Main Lug Loadcenter, 120/240 V AC, 125 A, 12 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676001359
-
Manufacturer Part NumberBR612L125RP
-
CountryUSA
-
Type1-Phase
-
Mounting TypeSurface
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits12
-
Wire Size14 to 1 AWG Cu/Al
-
Wiring Configuration3-Wire
-
Number of Poles12
-
Dimensions3.56 in L x 11 in W x 13 in H
-
Number of Spaces6
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA 7R
-
Enclosure TypeNEMA 3R
-
Breaker TypeBR
- Flexible neutral design
- Tangential main knockouts
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- Insulated/bondable split neutral type
- Outdoor rainproof enclosure
- Copper/aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Current design
| Cross-Reference Number |
|---|
| 520546 |
-
Alternative Part Number7431355
-
UNSPSC39121101
-
IDEA Index ID7431355
-
Package DescriptionEACH
-
Standards/ApprovalsUL 67,UL 50
-
Warranty10 years
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
