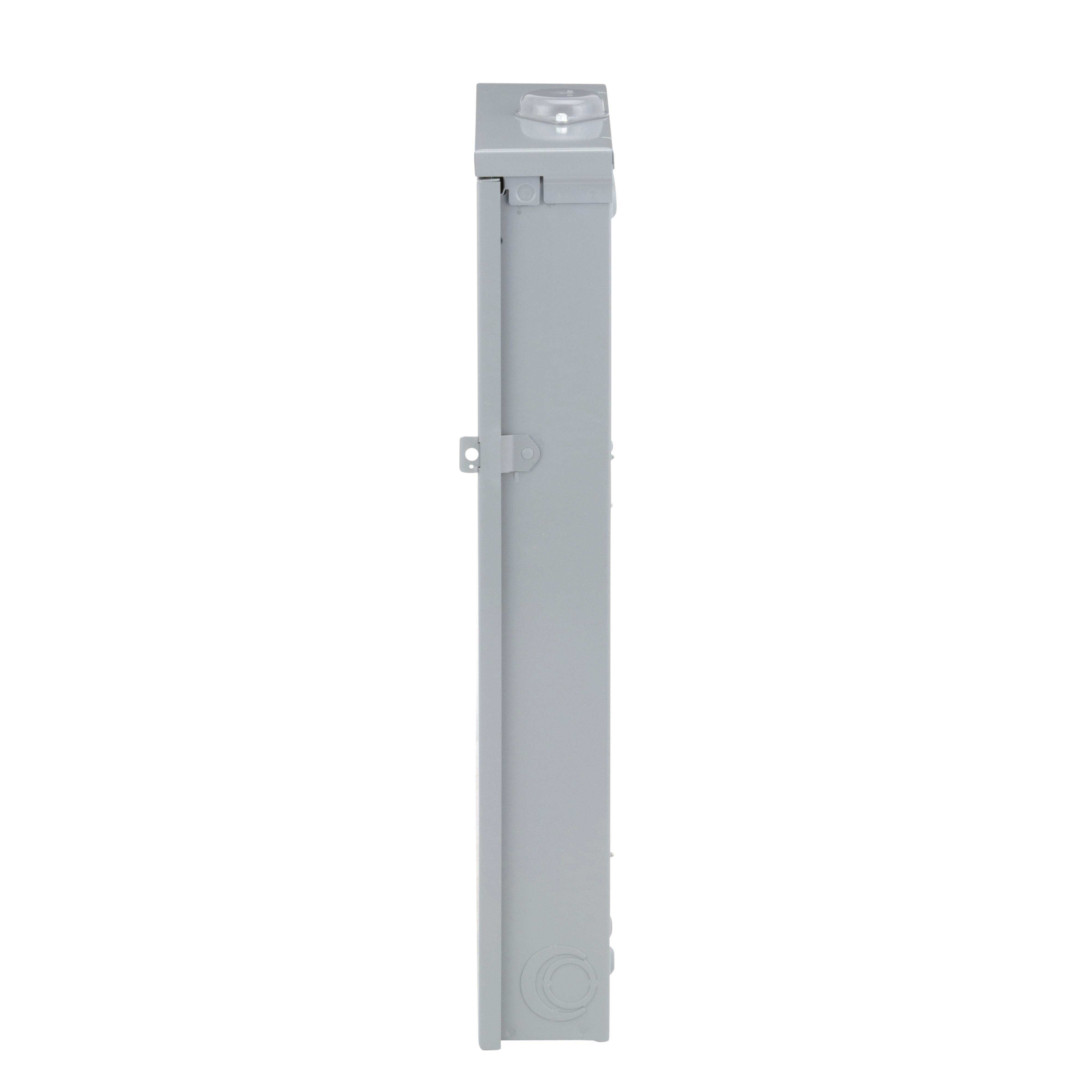

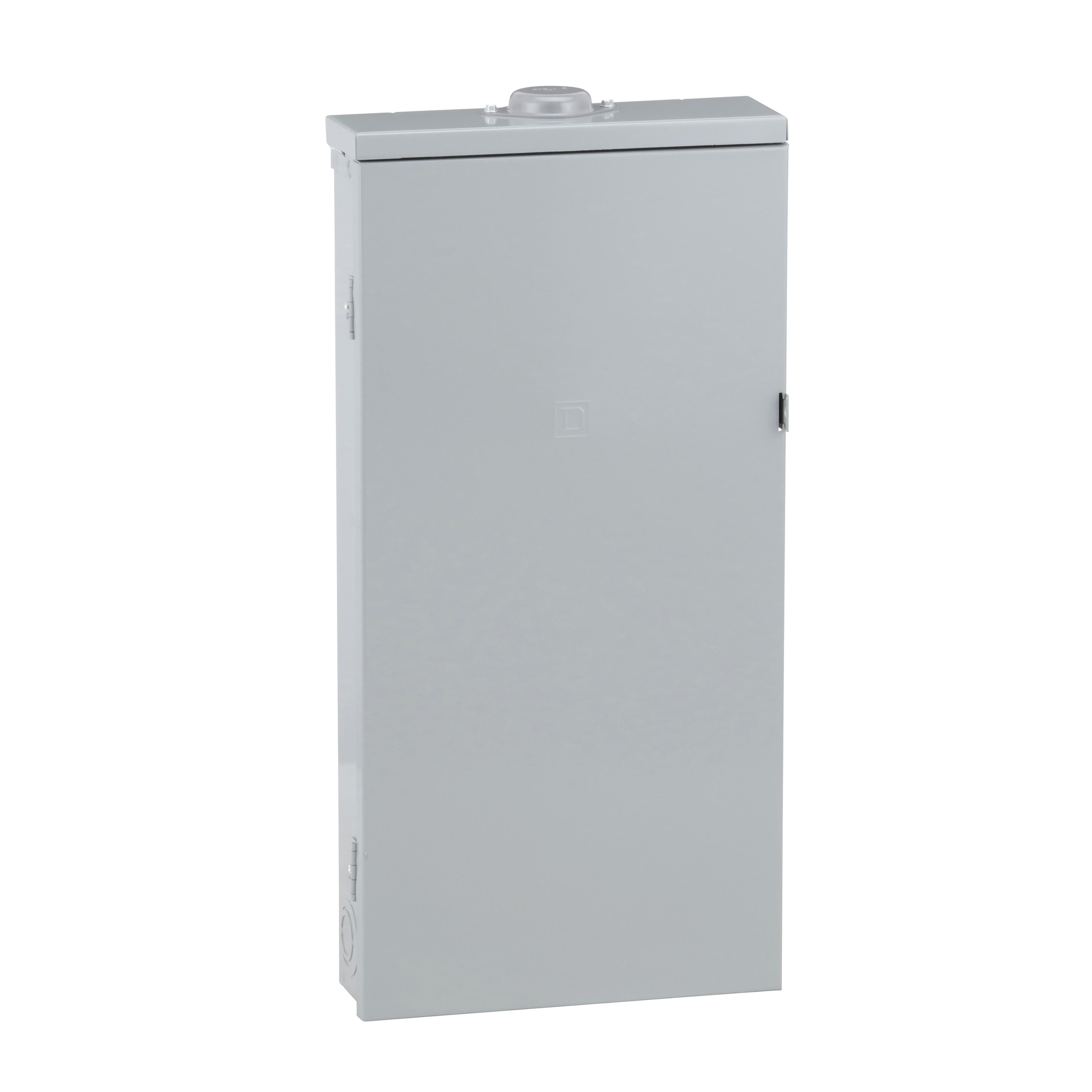

Square D™ Homeline™ HOM816M200PFTRB 1-Phase Convertible Neutral Rainproof Main Breaker Loadcenter, 120/240 V AC, 200 A, 1 Pole, 22 kA Interrupt
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 8 spaces in a NEMA 3R rain proof enclosure. The electrical connections are feed thru lugs. The lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.
-
BrandSquare D™
-
UPC785901973959
-
Manufacturer Part NumberHOM816M200PFTRB
-
CountryUSA
-
Frequency Rating50/60 Hz
-
Type1-Phase Convertible Neutral Rainproof
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating200 A
-
Number of Circuits16
-
Wire Size6 to 1 AWG, 6 to 2/0 AWG, 4 AWG to 250 kcmil
-
Wiring Configuration3-Wire
-
Housing MaterialSteel
-
Number of Poles1
-
Dimensions14.75 in W x 4.52 in D x 29.86 in H
-
Number of Spaces8
-
Interrupt Rating22 kA
-
Enclosure Box Size6R
-
Enclosure TypeNEMA 3R
-
Breaker MountingPanel
-
Breaker TypeHOM
- Fast installation, reliability, and superior circuit protection
- Protects against equipment overloads and short-circuits
- Tin and copper plated aluminum bus bars
- Replacement covers in gray and white
- Distributed neutral bars keeps wiring tidy
- Compatible with Wiser Energy Smart Home Monitor to monitor and manage your energy usage
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating convertible mains panels 180 deg
- Split branch neutral for clutter-free wiring
- Provisions for door lock on convertible mains panel covers
- Lug electrical connection
-
Alternative Part Number12945556
-
UNSPSC39121101
-
IDEA Index ID12945556
-
IncludesFactory Installed Feed-Thru Lugs and Rainproof Cover
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Warranty Information
-
Specification Sheet
