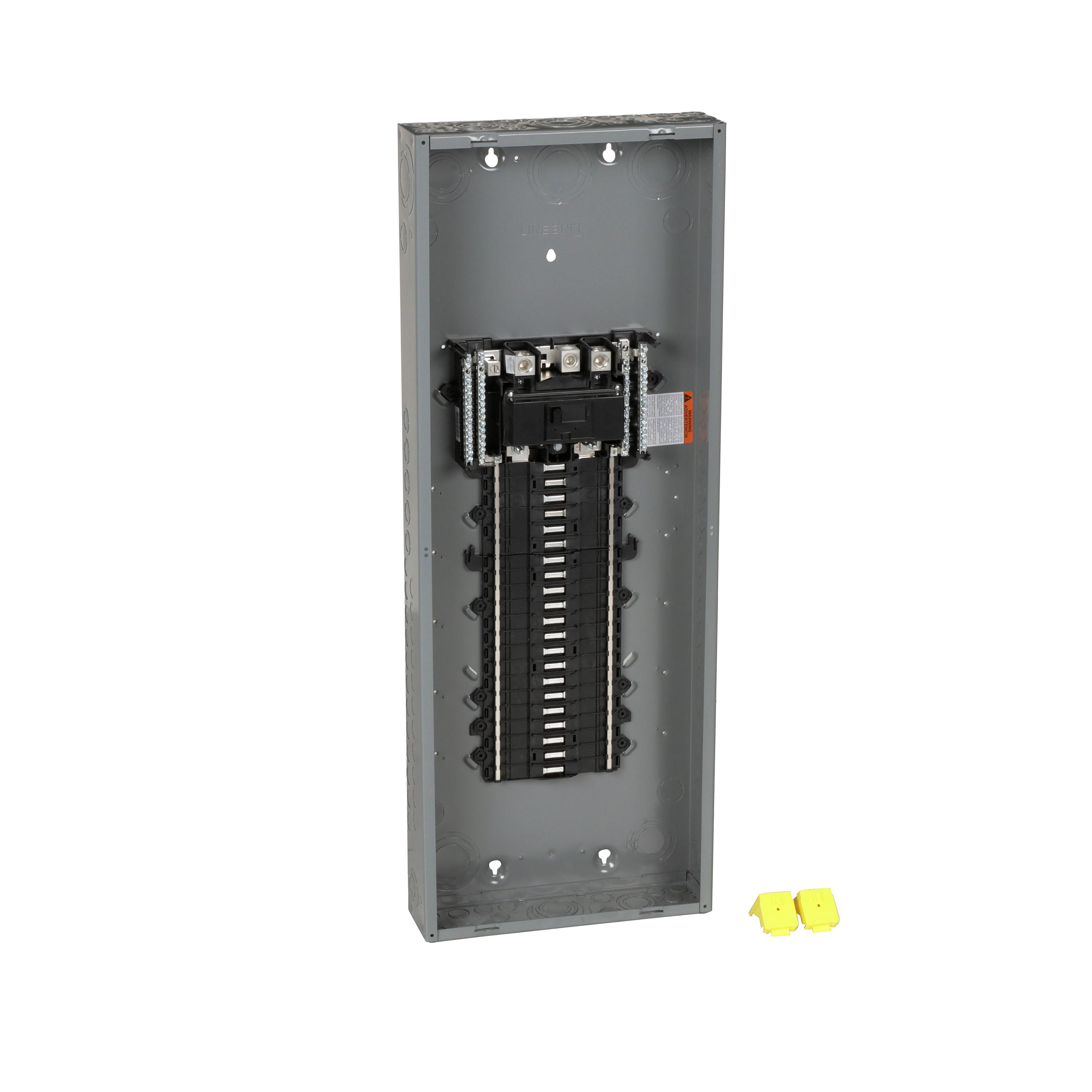

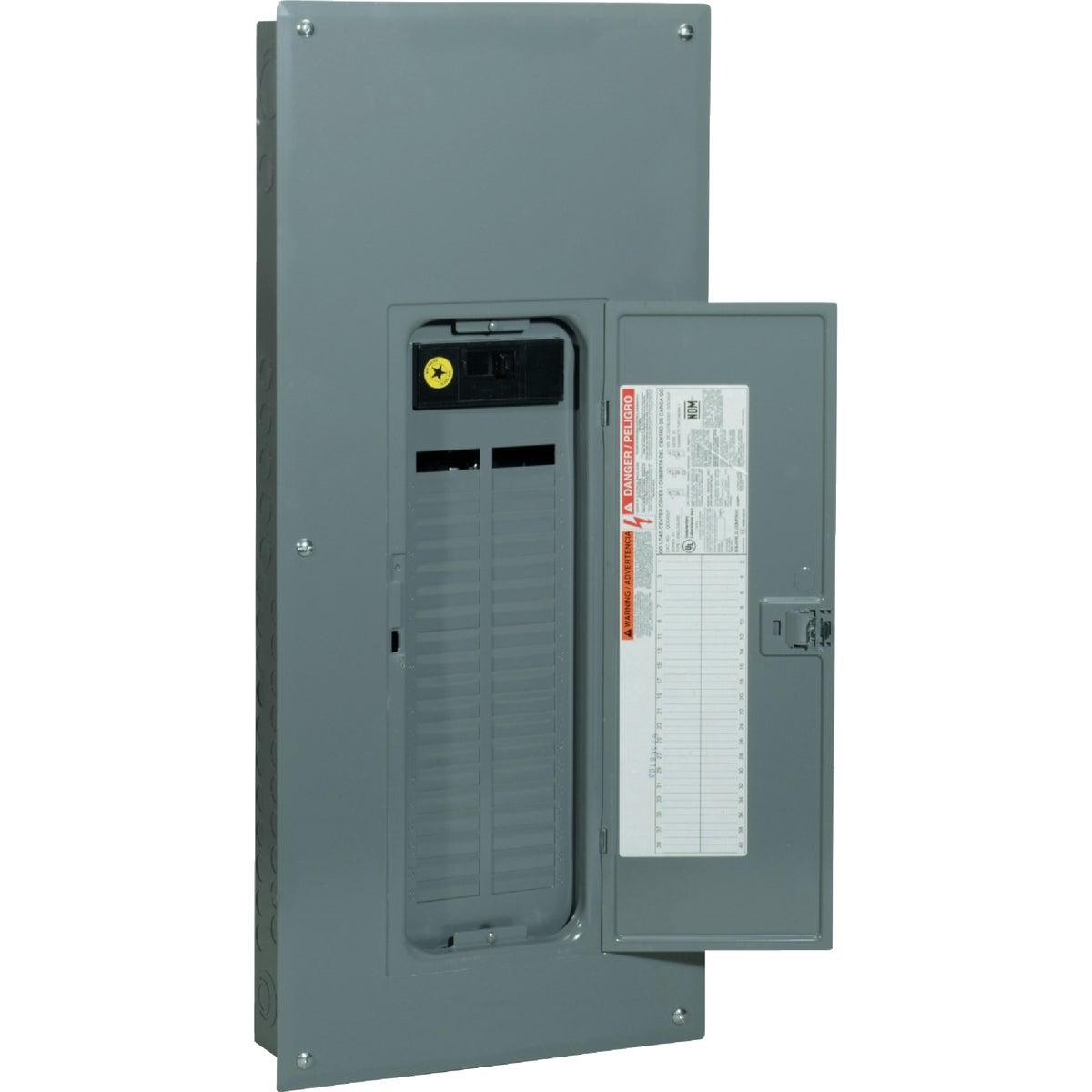

Square D™ QO™ QO142M200PC 1-Phase Convertible Neutral Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 V AC, 200 A, 1 Poles, 22 kA Interrupt
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 42 spaces and 52 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated. QO load center is UL Listed.
-
BrandSquare D™
-
UPC785901986898
-
Manufacturer Part NumberQO142M200PC
-
CountryUSA
-
Frequency Rating50/60 Hz
-
Type1-Phase Convertible Neutral
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating200 A
-
Number of Circuits42
-
Wire Size4 AWG to 250 kcmil Aluminum/Copper
-
Wiring Configuration3-Wire
-
Housing MaterialSheet Steel
-
Number of Poles1
-
Dimensions14.25 in W x 3.75 in D x 37.98 in H
-
Number of Spaces42
-
Interrupt Rating22 kA
-
Enclosure Box Size11
-
Enclosure TypeNEMA 1
-
Breaker MountingPanel
-
Breaker TypeQO
- Provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Faster installation using PoN breakers that connect directly
- 50% more terminations for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Provisions for door lock on convertible mains panel covers
-
Alternative Part Number12945551
-
UNSPSC39121101
-
IDEA Index ID12945551
-
Package DescriptionEACH
-
Standards/ApprovalsBAA Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
WarrantyLimited
-
